|Product Name:||Electrical Steel Utility Poles||Design:||Customized|
|Welding Standard:||AWS (American Welding Society ) D 1.1||Warranty:||15 Years|
|Life Time:||50 Years||Power Capacity:||10kV To 220kV|
metal utility poles,
electrical utility poles

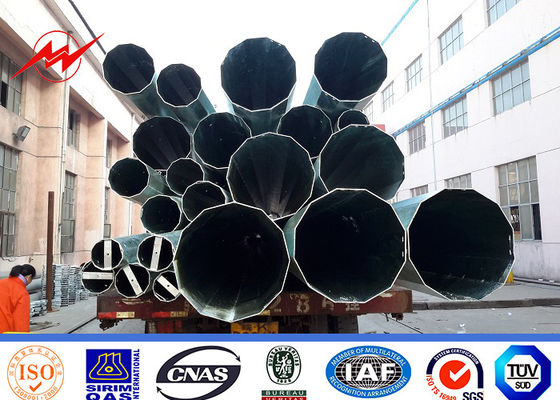

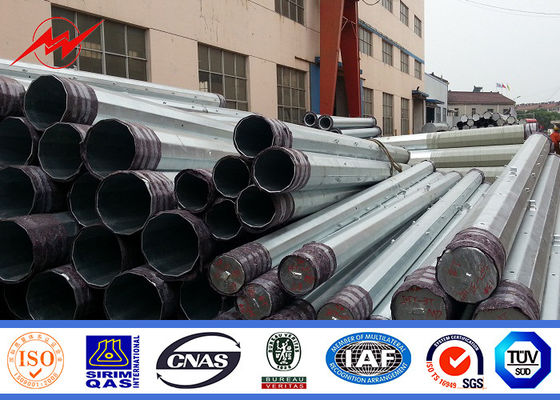

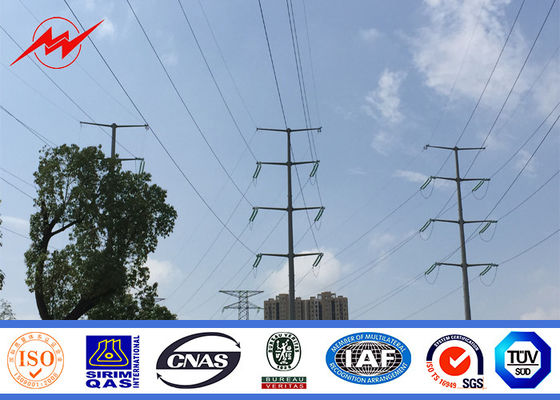

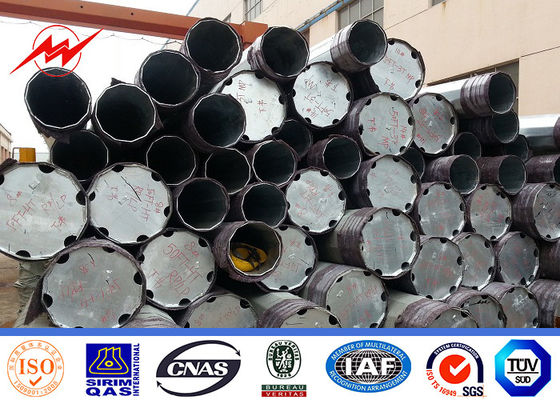

Double Circuit 12M 10KN 12 sides Electrical Steel Utility Poles for Power distribution
|Height||From 9 meter to 100 meter|
|Suit for||Electric Power Transmission and Distribution|
|Shape||Polygonal or Conical|
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400
|Power Capacity||10kV to 220kV|
|Tolerance of the dimension||According to client’s requirement.|
|Surface treatment||Hot dip galvanized Following ASTM A 123, or any other standard by client required.|
|Joint of Poles||Slip joint, flanged connected|
|Length of per section||Within 14 meter once forming|
|Welding Standard||AWS (American Welding Society ) D 1.1|
|Thickness||1 mm to 36mm|
|Production Process||Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages|
|Packages||Packing with plastic paper or according to client’s request.|
The material is in accordance with NF EN 10025
Standard and NF EN 10149 Standard,it has the following property.
-Toughness remains the same under 20 degrees below zero.
-Galvanization is in accordance with NFA35503 Standard Class 1.
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Average thickness of the galvanization:Not less than 86μm.
-Component Length:-25mm to 75mm
-Twisting degree:1°per 3 meters length
-Ovalisation:Maximum is 3%
-The average diameter:+/-0.5%
