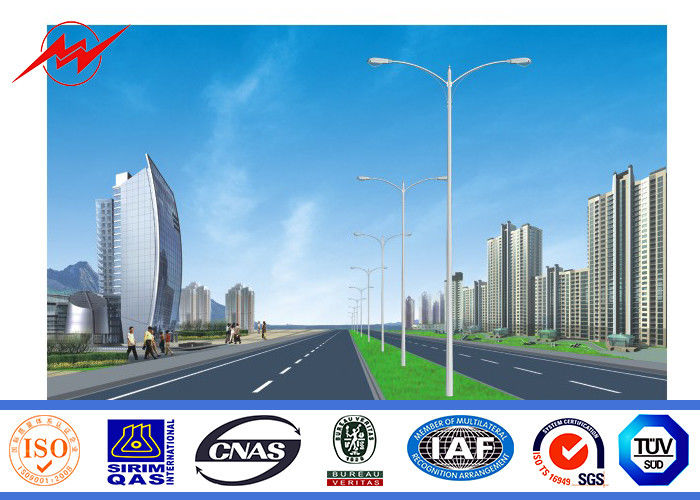

Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm

China Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm supplier
Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm supplier Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm supplier Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm supplier Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm supplier

Large Image :  Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Galvanized Steel Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: Galvanized Steel Pole Wind Speed: 160KM/H
Welding Standard: AWS D 1.1 Material: Q235
Warranty: 15 Years Dimenstion Torlance: +- 2%
High Light:

galvanised steel poles

,

power line pole

 Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm





 Specifications:



Height

From 6 m to 15 m

Suit for

Airport ,seaport,plaza,stadium ,square,highway,
street way etc

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
              Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Optical assembly of lighting fixture

IP 65

Electroshock resistant protective grade

Grade  Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Working atmosphere of lighting fixture

-35 ℃~+45 ℃

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

 Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm 0





 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.



 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 70μm.



 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm



 Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm 1

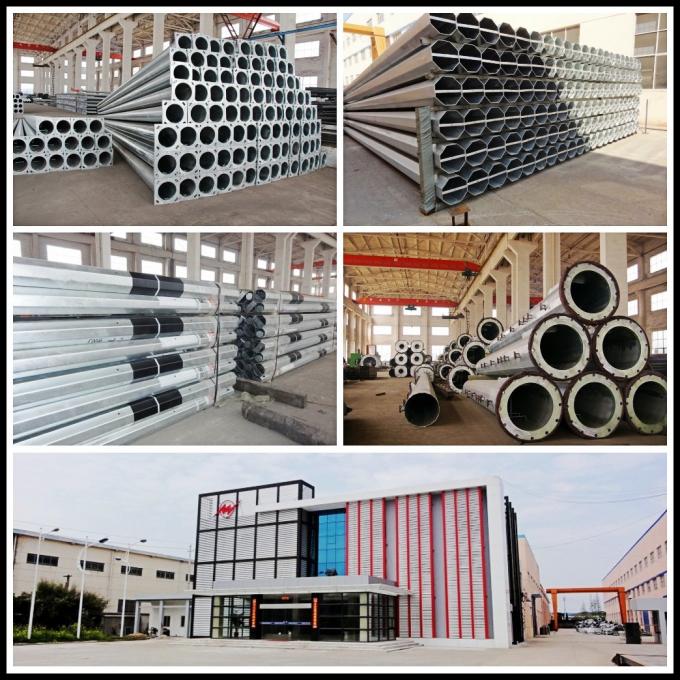

 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.

 Driveway 2.5mm Painting Galvanized Steel Pole One Section with Two Cross Arm 2
