Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line

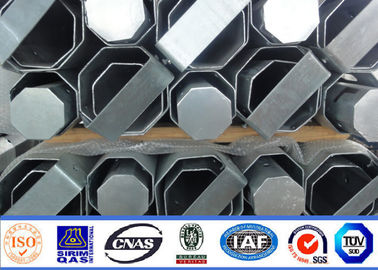

Large Image : Durable 15M 50KN Octagonal Power Transmission Poles For Distribution Line

Product Details:

Place of Origin:	China
Brand Name:	Milky Way
Certification:	ISO9001/BV/
Model Number:	15M 50KN Octagonal Transmission Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity:	one 40HQ
Price:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 2 weeks after confirming
Payment Terms:	L/C, T/T
Supply Ability:	300 pieces pole per day

Contact Now

Detailed Product Description

Name:	15M 50KN Octagonal Transmission Steel Power Pole	Material:	ASTM 572 Grade 50 With Yieled Strength No Less Than 345mpa
Type:	15M 50KN Octagonal Transmission Steel Power Pole	Shape:	Octagonal
Height:	15M	Galvanization Standard:	Hot Dip Glavanized Inaccordance With ASTM A123 With Thickness ≥ 86μm
Thickness:	3mm	Welding Standard:	AWS D1.1 With Penatration Rate No Less Than 80%-100%
Warranty Period:	50 Years	Joint Of Poles:	Overlap / Flange/ Direct Burial
High Light:	octagonal galvanized steel pole , steel octagonal galvanized pole , octagonal steel galvanized light pole

15M 50KN Octagonal Transmission Steel Power Pole For Distribution Line For The Philippines

Specification	15M 50KN Octagonal Transmission Steel Power Pole
Type	15M 50KN Octagonal Transmission Steel Power Pole
Shape	Octagonal
Material	ASTM 572 grade 50 with yield strength not less than 345mpa
Torlance of dimenstion	-0.02
Design Load in Kg	300~ 1000 Kg appliced to 50cm from the to pole
Surface treatment	Hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm
Standard	Octagonal Conical tapered column Certified by SIRIM QAS INTERNATIONAL. Approved by JABATAN KERJA RAYA MALAYSIA. Conforms to Standard: Pole design : BS EN 40 Material : BS EN 10025 S275 / JIS G3101 SS400 Welding : BS 5135 Galvanizing : BS 729 / ISO 1461 ASTM A 123
Length of per section	Within 15m once forming without slip joint.
Option of steel power pole	Height from 8m to 35m Flange mounted or planted type
Production Process of high mast pole	Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr→Galvanization or powder coating ,painting →Recalibration→Thread →Packages
The products made by us is high resisitivity against heat ,humidity ,moisture,water etc. Owning to use the rare earth special craft during the productionprocess, to ensure its high precise, good quality and competitive advantage.Meanwhile, we can accept the product type damage test to ensure the highsafe factor of our products. Because of good quality and competitive pricecaused by innovation and management reform, experienced service infabrication ,design, installment, consultancy, we have built long-term relationship with many countries, such as America ,Morocco,Sir Lanka ,Russia, Jordan,Guyana,Nigeria, Australia, Spain, Indonesia, Singapore, the Philippines, Kenya,Areb etc.
