Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife

China Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife supplier
Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife supplier Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife supplier Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife supplier Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife supplier Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife supplier

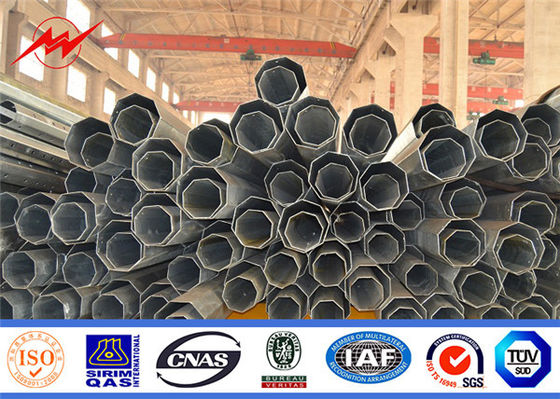

Large Image :  Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Electric Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: 69KV Q345 NEA Standard Galvanized Electrical Steel Power Poles Power: 69KV
Material: GR50 Surface Treatment: Hot Dip Galvanization
Welding Standard: AWS D 1.1 Wind Speed: 30m/s
High Light:

30m/s tubular steel pole

,

tubular steel pole 69kv

,

BV tubular pole

Electric lattice masts steel pole Galvanized Power transmission line Electrical Steel Tubular Tower Pole



 Specifications:

Types

Length

45ft 50ft 55ft 60ft 65ft 70ft
13.75m 15.25m 16.80m 18.30m 19.85m 21.35m
B ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 345 370 395 415 435 455
Thickness (mm) 6 6 6 6 6 6
E ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 545 585 625 660 700 740
Thickness (mm) 6 6 6 6 6 6
C ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 600 645 690 730 770 805
Thickness (mm) 6 6 6 6 6 6
D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 680 730 725 765 755 790
Thickness (mm) 6 6 7 7 8 8
HS ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 340 360 385 400 420 440
Thickness (mm) 6 6 6 6 6 6
HT ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 485 520 550 580 615 645
Thickness (mm) 6 6 6 6 6 6
3T ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 520 540 565 595 615 640
Thickness (mm) 6 6 6 6 6 6
3D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 585 620 650 680 715 765
Thickness (mm) 6 6 6 6 6 6





 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

 Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife 0

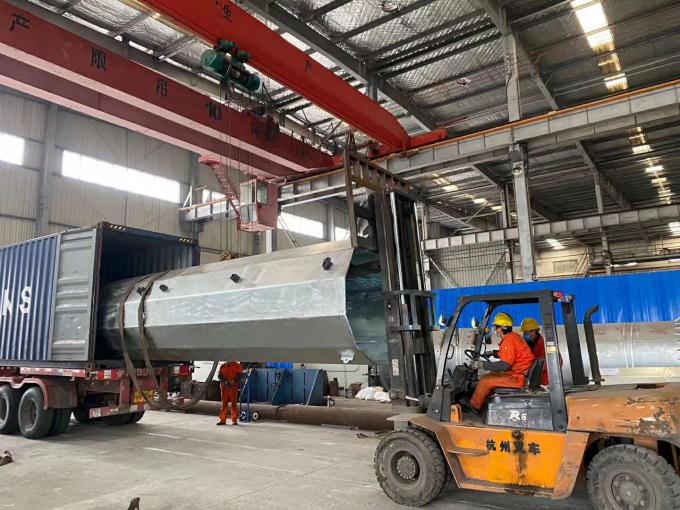

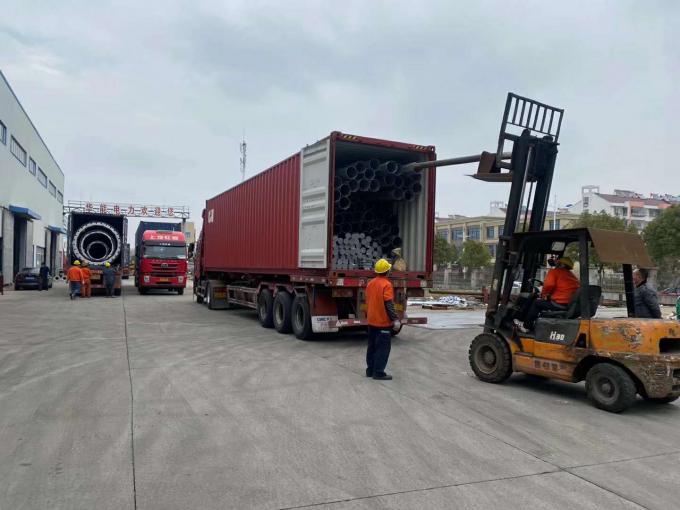

 Packaging & Shipping

 Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the  poles to avoide the damage on the galvanization of the pole ,anyway also can following by client  required , The loading capacity of 40HC or OT an be calulated calculation base on the client  actually specification and data.

 Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife 1



 FAQ:

 1. Price Term: EXW, FOB, CFR or CIF.
 The price includes pole shaft, base plate, cross arm and anchor part.
 Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you  need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
 2. MOQ: 1 sets for Customized
 3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other  payment way can be negotiated.
 4. Delivery time : goods can be ready for shipment within 10 workdays after receiving deposit.
 5. Warranty : 30 years
 6.Surface treatment :hot dip galvanization

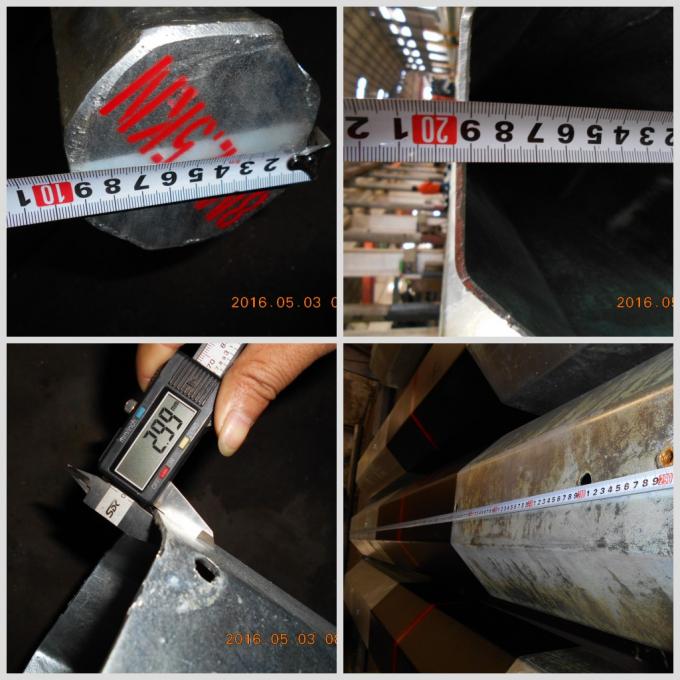

 Test:

 Before the loading,we can do the tensil test according to the customer's requirements.

 Electric Lattice Masts 30m/S Tubular Steel Pole 69kv Longlife 2
