Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line

China Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line supplier
Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line supplier Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line supplier Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line supplier Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line supplier Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line supplier

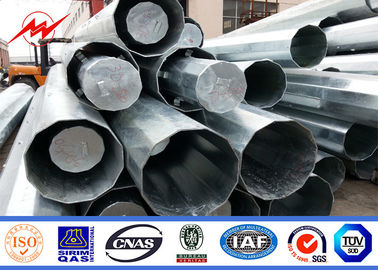

Large Image :  Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Power Pole Application: Power Distribution
Material: Gr65 Minimum Yield Strength: 460 Mpa
Max Ultimate Tensile Strength: 620 Mpa Wall Thickness: 1mm-36mm



Electric lattice masts steel pole Galvanized Power transmission line Electrical Steel Tubular Tower Pole





Specifications:

Types

Length

45ft 50ft 55ft 60ft 65ft 70ft
13.75m 15.25m 16.80m 18.30m 19.85m 21.35m
B ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 345 370 395 415 435 455
Thickness (mm) 6 6 6 6 6 6
E ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 545 585 625 660 700 740
Thickness (mm) 6 6 6 6 6 6
C ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 600 645 690 730 770 805
Thickness (mm) 6 6 6 6 6 6
D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 680 730 725 765 755 790
Thickness (mm) 6 6 7 7 8 8
HS ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 340 360 385 400 420 440
Thickness (mm) 6 6 6 6 6 6
HT ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 485 520 550 580 615 645
Thickness (mm) 6 6 6 6 6 6
3T ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 520 540 565 595 615 640
Thickness (mm) 6 6 6 6 6 6
3D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 585 620 650 680 715 765
Thickness (mm) 6 6 6 6 6 6





 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

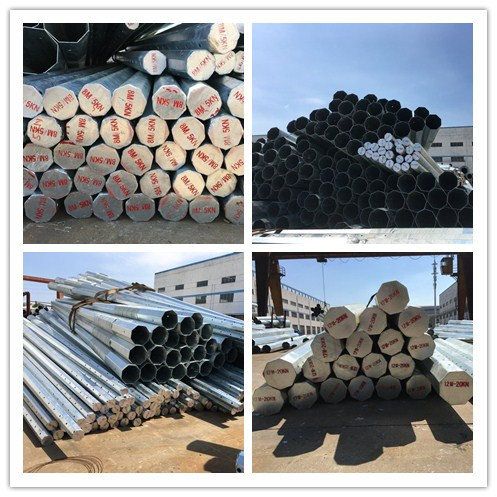

 Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line 0





 Our Service:

 1. Reply your inquiry in 24 working hours.

 2. Experienced staffs answer all your questions in fluent English.

 3. Customized design is available. UEM&UBM are welcomed.

 4. Exclusive and unique solution can be provided to our customer by our well-trained and professional  engineers and  staff.

 5. Special discount and protection of sales are provided to our distributor.

 6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles for more  than 20 years,  competitive with good quantity.

 7 Sample: We can send out sample for test in one week if the order quantity is big enough. But the  shipment charges is  sually paid by your side, the charges will be rebounded when we have formal order.

 8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to  ensure our  products to be finished in high quality and stable feature. Welcome to contact us or visit our  company.

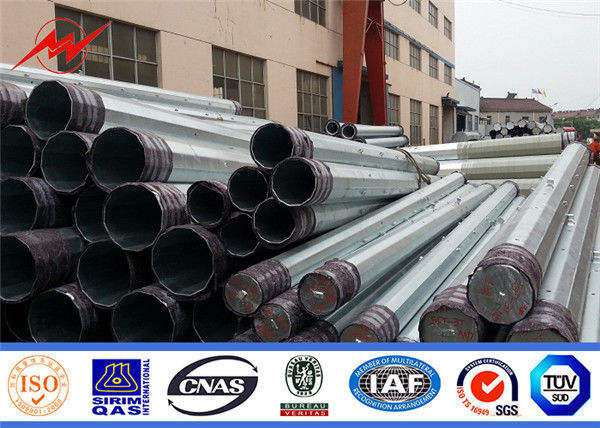

 Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line 1

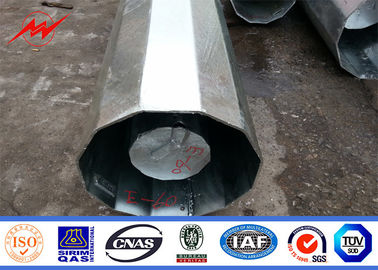

 Electric Lattice Masts Galvanized Residential Power Pole For Transmission Line 2
