Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole

China Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole supplier
Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole supplier Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole supplier Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole supplier Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole supplier Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole supplier

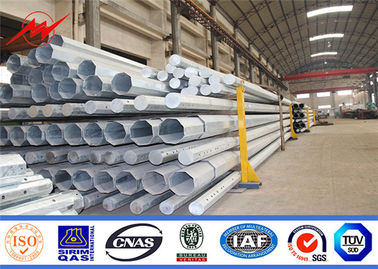

Large Image :  Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Electric Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Electric Power Pole Application: Power Transmission
Surface Treatment: HDG Powder Coating Welding Standard: AWS D 1.1
Galvanization Standard: ASTM A 123 Standard: ISO

Electric steel pole Concrete Power Transmission Poles Spun Prestressed Concrete Pole





 Specification:



Material:

Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50

Pole’s height

3m –15m

length

Within 16m once forming without slip joint

Wall thickness

2.3mm-30mm

Pole's Shape:

Round, Polygonal, Octagonal, Taper round, Round conical, Square

Arm type:

Single arm, Double arm, Tri-arm, Four-arm

Application:

Outdoor illumination, Road illumination, Street illumination

welding

It has past flaw testing, internal and external double welding makes the

welding beautiful in shape. It confirms with the international welding

standard of CWB.

Galvanizing

Hot dip galvanization with thickness of 80-100µm average

 in accordance with Chinese standardGB/T 13912-2002 or

American standard ASTM A123, IS: 2626-1985.

Painting color:

Refer to client’s requirement and then according to (RAL)Color card

Finishing 1:

Black pole, Rough pole

Finishing 2:

Hot dip Galvanizing antirust.

Finishing 3:

HDG. with powder coating

Temperature range

-35 °C~+45 °C

Max wind velocity

Aganist wind pressure of 160Km/h

Base plate mounted

Base plate is square, octagonal or round in shape with

slotted holes for anchor bolt and dimension as per customer’s requirement.

Ground mounted

The length buried underground as per customer’s requirement.

Quality Control

We are well equipped with superior production equipments,

solid technical strength, excellent managing mode and quality control system,

perfect after service. We have passed the ISO9001:2008 Quality

Systems Authentication.

Certificates

ISO9001-2008, SGS  Audited Supplier, The AAA grade certificate of goodwill

Other

Less land occupation & easy maintenance.




 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

 Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole



  The information to inquiry or purchase
 -Steel pole height
 -Dimension of the flange
 -Position and dimension of the service door
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Wind speed
 -Destination port
 -Other.

 Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole



 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt
 -Bitumen protection
 -Painted marking
 -Removable ladder

 Electric Steel Concrete Power Transmission Poles , Spun Prestressed Concrete Pole
