Electrical Galvanized Utility Power Poles For Transmission And Distribution

China Electrical Galvanized Utility Power Poles For Transmission And Distribution supplier
Electrical Galvanized Utility Power Poles For Transmission And Distribution supplier Electrical Galvanized Utility Power Poles For Transmission And Distribution supplier Electrical Galvanized Utility Power Poles For Transmission And Distribution supplier Electrical Galvanized Utility Power Poles For Transmission And Distribution supplier Electrical Galvanized Utility Power Poles For Transmission And Distribution supplier

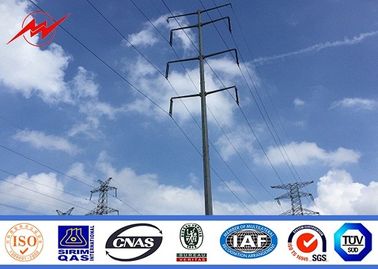

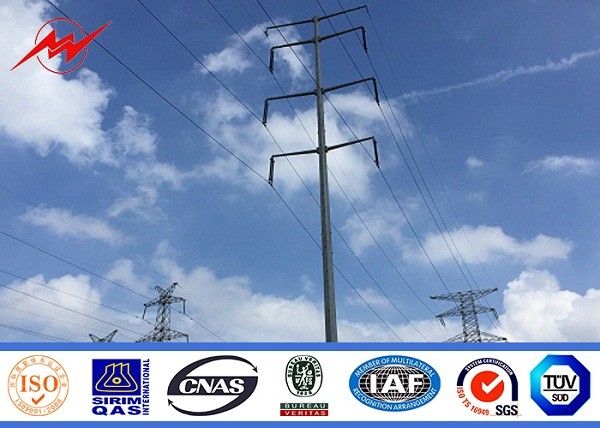

Large Image :  Electrical Galvanized Utility Power Poles For Transmission And Distribution

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Electrical Steel Utility Poles

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Electrical Steel Utility Poles Application: Electrical Power Transmission
Thickness: 1 Mm To 36mm Power Capacity: 10kV To 220kV
Surface Treatment: Galvanization Dimenstion Torlance: +- 2%

Electrical Galvanized Utility Power Poles For Transmission And Distribution

 Specifications:



Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as

per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data



 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

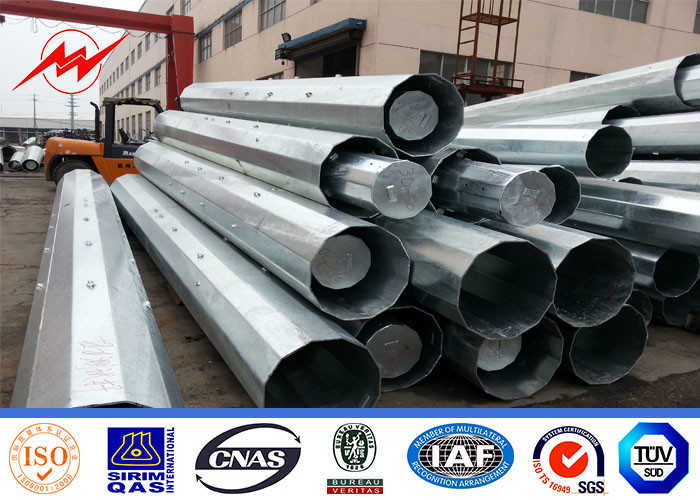

 Electrical Galvanized Utility Power Poles For Transmission And Distribution





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

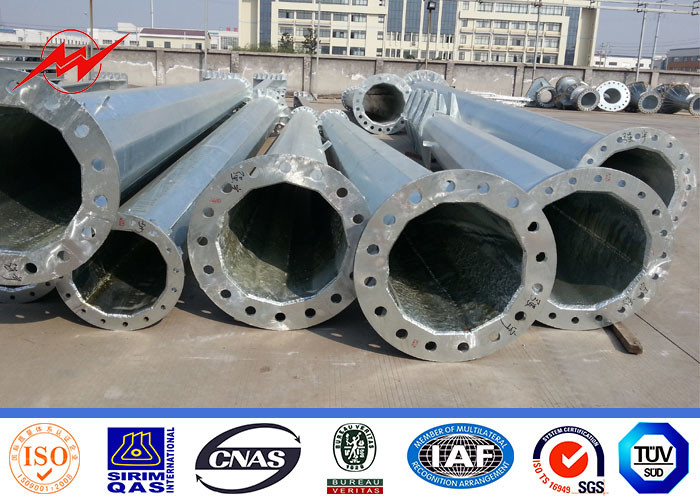

 Electrical Galvanized Utility Power Poles For Transmission And Distribution





 More Pictures:

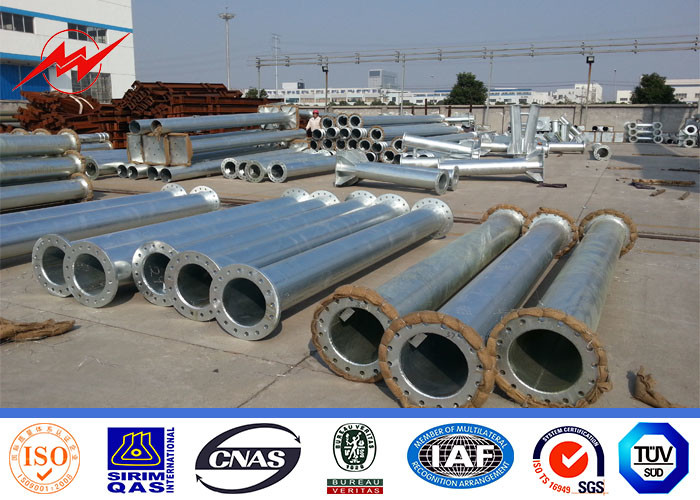

 Electrical Galvanized Utility Power Poles For Transmission And Distribution





 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

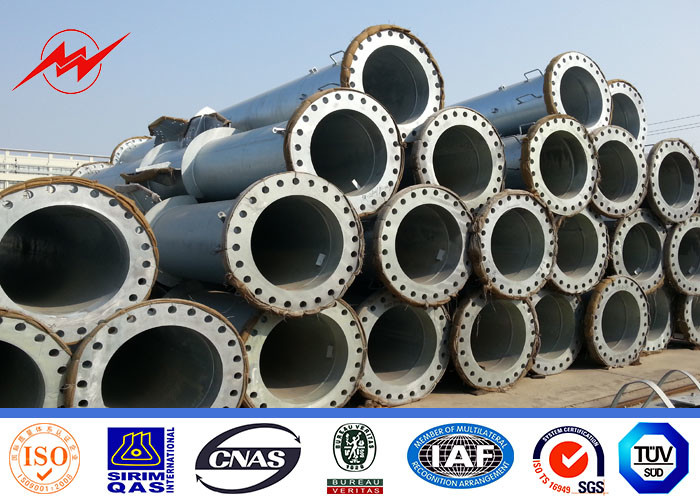

 Electrical Galvanized Utility Power Poles For Transmission And Distribution

Electrical Galvanized Utility Power Poles For Transmission And Distribution
