Electrical Power Transmission Metal Utility Poles Slip Joint 14m 400daN

China Electrical Power Transmission Metal Utility Poles Slip Joint 14m 400daN supplier
Electrical Power Transmission Metal Utility Poles Slip Joint 14m 400daN supplier Electrical Power Transmission Metal Utility Poles Slip Joint 14m 400daN supplier Electrical Power Transmission Metal Utility Poles Slip Joint 14m 400daN supplier Electrical Power Transmission Metal Utility Poles Slip Joint 14m 400daN supplier

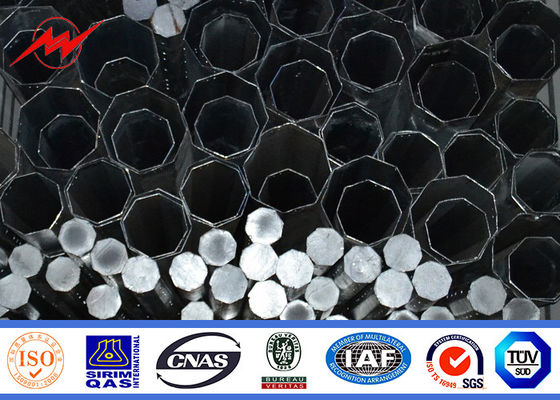

Large Image :  Electrical Power Transmission Metal Utility Poles Slip Joint 14m 400daN

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Utility Pole Application: Electrical Power Transmission
Standard: ISO9001-2008 Welding Standard: AWSD 1.1
Surface Treatment: Galvanization Warranty: 15 Years
High Light:

metal utility poles

,

electric telescoping pole

 Slip Joint 14m 400daN Steel Utility Poles for Electrical Distribition with Cross Arm





 Specifications:



series Outside Diametar Wall Thicness Plain and Tubes
mm Min. mm /SWG Kg./M Mtrs./Ton
15 L 21.3 2 0.947 1058
      M 2.6 1.21 826
      H 3.2 1.44 694
20 L 26.9 2.3 1.38 725
      M 2.6 1.56 641
      H 3.2 1.87 535
25 L 33.7 2.6 1.98 505
      M 3.2 2.41 415
      H 4 2.93 341
32 L 42.4 2.6 2.54 394
      M 3.2 3.1 323
      H 4 3.79 264
40 L 48.3 2.9 3.23 310
      M 3.2 3.56 281
      H 4 4.37 229
50 L 60.3 2.9 4.08 245
      M 3.6 5.03 199
      H 4.5 6.19 162
65 L 76.1 3.2 5.71 175
      M 3.6 6.42 156
      H 4.5 7.93 126
80 L 88.9 3.2 6.72 149
      M 4 8.36 120
      H 4.8 9.9 101
90 L 101.6 3.6 8.7 115
      M 4 9.63 144
      H 4.8 11.5 87
100 L 114.3 3.6 9.75 103
       M 4.5 12.2 82
      H 5.4 14.5 69
110 L 127 4.5 13.6 74
       M 4.8 14.5 69
      H 5.4 16.2 62
125 L 139.7 4.5 15 67
       M 4.8 15.9 63
      H 5.4 17.9 56
135 L 152.4 4.5 16.4 61
       M 4.8 17.5 57
      H 5.4 19.6 51
150 L 165.1 4.5 17.8 56
       M 4.8 18.9 52
      H 5.4 21.3 47
150 L 168.3 4.5 18.2 55
       M 4.8 19.4 52
      H1 5.4 21.7 46
      H2 6.3 25.2 40





 Description:
 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.

 Electrical Power Transmission Metal Utility Poles Slip Joint 14m 400daN 0





 Welding

 Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, internal and  external double welding makes the welding beautiful in shape. It confirms with the international welding  standard of CWB and AWS D 1.1

 Electrical Power Transmission Metal Utility Poles Slip Joint 14m 400daN 1





 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

 Electrical Power Transmission Metal Utility Poles Slip Joint 14m 400daN 2



 Design: We have our standard pole with our design, OEM and ODM is also accpetable
 Packages: Standard seaworthy
 Delivery time: with two weeks after confirm the order.
