Electrical Tubular Steel Pole Self Supporting Metal Utility Poles For Transmission Line

China Electrical Tubular Steel Pole Self Supporting Metal Utility Poles For Transmission Line supplier

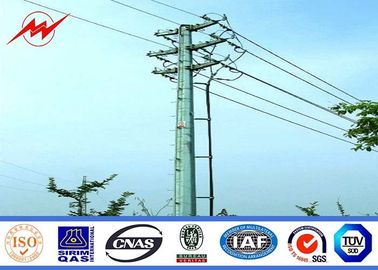

Large Image :  Electrical Tubular Steel Pole Self Supporting Metal Utility Poles For Transmission Line

Product Details:

Place of Origin: China,Jiangsu
Certification: ISO9001/BV/
Model Number: Steel Tubular Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Brand Name: MilkyWay Welding: AWS D1.1
Material: Q345 Delivery: 20-30 Days
Supply Ability:: 2000pcs Per Week Tolerance: +/-2%
High Light:

floodlight pole

,

commercial light poles

169kv Electrical Steel Tubular Pole Self Supporting / Metal Utility Poles for Transmission line





Type

Straight Pole ,Tensile Pole ,Turn Pole

Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2

                Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,

SS400, SS490, to ST52-

Lamp power

20 W- 400 W  (HPS/MH)

220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per

customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,color polyester

power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes

the welding beautiful in shape Welding Standard :AWS ( American

Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending →Welidng

(longitudinal )→Dimension verify →Flange welding →Hole drilling

→Calibration → Deburr→Galvanization or powder coating ,painting

→Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,

anyway also can following by client required , each 40HC

or OT can loading how many pcs will calculation base on the client

actually specification and data.








Description:



Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.



We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.



Electrical Tubular Steel Pole Self Supporting Metal Utility Poles For Transmission Line 0



Our Servises:



1  Reply your inquiry in 24 working hours.



2  Experienced staffs answer all your questions in fluent English.



3  Customized design is available. UEM&UBM are welcomed.



4  Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.





if you have any question or need additional information ,pls feel free to contact me !
