Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

China Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole supplier
Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole supplier Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole supplier Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole supplier Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole supplier

Large Image :  Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

Product Details:

Place of Origin: JIANGSU,CHINA
Brand Name: milky way
Certification: iso9001:2008
Model Number: white coating

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD 100-1000/POLE
Packaging Details: The normal package is container(Size: L*W*H). Our poles as normal cover by Mat or straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of the pole , anyway also can following by client required , The lo
Delivery Time: 20 WORKS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 POLES PER WEEK
Contact Now
Detailed Product Description
HEIGHT: CUSTOMIZAD COLOR: WHITE COATING
THICKNESS: 1MM-30MM TREATMENT SURFACE: HOT DIP GALVANIZATION
CERFIFITION: ISO9001:2008 APPLICATION: STREET LIGHTING
PLACE OF ORIGIN: JIANGSU YIXING WELDING: AWS D1.1

Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole





our company



Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

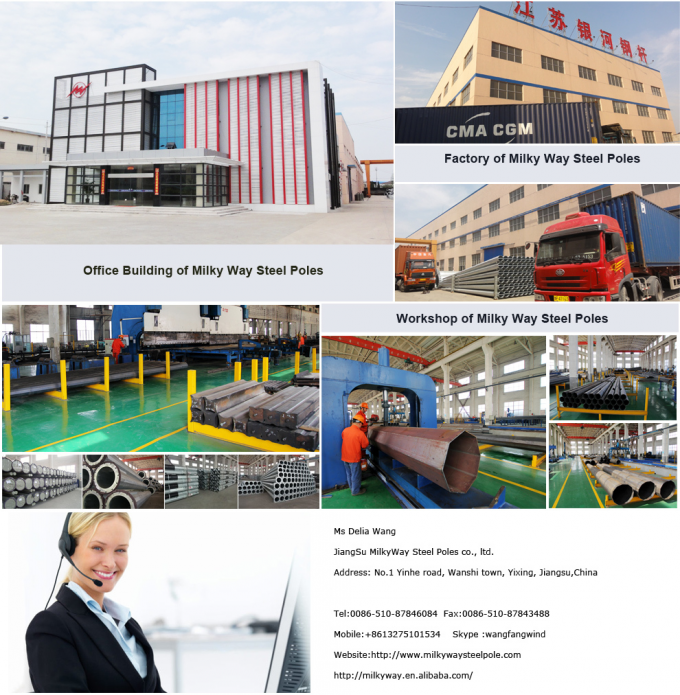

Jiangsu Milky Way Steel Poles Co.,Ltd.

Estabilshed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi ,East of China ,near one of the largest sea port of China ,Shanghai ,Port .
Our Products have been widely used in the power transmission ,signal transmission and lighting for street ,road ,square ,palaestra . and so on
We have plenty of export experience . Since our first overseas order from Pakistan in 1991 of 132 KV transmission poles ,our products have been deliveried to more than 70 countries and areas ,including America ,Australia ,Russia ,Genmery ,Span, Philippines ,Malaysia and so on
As an BV ,ISO ,SGS approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .



OVERSEAS PROJECT
COUNTRY UTILITY VOLTAGE LEVEL TYPE YEARS OF SUPPLY
PHILIPPINES NEA,NGCP 69KV 25FT-100FT,AS PER CUSTOMS’ REQUIREMENT EVERY YEAR
GHANA GHANA ELERCITY COMPANG   10m,11m 2015
PAKISTAN WAPDA 132KV SPA,APD,SPG 2013
SAUDI ARABIC SAUDI ELECTRICITY COMPANY   10M ELECTRIC POLE 2011
ECUADOR CELEC 138KV PB-B40 2009
MORE PROJECT ,PLEASE VISIT OUR WEBSITE OR CONTACT WITH SALES.









product and project

Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

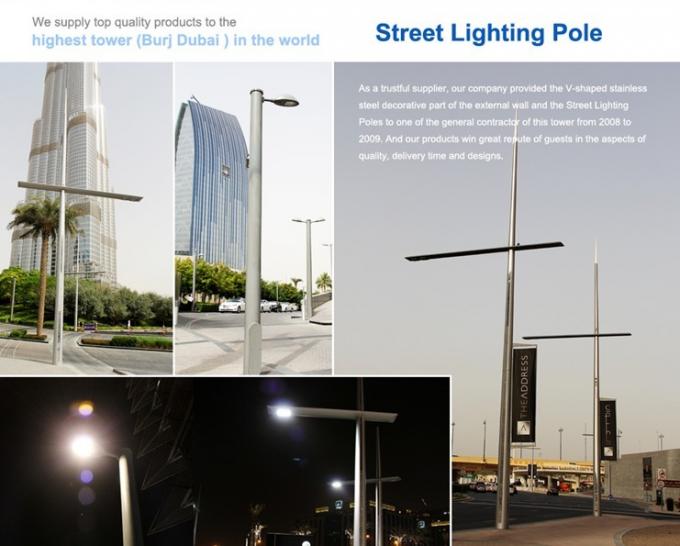

    As a trustful supplier ,our company provide the v-shaped stainless steel decorative part of the external wall and the street lightning poles to one of general contractor of this tower from 2008 to 2009.and our products with good results of guest in the aspects of quality ,delivery time and designs.



Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel PoleFamous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel PoleFamous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

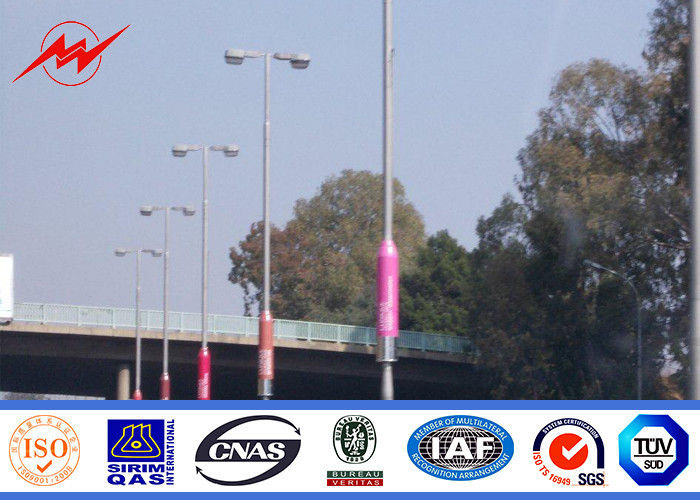

Suit for   highway ,street way etc
Shape

Conoid ,Multi-pyramidal, Columniform , polygonal or conical



Material

Usually Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2



As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Lamp power

20 W- 400 W (HPS/MH)

220V (+-10%) /50Hz

Torlance of the dimenstion +- 2%
Optical assembly of lighting fixture IP 65
Electroshock resistant protective grade Grade Ⅰ
The casing anti-corrosion performance Class Ⅱ
Working atmosphere of lighting fixture -35 °C~+45 °C
Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.



Joint of Poles

Insert mode, innerflange mode ,face to face joint mode .



Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint

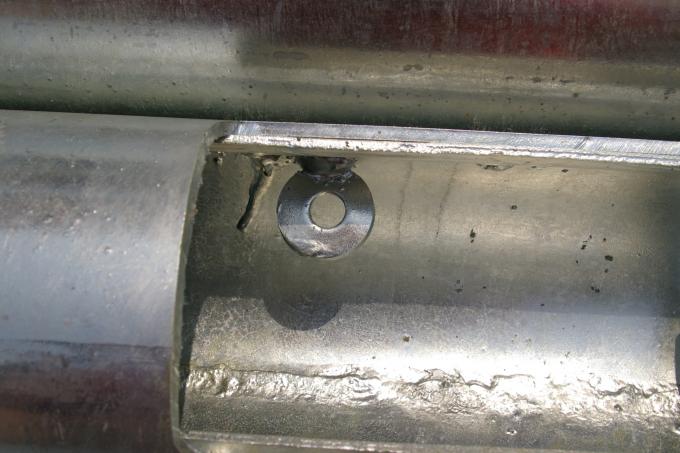

Welding

We has past flaw testing. Internal and external double welding makes the welding beautiful in shape

Welding Standard :AWS (American Welding Society ) D 1.1



Thickness 1 mm to 30 mm
Production Process Raw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr →Galvanization or powder coating ,painting →Recalibration →Thread →Packages

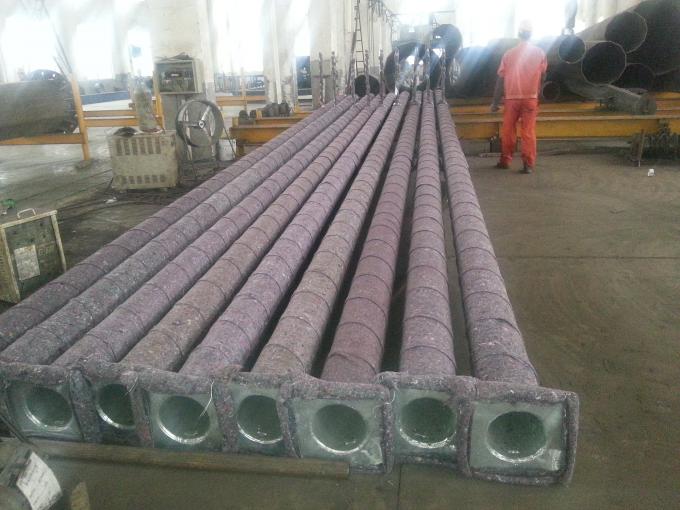

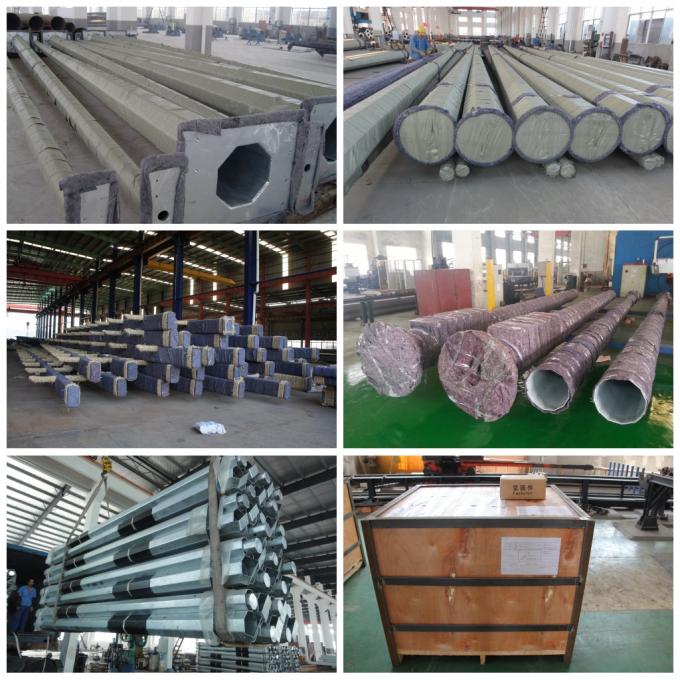

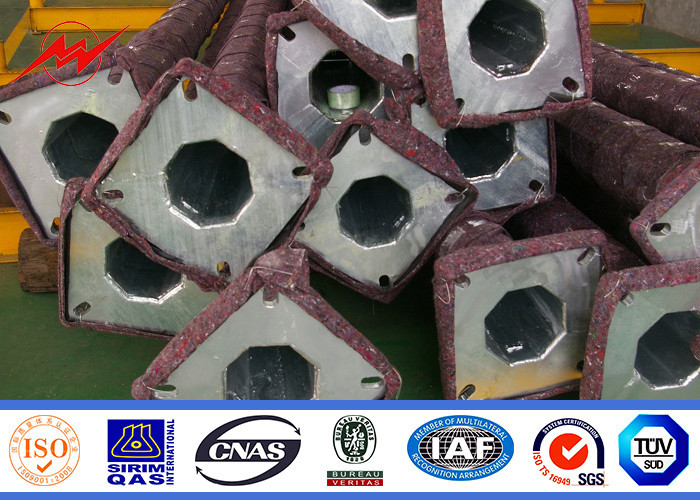

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pics will calculation base on the client actually specification and data.



Style Size and styles are veriable as per customer request

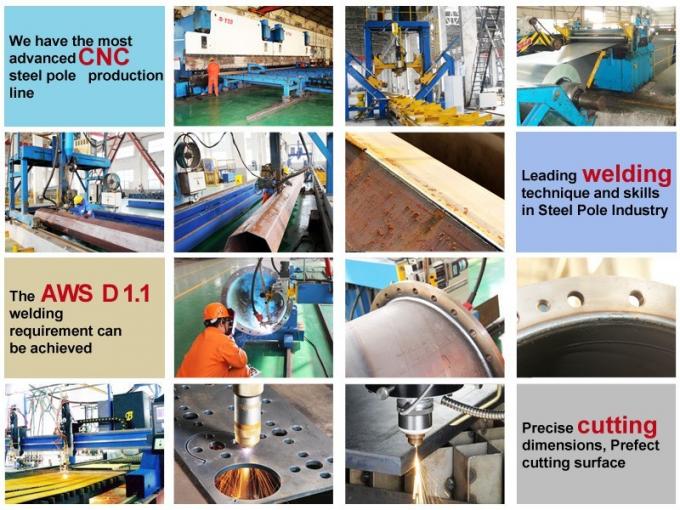

product procession

Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole

Raw Material

When purchasing the raw material (steel plate), on sheet of mill certificate from mill factory must be enclosed. When the raw material arrives at the warehouse, the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.

Plasma Cutting

Cuting the raw material that have meet all the standard required into different length and width.

Molding

Forming the cutted steel plate into the shape (circular or polygonal or other shape ) that as per specified in the drawing

Welding

After molding, weld the steel plate together. Usually it is longitudinal welds

Galvanization

All poles internally and externally are to be hot-dip galvanized in accordance with requirement mentioned in the relevant drawing or specification
Galvanization standard:IS2629-1985 ,BS729-1971







service

      Pres-Sales Service                                                  After-Sales Service

  * Inquiry and consulting support.                                     * Training how to install the pole

      * Sample testing support.                                         * Engineers available to arrange overseas.

      * View our Factory.

Famous Project Hot Dip Galvanized Metal Light Pole , White Coating Light Steel Pole



1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory: We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.

7. Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.



FAQ

Trade terms:

1. Price Term: EXW, FOB, CFR or CIF.

The price includes pole shaft, base plate, cross arm and anchor part.

Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.

2. MOQ: 1 sets.

3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Package: Plastic paper or according to clients requirement.

5. Delivery: for 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.

6. Parts Design Service Period: 20 years.



Our steel pole, steel poles , steel power poles ,power steel poles, electrical poles, electrical power poles, power poles, power distribution equipment poles , electric power transimission &distribution steel poles ,hot-dip-galvanized steel poles ,lamp poles ,road poles, streeting lighting poles, street lamp poles ,solar street lamps steel poles ,high mast lamp poles,road lamp poles, the steel street lamp poles, hot-dip-galvanized steel lighting ,outdoor lighting ,outdoor lamps ,street lighting poles ,steel post ,street poles, lamp parts ,lighting fixture ,lighting poles ,lighting equipment ,lighting decoration ,lighting product , street lighting body, high mast lighting steel poles &tower,electric poles, round&square street lighting steel poles with double arm or single arm . Stainless steel poles, Flag mast stainless steel pole, aluminum street light poles, traffic lighting steel poles, telecom tower poles , baseplate , bearing plate, base flanges , are made by hot-roll steel coil ,the process as cut plate, bending ,forming,automatic welding,drill holes ,quality check before galvanized, hot dip galvanized or powder coating , final quality check according by client required.







Q1. How can I get a price of needed pole?

A: 1. Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can according to your specification give you a similar price.

2. You can send us a drawing; we can according to your drawing give you one price.

Q2. I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler; we would like to grow up with you together.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help customers to be successful. So it's welcome if we can help you solve problem and make your design come true.
Q4. We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to delia @yin-he.com
Q5. Tell me about your company?

A:Jiangsu Milky Way Steel Poles Co.,Ltd , we have been a manufacturer and exporter of all kinds of steel poles, including street lighting pole,

power transmission pole, floodlighting pole for large squares and other steel products since 1991.Our poles have been exported to more than 70 countries and areas.

Q6. Do you have some special policies for Brand company?

A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling

data of last year. So we can see how to support you for your products in your market.

Q7. Can you make Door to Door service? Because i don't know how to do customs clearance.

A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because

we have do much of this every day. So it will save your time also money.
