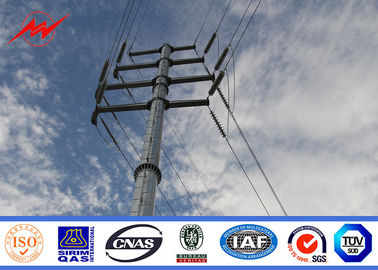

Galvanized Electrical Steel Power Pole 1mm to 30mm Thickness , Polygonal Or Conical Shape

Large Image : Galvanized Electrical Steel Power Pole 1mm to 30mm Thickness , Polygonal Or Conical Shape

Product Details:

Place of Origin:	China
Brand Name:	Milky Way
Certification:	ISO//BV
Model Number:	Galvanized Electrical Steel Power Pole For Transmission Line Project

Payment & Shipping Terms:

Minimum Order Quantity:	one 40HQ
Price:	negotiation
Packaging Details:	as per customer request
Delivery Time:	usually 2 weeks after confirming
Payment Terms:	T/T
Supply Ability:	300 pieces pole per day

Contact Now

Detailed Product Description

Thickness:	1mm To 30mm	Shape:	Conoid, Multi-pyramidal,Columniform, Polygonal Or Conical
Power:	10kv~550kv	Suit For:	Electricity Distribution
Wind Speed:	160km/h, 30m/s	Welding Standard:	AWS D 1.1
High Light:	electric utility poles , steel utility poles

Galvanized Electrical Steel Power Pole For Transmission Line Project

GENERAL SPECIFICATIONS FOR STEEL POLE
Type	octagonal conical 20ft galvanized steel tubular pole distribution poles column
Suit For	Electricity distribution
Shape	Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material	Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490
Power	10kv~550kv
Design Load in kg	300~1000kg applied to 50cm from the top of the pole
Surface Treatment	Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
Joint of the poles	Insert mode,innerflange mode,face to face joint mode .
Design of pole	Against earthquake of 8 grade
Wind Speed	160km/h 30m/s
Standard	ISO 9001
Welding	We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness	1mm to 30mm

Mechanical Property

The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when breaking is around 2 times of design load.

Galvanization

Standard: NFA91121

Average thickness of the galvanization: Not less than 86

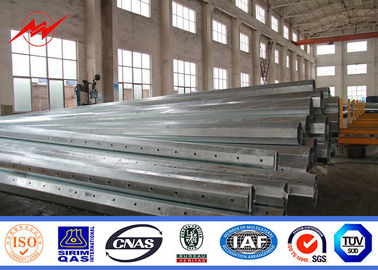

Galvanized Electrical Steel Power Pole 1mm to 30mm Thickness , Polygonal Or Conical Shape 0
