Product Details:
Payment & Shipping Terms:
|
| Material: | Q345, Q235 | Style: | Galvanization |
|---|---|---|---|
| Design Load In Kg: | 300~ 1000 Kg Appliced To 50cm From The To Pole | Torlance Of Dimenstion: | +- 2% |
| Suit For: | Electricity Distribution | Welding Standard: | AWS D 1.1 |
| High Light: | steel power pole,transmission line poles |
||

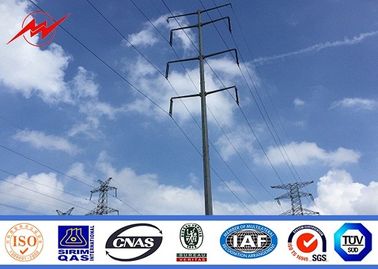

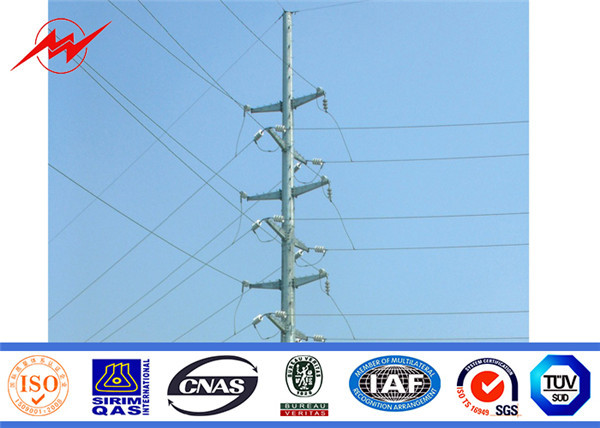

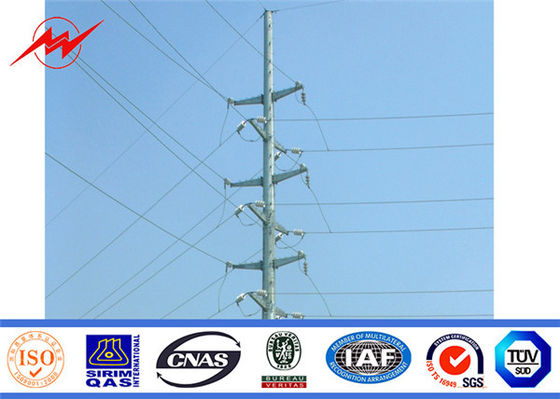

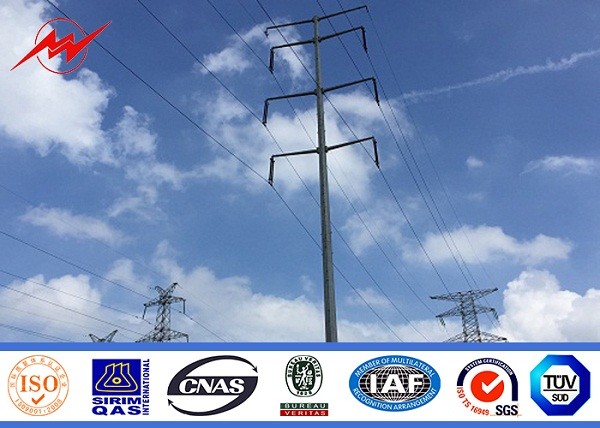

Multi-Pyramidal Galvanized Electrical Transmission Line on Self-Supported Polygonal Steel Poles (Monopole Tower
Suit For | Electricity distribution | ||
Shape | Conoid ,Multi-pyramidal,Columniform,polygonal or conical | ||
Material | Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490 | ||
Power | 10kv~550kv | ||
Design Load in kg | 300~1000kg applied to 50cm from the top of the pole | ||
Surface Treatment | Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required. | ||
Joint of the poles | Insert mode,innerflange mode,face to face joint mode . | ||
Design of pole | Against earthquake of 8 grade | ||
Wind Speed | 160km/h 30m/s | ||
Standard | ISO 9001 | ||
Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 | ||
Thickness | 1mm to 30mm | ||
Key Specifiction:
1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.
2. Mounting Height: 3-20M Optional Mounting Height
3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement
5. Base plate: Base plate is square or round and size as customers' requirement
6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
7. Ground mounted: The length buried underground as per customers requirement
8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.
9. Galvanizing: Hot dip galvanization with thickness of 80-100µm average
10. Powder coating: Pure polyester powder painting, color is optional
11. Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance
12. Welding: Welding confirms with international welding standard of CWB
13. Certificate: ISO9001-2000
14. We don't have standard products, so we need customer's drawings and request.
Our Company:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on
Manufacture Procedure
Raw material→Flatting the steel→Bending→Jointing→Point welding→Welding flange→Straighten→Galvanized→Finished poles
As an BV, ISO, approved supplier in China, we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment.
