Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization

China Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization supplier
Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization supplier Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization supplier Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization supplier Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization supplier

Large Image :  Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Street Light Poles

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Street Light Poles Welding Standard: AWS (American Welding Society ) D 1.1
Material: Q235 Thickness: 1 Mm to 36mm
Dimenstion Torlance: +- 2% Wind Speed: 160 Km/Hour
High Light:

street lighting poles

,

street lamp pole

 Single Arm 10m Q235 Street Light Poles with Hot Dip Galvanization





 Specifications:



Place of origin

China

Material

SteelQ235,Q345

Application

Garden, Square, Street, Stadium etc.



Shape of pole

Tapered Round,

Shafts are made of steel sheet that folded into required shape

and welded by automatic welding machine

Brackets/ Arm

As per customer’s requirement

Wall thickness

2.5mm to 20mm

Welding

Using automatic internal and external double welding makes

the welding beautiful in shape. And confirms with international welding standard. .

Base plate mounted

Base plate is square or round in shape with slotted holes for anchor

bolt and dimension as per customer’s requirement.

Ground mounted

The length buried underground as per customer’s requirement.

Galvanizing

Hot dip galvanization with Chinese standard GB/T 13912-2002 or

American standard ASTM A123, IS: 2626-1985.

Powder coating

Pure polyester powder painting, color is optional according to RAL

color standard.



Jointing

Jointing of pole with insert mode, face to face joint mode .Every lighting

pole has a unique code. All sections belonging to one pole have the

 same code, so it’s easy to assembly.

Wind Resistance

Against wind pressure of 160Km/h

Earthquake Resistance

Against earthquake of 8 grade





Quality Control

We strictly follow the standard of ISO9001-2008. Quality is in the first

place at every stage of production to

ensure the product compliance to the specification/standards.

Careful inspections are carried out by highly trained inspection

engineers during every procedure from raw material stage to

finished product and delivery.

Certificates

ISO9001:2008 etc.





 Descripition of material:
 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

 Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization 0

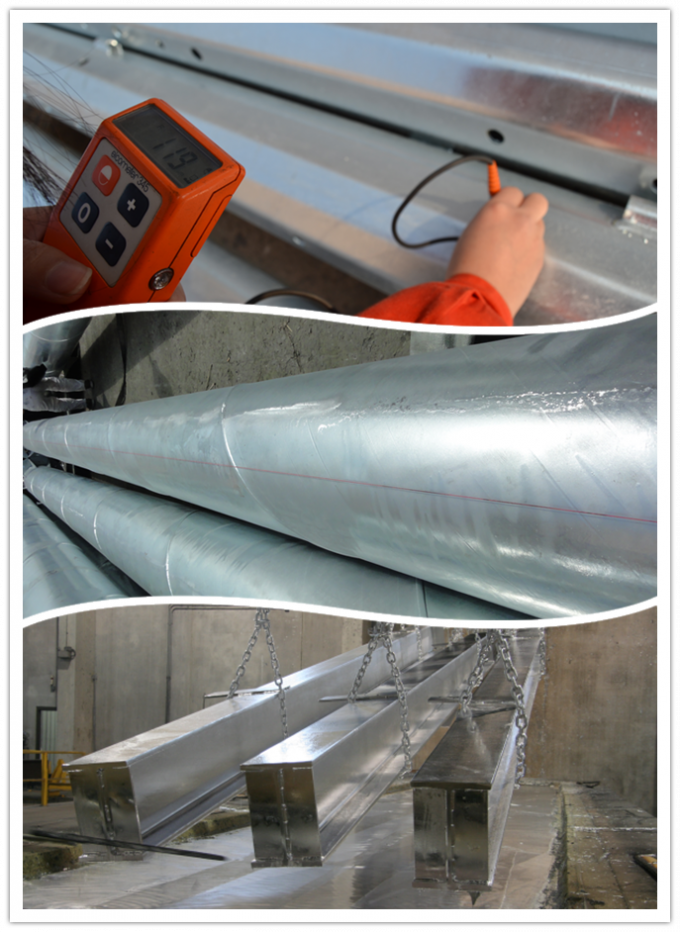

 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

 Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization 1



 Company Instruction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.

 Garden Single Arm 10m Q235 Street Lamp Pole With Hot Dip Galvanization 2
