Gr50 8mm 70 FT Steel Electrical Power Pole With Galvanization Painting

China Gr50 8mm 70 FT Steel Electrical Power Pole With Galvanization Painting supplier
Gr50 8mm 70 FT Steel Electrical Power Pole With Galvanization Painting supplier Gr50 8mm 70 FT Steel Electrical Power Pole With Galvanization Painting supplier Gr50 8mm 70 FT Steel Electrical Power Pole With Galvanization Painting supplier Gr50 8mm 70 FT Steel Electrical Power Pole With Galvanization Painting supplier

Large Image :  Gr50 8mm 70 FT Steel Electrical Power Pole With Galvanization Painting

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Power Electric Poles

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Power Electric Poles Application: Power Distribution
Surface Treatment: Galvanization Painting Welding Standard: AWS D 1.1
Galvanization Standard: ASTM A 123 Dimenstion Torlance: +- 2%
High Light:

electric power pole

,

transmission line poles

 Gr50 8mm 70FT Steel Power Electric Poles with Cross Arm for Power Transmission





 Specification:



Height

From 9 meter to 100 meter

Suit for

Electric Power Transmission and Distribution

Shape

Polygonal or Conical

Material

Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

                  Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity

10kV to 220kV

Tolerance of the dimension

According to client’s requirement.

Surface treatment

Hot dip galvanized Following ASTM A 123, or any other standard

by client required.

Joint of Poles

Slip joint, flanged connected

Standard

ISO 9001:2008

Length of per section

Within 14 meter once forming

Welding Standard

AWS (American Welding Society ) D 1.1

Thickness

1 mm to 36mm

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )

→Dimension verify →Flange welding →Hole drilling →sample assemble

→ surface clean→ Galvanization or powder coating ,painting →Recalibration

 →Packages

Packages

Packing with plastic paper or according to client’s request.

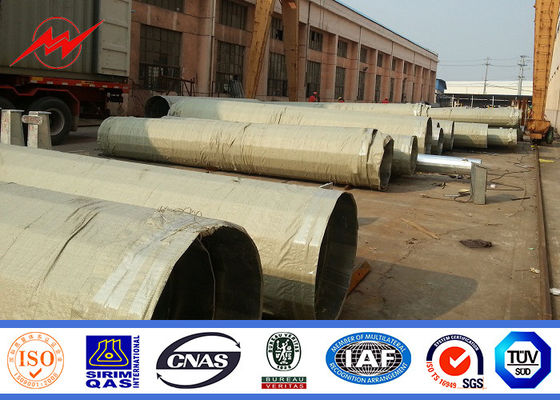

Gr50 8mm 70 FT Steel Electrical Power Pole With Galvanization Painting 0



 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

 Gr50 8mm 70 FT Steel Electrical Power Pole With Galvanization Painting 1





 More Picture:

 Gr50 8mm 70 FT Steel Electrical Power Pole With Galvanization Painting 2





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
