Grade One Polygonal Bitumen Electrical Transmission Steel Transmission Poles

China Grade One Polygonal Bitumen Electrical Transmission Steel Transmission Poles supplier
Grade One Polygonal Bitumen Electrical Transmission Steel Transmission Poles supplier Grade One Polygonal Bitumen Electrical Transmission Steel Transmission Poles supplier Grade One Polygonal Bitumen Electrical Transmission Steel Transmission Poles supplier Grade One Polygonal Bitumen Electrical Transmission Steel Transmission Poles supplier

Large Image :  Grade One Polygonal Bitumen Electrical Transmission Steel Transmission Poles

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Utility Pole Application: Electrical Power Distribution
Quality Control: ISO 9001 Welding Standard: AWS D 1.1
Surface Treatment: Galvanization Dimenstion Torlance: +- 2%
High Light:

electrical power poles

,

high voltage pole

 Grade One Polygonal 9m Steel Utility Pole for Electrical Transmission With Bitumen





 Description:



 Our Transmission Pole is designed for the high voltage power transmission and low voltage power  transmission.
 Designed and manufacutred for durability, corrosion resistance and visual appeal.





 Specifications:



Distribution Range
Product Code Length ULS Pole Dimension
Top Base
11M 13.5KN 11M 13.5kN 160 328
12.5M 12KN 12.5M 12KN 160 340
12.5M 16KN 12.5M 16KN 180 380
12.5M 24KN 12.5M 24KN 200 420
14M 16KN 14M 16KN 190 402
14M 24KN 14M 24KN 210 465
15.5M 12KN 15.5M 12KN 160 405
15.5M 24KN 15.5M 24KN 210 500
Note:Tapered 12-sided, direct buried
Pole deflection less than 5% of pole height at 50% ULS

Sub Transmission  Range
Product Code Length ULS Pole Dimension
Top Base
18.5M 24KN 18.5M 24KN 210 660
18.5M 40KN 18.5M 40KN 260 730
21M 40KN 21M 30KN 220 697
21M 40KN 21M 40KN 260 795
24M 30KN 24M 30KN 220 755
24M 40KN 24M 40KN 300 760
Note:Tapered 12-sided, direct buried





 Description:
 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt
 -Bitumen protection
 -Painted marking
 -Removable ladder
 These are the standard accessories of the electric pole.

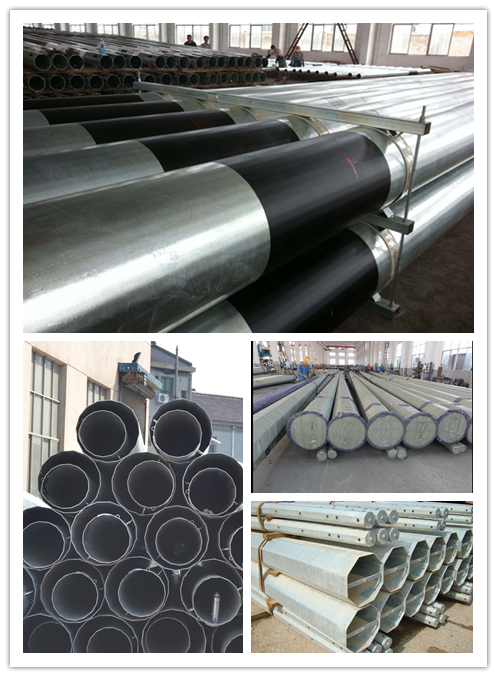

 Grade One Polygonal Bitumen Electrical Transmission Steel Transmission Poles 0




 The information to inquiry or purchase
 -Steel pole height and force
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Safety factor of the steel pole
 -Wind speed
 -Type of climbing rung
 -Destination port
 -Other.

 Grade One Polygonal Bitumen Electrical Transmission Steel Transmission Poles 1





 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

 Grade One Polygonal Bitumen Electrical Transmission Steel Transmission Poles 2
