HDG 32M 20 KN Electric Steel Power Poles 5mm 3 Sections with Cross Arms

China HDG 32M 20 KN Electric Steel Power Poles 5mm 3 Sections with Cross Arms supplier
HDG 32M 20 KN Electric Steel Power Poles 5mm 3 Sections with Cross Arms supplier HDG 32M 20 KN Electric Steel Power Poles 5mm 3 Sections with Cross Arms supplier HDG 32M 20 KN Electric Steel Power Poles 5mm 3 Sections with Cross Arms supplier HDG 32M 20 KN Electric Steel Power Poles 5mm 3 Sections with Cross Arms supplier

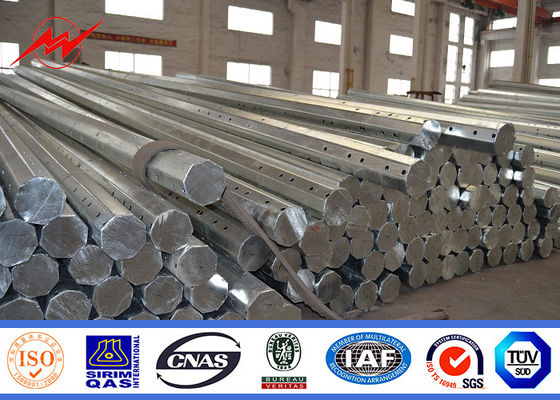

Large Image :  HDG 32M 20 KN Electric Steel Power Poles 5mm 3 Sections with Cross Arms

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Electric Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Electric Power Pole Application: Power Transmission
Galvanization Standard: ASTM A 123 Color: Optional
Thickness: 3-10mm Shape: Round/Octagonal
Material: Hot Rolled Steel

 HDG 32M 20KN Electric Steel Power Poles 5mm 3 Sections with Cross Arms





 Specification:



  Material:

Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50

Yield strength of Material:

Minimum yield strength>=235n/mm2 for Q235, S235  and SS400

Minimum yield strength>=345n/mm2 for Q345 S355  and Gr 50

Pole’s height:

3m –15m

Length of one part

Within 16m once forming without slip joint

Wall thickness:

2.3mm-30mm

Pole's Shape Can be made:

Round, Polygonal, Taper Octagonal, Taper round, Round conical,

Taper Square, Square.

Arm type can be made:

Single arm, Double arm, Tri-arm, Four-arm

Arm Diameter:

Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any

diameter’s lamps.

Power:

250W to 400W

Welding

Advanced submerge-arc welding and CNC welding equipment.

 It has past flaw testing,

 internal and external double welding makes the welding

beautiful in shape. It confirms with the international welding

standard of CWB and AWS D 1.1

Galvanization:

Hot dip galvanization with thickness of 80-100µm average in

accordance with Chinese standardGB/T 13912-2002 or

American standard ASTM A123, ISO: 2626-1985.

Manufactury Capacity Per Day:

250

Wall thickness Tolerance:



+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm.

+- 0.5mm from 22mm to 30mm

Painting color:

(RAL)Color card  or Refer to client’s requirement

Surface treatment 1:

Black pole, Rough pole

Surface treatment 2:

Hot dip Galvanizing antirust.

Surface treatment 3:

Hot dip galvanizing with powder coating

Temperature range

-35 °C~+45 °C

Wind Speed:

Aganist wind pressure of 120Km/h to 180Km/h,

it according to client’s design.

Base plate mounted

Base plate is square, octagonal or round in shape

with slotted holes for anchor bolt and dimension

as per customer’s requirement.

Ground mounted:

The length buried underground as per customer’s requirement.

Quality Control

According to ISO9001-2008 requirements.

Certificates

ISO9001-2008, SGS  Audited Supplier, The AAA grade certificate of goodwill

Other

Less land occupation & easy maintenance.





 Description:

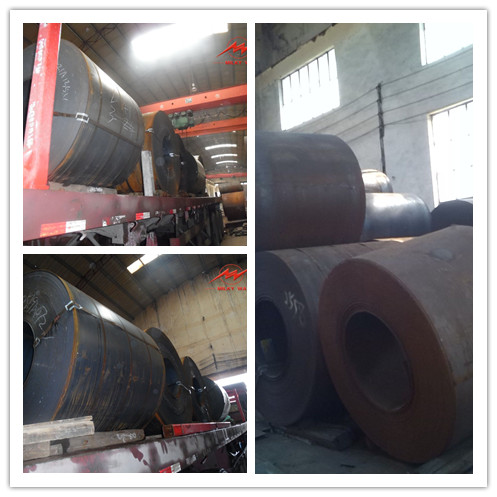

 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.

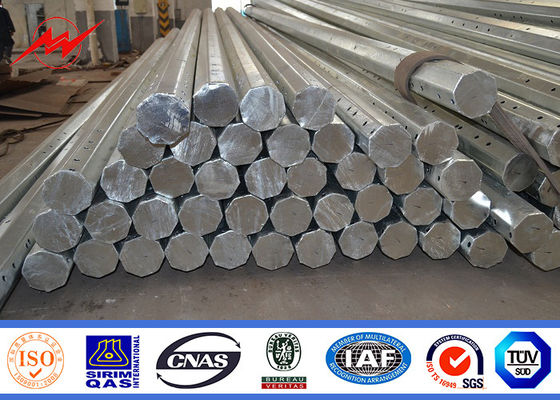

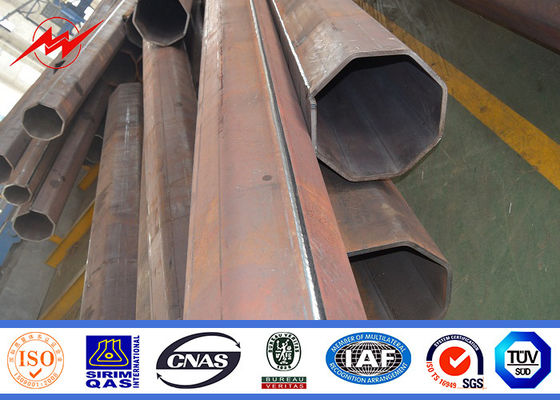

 HDG 32M 20 KN Electric Steel Power Poles 5mm 3 Sections with Cross Arms





 Manufacture Tolerance
 - Component Length:-25mm to 75mm
 - Straightness:2mm/m
 - Twisting degree:1°per 3 meters length
 - Ovalisation:Maximum is 3%
 - The average diameter:+/-0.5%
 - Slip length:+/-150mm

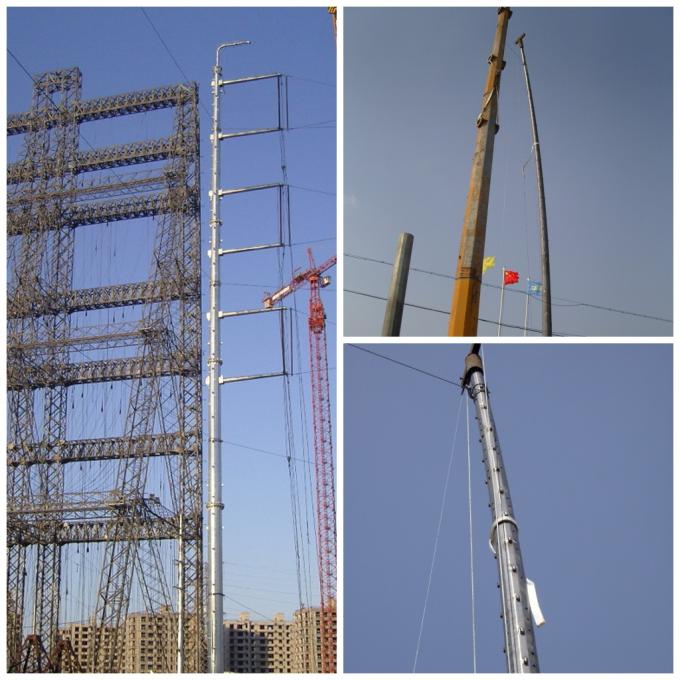

 Installation
- Remove all the equipment on the pole during Assembly.
- Circle a sling around th epole shaft of each section.
- Fix the sling on top section to one pulley block.
- The sling on the bottom section is tightly fixed and fixed at the center of gravity.
- Make the steel pole vertical by tighten the sling of the top section.
- Fix the steel pole.
- Remove the sling.

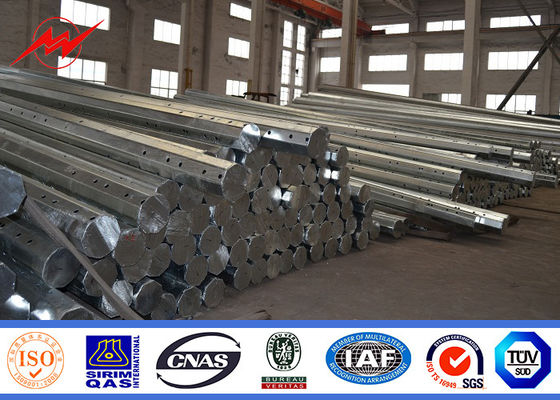

 HDG 32M 20 KN Electric Steel Power Poles 5mm 3 Sections with Cross Arms





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
