HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm

China HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm supplier
HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm supplier HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm supplier HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm supplier HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm supplier

Large Image :  HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Galvanized Steel Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Galvanized Steel Pole Wind Speed: 160KM/H
Welding Standard: AWS D 1.1 Design: Customized
Material: Q235 Lift Time: 50 Years
Warranty: 15 Years
High Light:

galvanised steel poles

,

power line pole

HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm





 Specifications:

Height

From 6 m to 15 m

Electroshock resistant protective grade

Grade  Ⅰ

The casing anti-corrosion performance

Class Ⅱ

Working atmosphere of lighting fixture

-35 ℃~+45 ℃

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
              Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

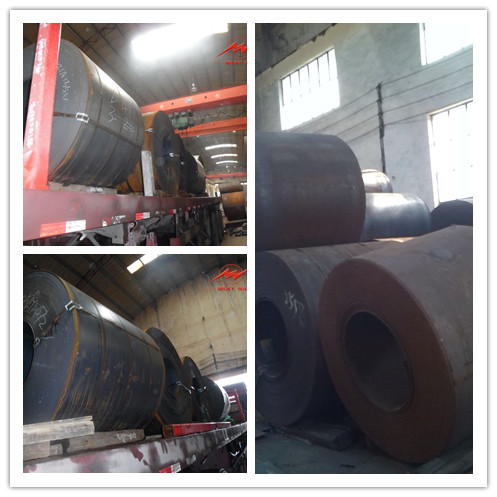

 Steel

 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.



 HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm 0



 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 70μm.

 HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm 1





 Application:
 Highway Seamless Steel Pipe                                Park Seamless Steel Pipe
 Main Roads Seamless Steel Pipe                         Dock Seamless Steel Pipe
 Secondary Roads Seamless Steel Pipe              Stadium Seamless Steel Pipe
 Storage-yar Seamless Steel Pipe                         Overpass Seamless Steel Pipe
 Industrial-Plant Seamless Steel                            Toll-Station Seamless Steel Pipe





 Company Introduction:

 Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest  sea port of China ,Shanghai,Port .

 Our Products have been widely used in the power transmsion ,signal transmission and ligting for street  ,road ,square ,palaestra.and so on

 We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV  transmission poels ,our products have been deliveried to more than 70 contries and areas ,including  America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on-  cctv winch camera  telescopic mast pole



HDG 3mm 10m Dual Outreach Galvanized Steel Pole with Cross Arm 2
