|Product Name:||High Voltage Galvanized Conical Electric Power Distribution Transmission Line Towers||Application:||Electrical Power Distribution|
|Welding Standard:||AWS D 1.1||Wall Thickness:||1-36mm|
|Waranty Time:||15 Years||Material:||Q345|
electric power pole,
steel power pole

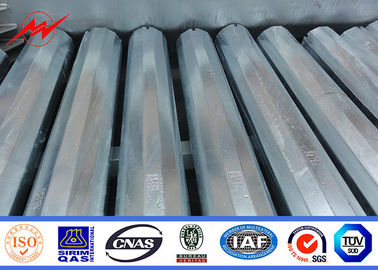

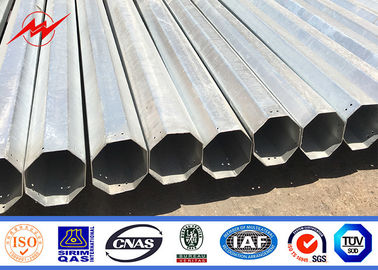

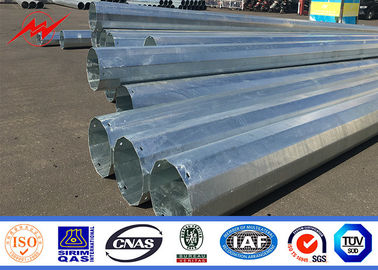

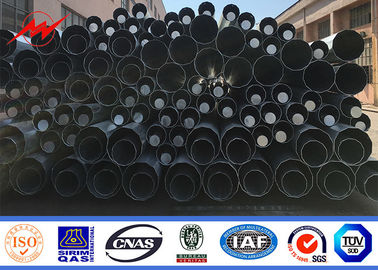

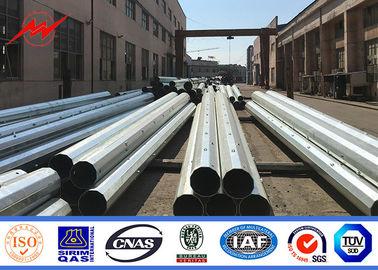

High Voltage Low Price 10M 11M 12M Electrical Steel Power Pole
|Height||From 9 meter to 100 meter|
|Suit for||Electric Power Transmission and Distribution|
|Shape||Polygonal or Conical|
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400
|Power Capacity||10kV to 220kV|
|Tolerance of the dimension||According to client’s requirement.|
|Surface treatment||Hot dip galvanized Following ASTM A 123, or any other standard by client required.|
|Joint of Poles||Slip joint, flanged connected|
|Length of per section||Within 14 meter once forming|
|Welding Standard||AWS (American Welding Society ) D 1.1|
|Thickness||1 mm to 36mm|
|Production Process||Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages|
|Packages||Packing with plastic paper or according to client’s request.|
The above design is based on ASTMA 572 Gr 65 material,with octagonal cross section shape,while the safety factor is 1.8.If you have other requirement on load,height,material and cross section shape,pls contact us.
Raw material test → Cutting →bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →sample assemble → surface clean→ Galvanization or powder coating ,painting →Recalibration →Packages
Average thickness of the galvanization:Not less than 86μm.
Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Company has 24 years experience on producing the steel poles including the transmission power pole,street light pole,high mast pole and so on.
We exported to oversea countries since 1991 and our products have been delivered to more than 70 countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa and so on.
We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the high mast pole for Sochi Winter Olympic Game and so on.
