High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment

Certification
Good quality Electrical Power Pole for sales
Good quality Electrical Power Pole for sales
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment

China High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment supplier
High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment supplier High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment supplier High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment supplier High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment supplier High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment supplier High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment supplier

Large Image :  High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Power Pole Application: Telecommunication
Wind Speed: 160km/h Galvanization: Average Not Less Than 86μm
Thickness: 6mm,8mm,10mm Lift Time: 50 Years



Anti Corrosion Electric High Mast Monopole Antenna Tower With Climbing Ladder

Specifications:





Mast’s height



15m to 35m



Shape of mast

Polygon



Shafts are made of steel sheet that folded into required shape and

welded longitudinally by automaticarc welding machine



Head frame

The style according to client's requests and dimension as per customers

requirement



Length



Within 14m once forming without slip joint





Wall thickness



4mm to 20mm



Welding

It has past flaw testing.Internal and external double welding makes the

welding beautiful in shape.

And confirms with international welding standard of CWB



Jointing

Slip Joint

Jointing of pole with insert mode, innerflange mode, face to face joint mode.

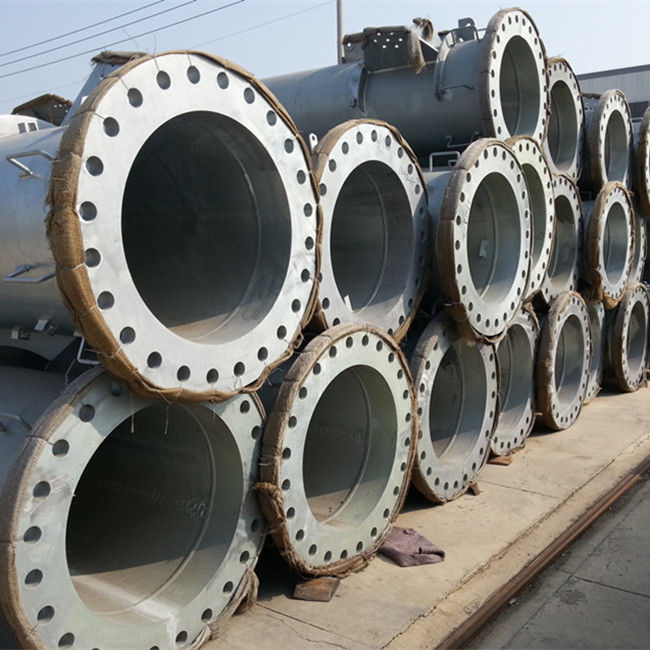

Base plate mounted



Base plate is square or round in shape with slotted holes for anchor bolt

and dimension as per customers requirement.

Ground mounted



The length buried underground as per customers requirement.



Galvanizing

Hot dip galvanization with thickness of 80-100µm average in accordance

with Chinese standardGB/T 13912-2002 or American standard ASTM A123,

IS: 2626-1985.





Powder coating



Pure polyester powder painting, color is optional according to

RAL Color stardand.

Wind Resistance



Aganist wind pressure of 160Km/h

Manufacturing



According to GB/T 1591-1994.





Quality Control



We control the quality according to the flow of ISO9001-2008. Quality is

employed at every stage of production to ensure

the product compliance to the specifications/standards. Careful inspections

are carried out by highly trained inspection engineers as per the defined

procedures from raw material stage to finished product and delivery.

Prototype assembly of towers is carried out in

the plant.



Certificates



ISO9001-2008 SGS Audited Supplier




Material
Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-



High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment





Feature:

Special designed for stadium to provide high-power, large- area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for i nstallation and maintenance purposes

Light source :400w-1000w sodium light

High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment



Installation:
1. high-pressure sodium lamp with external ballast and Triggers installed in light tray.
2. when replacing or repairing light and other electrical appliances, you should use special wrench to open it.
3. control box installed at the poles or the lower part of the poles

High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment



Company instruction:

JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200 million . We have 20 years experience in design and production. Our main products are power pole, communication towers, street lighting poles, steel bracket and so on. The company has strong technical force, advanced production equipment, perfect quality management system, product quality has reached international advanced level.



High Voltage Galvanized Power Transmission Steel Poles For Electric Power Equipment
