Product Details:
Payment & Shipping Terms:
|
| Name: | Hot Dip Galvanized Medium Voltage Electrical Pole Steel Utility Pole With Insulator | Thickness: | 3mm |
|---|---|---|---|
| Surface Finished: | Hot Dip Galvanized | Standard: | ISO |
| Torlance: | +- 2% | Max Wind Speed: | 30m/s |
| Material: | Q235,Q345,Gr65 | Colar: | Any |
| High Light: | electrical power poles,electrical transmission poles |
||

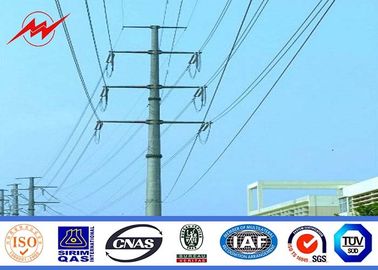

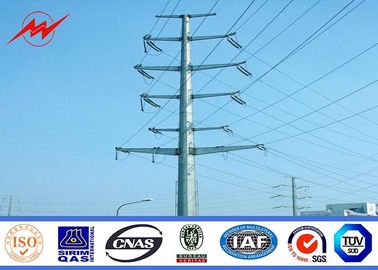

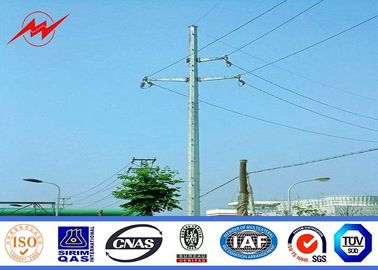

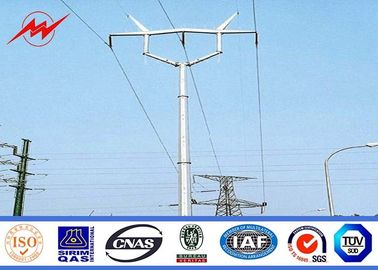

Hot Dip Galvanized Medium Voltage Electrical Pole Steel Utility Pole With Insulator
|
Product Name |
Hot Dip Galvanized Medium Voltage Electrical Pole Steel Utility Pole With Insulator |
|
Type |
Straight Pole ,Tensile Pole ,Turn Pole |
|
Suit for |
Electricity distribution |
|
Shape |
Conoid ,Multi-pyramidal,Columniform,polygonal or conical
|
|
Material |
Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52- |
|
Torlance of dimenstion |
+- 2% |
|
Power |
10 KV ~550 KV |
|
Safety Factor |
Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
|
Design Load in Kg |
300~ 1000 Kg appliced to 50cm from the to pole |
|
Marks |
Nane palte through rivert or glue ,engrave ,emboss as per customer requirement |
|
Surface treatment |
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.
|
|
Joint of Poles |
Insert mode,innerflange mode,face to face joint mode .
|
|
Design of pole |
Against earthquake of 8 grade |
|
Wind Speed |
160 Km/Hour . 30 m /s |
|
Minimum yield strength |
355 mpa |
|
Minimum ultimate tensile strength |
490 mpa |
|
Max ultimate tensile strength |
620 mpa |
|
Standard |
ISO 9001 |
|
Length of per section |
Within 14m once forming without slip joint |
|
Welding |
We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
|
|
Thickness |
1 mm to 30 mm |
|
Production Process |
Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify→Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
|
Packages |
Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data. |
Before shipment ,we have a final inspector manager to check the products on every detail and component to make sure it all meet the drawing .
Trade Terms:
1. Payment:(1)Telegraphic Transfer(30% advance payment, balance before shipment)
(2)Telegraphic Transfer(30% advance payment, balance against copy of documents)
(3)Letter of Credit: at sight
2. Lead Time: 2 weeks after confirmed order
3. Delivery way: by sea
