Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole

Certification
Good quality Electrical Power Pole for sales
Good quality Electrical Power Pole for sales
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole

China Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole supplier
Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole supplier Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole supplier Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole supplier Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole supplier Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole supplier

Large Image :  Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole

Product Details:

Place of Origin: Jiangsu, China
Brand Name: Milky Way
Certification: ISO, BV, SGS
Model Number: Traffic Light Signals

Payment & Shipping Terms:

Minimum Order Quantity: one 40 HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Contact Now
Detailed Product Description
Material: Q345 Surface Treatment: Hot Dip Galvanized
Torlance Of Dimension: +-2% Warranty Time: 15 Years
Galvanization: Average Not Less Than 86um Thickness: 1mm To 26mm

Galvanized q235 Traffic Road Sign Board Pole Powder Coated Traffic Signal Light Pole Q345 Material





Specification

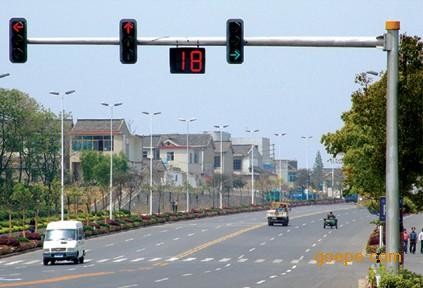

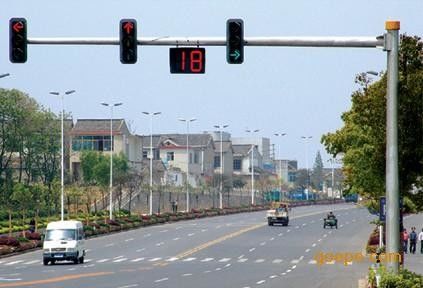

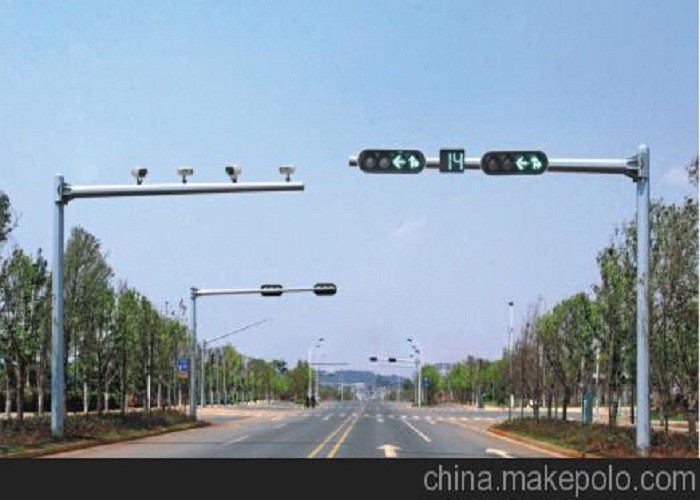

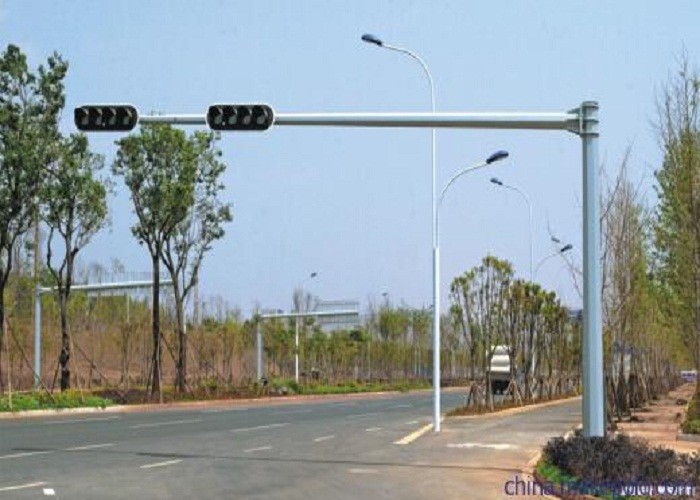

Application site

Street, highway intersections

Column height

6.5metre

Length and quantity of arm

9metre, 1pieces

The top and bottom diameter of column

200-300mm

The top and bottom diameter of arm

90-200mm

Wall thickness of column and material

6.5mm,Q235A

Wall thickness of arm and material

6mm,Q235A

Bottom flange size of column

500*20

Connecting flange size between column and horizontal arm

350*18

Wind load resistance

30m/S

Anticorrosion treatment

Hot dip galvanized steel to antirust or

with Powder coating to beautify pole.

Shape

Octagonal, Polygonal or Tapered round

The installation accessories

LED lights, cameras and traffic indication

signs



Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

 Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole

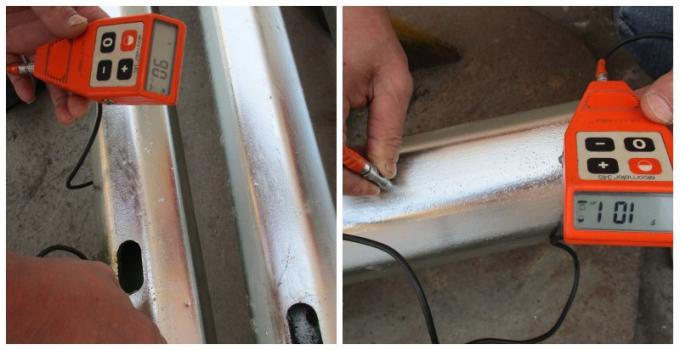

 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm





 Company Introduction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.

 After 20 years of development, our company products are exported to overseas. Pakistan, Germany,  Nigeria, Singapore, New Zealand, India, the Philippines, Australia and so on, we have shared a broad  market.Our products are well knowed. Now the capataity of Exports has taken 40% of company sales,  which made us become one of the leading export enterprises in china.



 Hot Dip Galvanized Q235 Traffic Light Pole Traffic Road Sign Board Pole
