Hot Dip Galvanized Round 20 M Steel Electric Utility Pole Hardware 4mm for Power Distribution

China Hot Dip Galvanized Round 20 M Steel Electric Utility Pole Hardware 4mm for Power Distribution supplier
Hot Dip Galvanized Round 20 M Steel Electric Utility Pole Hardware 4mm for Power Distribution supplier Hot Dip Galvanized Round 20 M Steel Electric Utility Pole Hardware 4mm for Power Distribution supplier Hot Dip Galvanized Round 20 M Steel Electric Utility Pole Hardware 4mm for Power Distribution supplier Hot Dip Galvanized Round 20 M Steel Electric Utility Pole Hardware 4mm for Power Distribution supplier

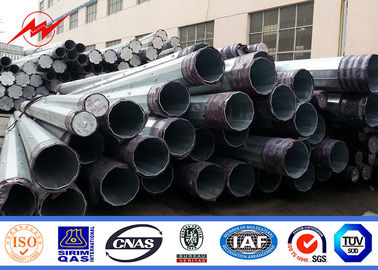

Large Image :  Hot Dip Galvanized Round 20 M Steel Electric Utility Pole Hardware 4mm for Power Distribution

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Electric Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Electric Power Poles Application: Electric Power Distribution
Surface Treatment: Galvanization Welding Standard: AWS D 1.1 /BS EN 1011-1,BS EN 1011-2
Galvanization Standard: ASTM A 123 Lift Time: 50 Years
Warranty: 15 Years
High Light:

steel power pole

,

transmission line poles

 Hot Dip Galvanized Round 20M Steel Electric Power Poles 4mm for Power Distribution





 Specification:



Distribution Range
Product Code Length ULS Pole Dimension
Top Base
11M 13.5KN 11M 13.5kN 160 328
12.5M 12KN 12.5M 12KN 160 340
12.5M 16KN 12.5M 16KN 180 380
12.5M 24KN 12.5M 24KN 200 420
14M 16KN 14M 16KN 190 402
14M 24KN 14M 24KN 210 465
15.5M 12KN 15.5M 12KN 160 405
15.5M 24KN 15.5M 24KN 210 500
Note:Tapered 12-sided, direct buried
Pole deflection less than 5% of pole height at 50% ULS

Sub Transmission  Range
Product Code Length ULS Pole Dimension
Top Base
18.5M 24KN 18.5M 24KN 210 660
18.5M 40KN 18.5M 40KN 260 730
21M 40KN 21M 30KN 220 697
21M 40KN 21M 40KN 260 795
24M 30KN 24M 30KN 220 755
24M 40KN 24M 40KN 300 760
Note:Tapered 12-sided, direct buried





 Descripition of material:


 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

 Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
                  Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
 As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

 Hot Dip Galvanized Round 20 M Steel Electric Utility Pole Hardware 4mm for Power Distribution 0

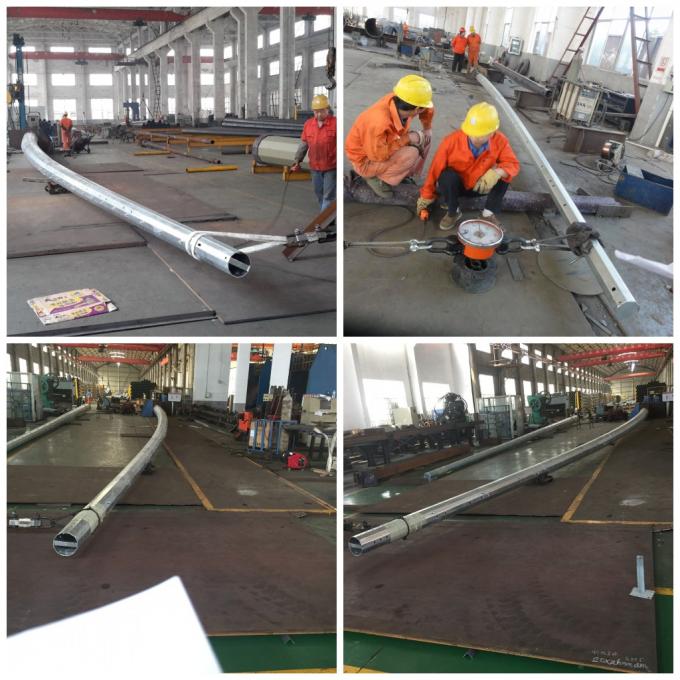

 Welding:

 Advanced submerge-arc welding and CNC welding equipment. It has past flaw testing, internal and  external double welding makes the welding beautiful in shape. It confirms with the international welding  standard of CWB and AWS D 1.1




 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

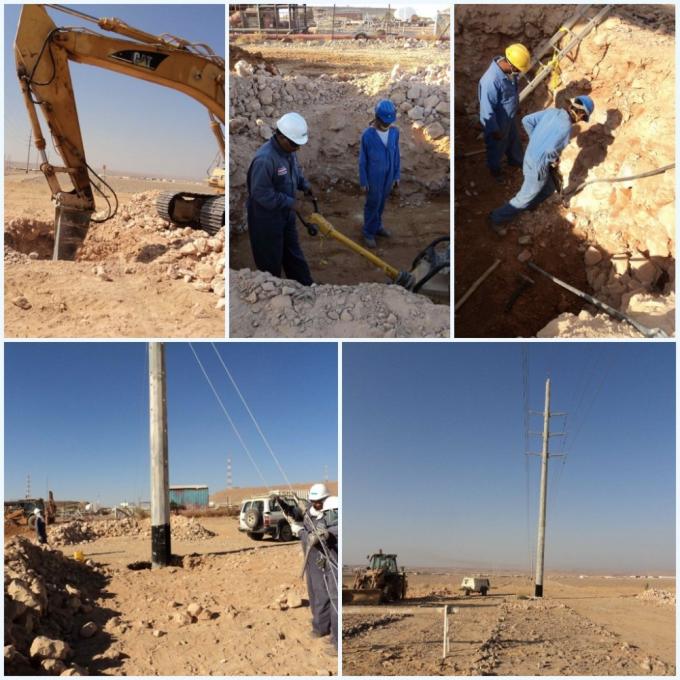

 Installation
 - Remove all the equipment on the pole during Assembly.
 - Circle a sling around th epole shaft of each section.
 - Fix the sling on top section to one pulley block.
 - The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 - Make the steel pole vertical by tighten the sling of the top section.
 - Fix the steel pole.
 - Remove the sling.

 Hot Dip Galvanized Round 20 M Steel Electric Utility Pole Hardware 4mm for Power Distribution 1

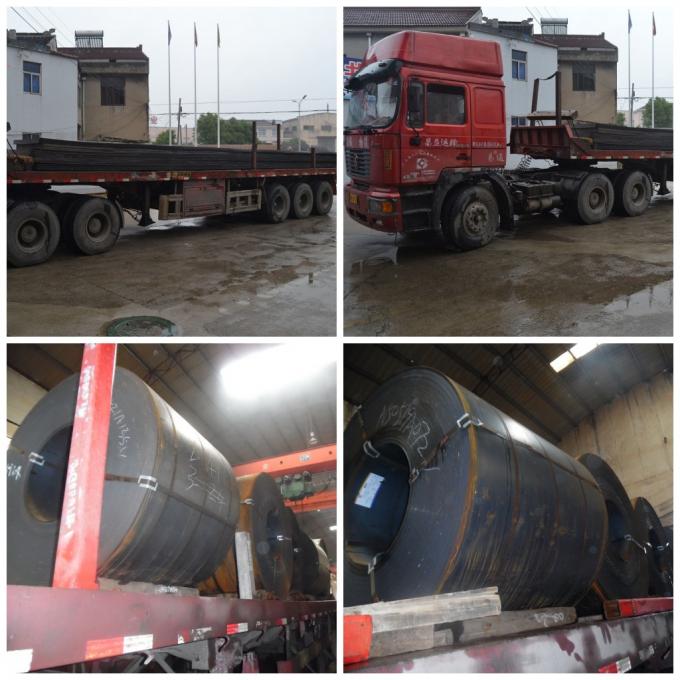

 Inspection
 To assure our products qualified ,we take steps as follows :
 1. Management team : We have employ the foreign export to take chaege of the overall managemnt  ,especailly the technical managemnt and quality management .
 2.Introducing ISO management ,We are awared ISO 9001:2008 certificate . .
 3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed  QC in every manufacure steps and beofore every shipment

 Hot Dip Galvanized Round 20 M Steel Electric Utility Pole Hardware 4mm for Power Distribution 2





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
