Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line

China Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line supplier
Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line supplier Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line supplier Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line supplier Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line supplier Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line supplier

Large Image :  Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: Steel Utility Pole Application: Power Transmission
Galvanization Thickness: Average 70μm Standard: ISO
Design: Customized Max Ultimate Tensile Strength: 620 Mpa
Welding Standard: AWS D 1.1
High Light:

hot roll steel utility service pole

,

power transmission line utility service pole

,

220kv steel utility pole

20M 12KN 4mm  Steel Utility Pole for Electrical Power Transmission





 Specifications:



Suit for  Electricity distribution
Shape  Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Torlance of the dimenstion +- 2%
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour .  30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness 1 mm to 30 mm
Production Process

Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.






  Material
  Usually Q345B/A572,minimum yield strength>=345n/mm2 Q235B/A36,minimum yield strength>235n/mm2
  As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
  SS490, to ST52-

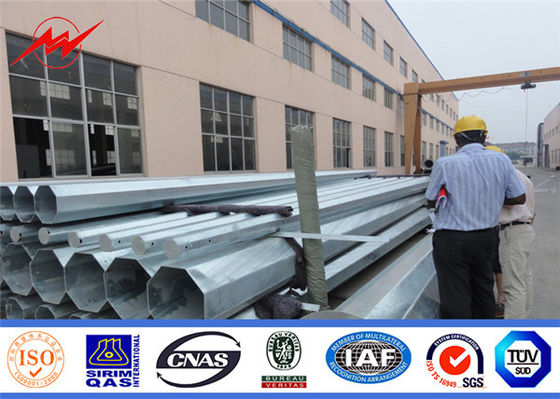

Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line 0



 Design:

 We have our standard pole with our design, OEM and ODM is also accpetable

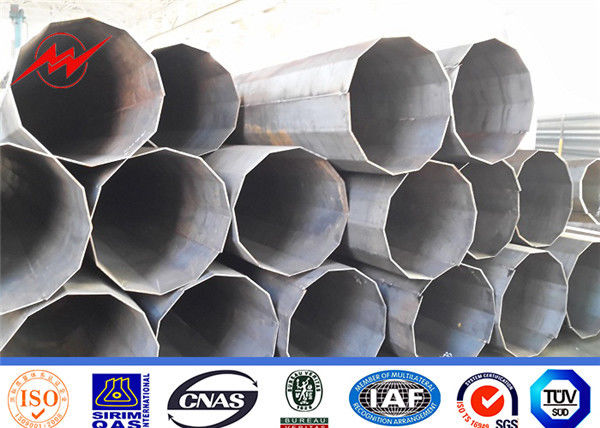

 Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line 1



 Company Introduction:

 Our development is based on quality, which allows us to always be able to stand ahead of the industry. In  1995, because of the introduction of the ISO9001 quality management system, our product quality has  been further increased and guaranteed. We have advanced testing equipment and experienced  technical engineers. This gives us continuously improve product quality to meet customer needs. Based  on product characteristics, we divide the inspection into four phases: raw materials inspection, production  process inspection, finished product inspection and regular inspection. Ours Qc have been engaged in  quality work for a long time and they consists of our quality deapartment . We implement the ISO9001  completely in during the process of productiong , proposed a concept. " the best way to return customers  is to provide high-quality product" !

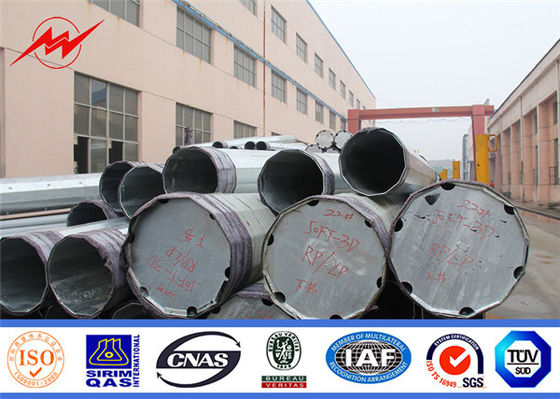

Hot Roll Steel 220kv Utility Service Pole Electrical Power Transmission Line 2
