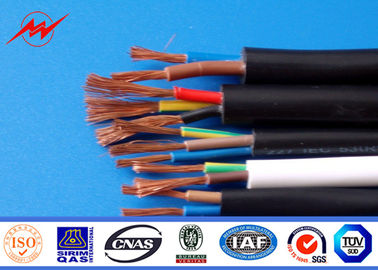

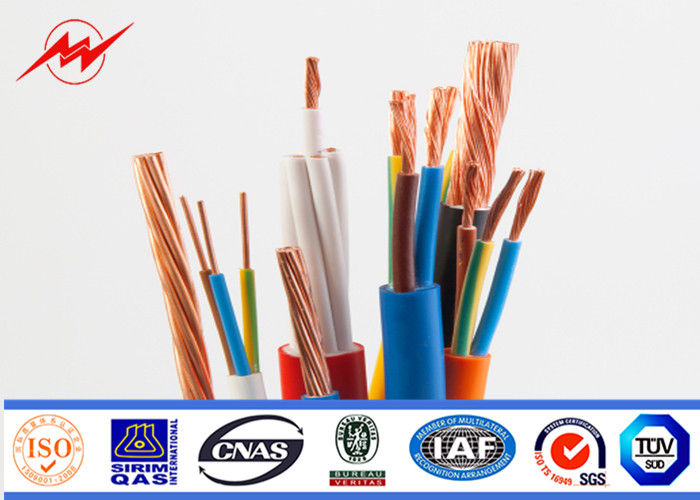

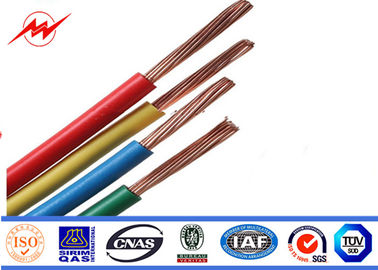

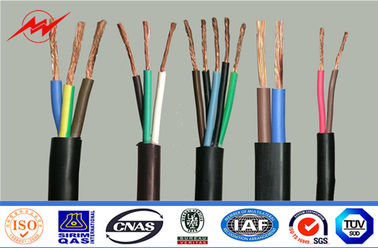

Housing Electrical Wires And Cables Black Green Yellow Blue JB8734.1~5-1998

China Housing Electrical Wires And Cables Black Green Yellow Blue JB8734.1~5-1998 supplier
Housing Electrical Wires And Cables Black Green Yellow Blue JB8734.1~5-1998 supplier Housing Electrical Wires And Cables Black Green Yellow Blue JB8734.1~5-1998 supplier Housing Electrical Wires And Cables Black Green Yellow Blue JB8734.1~5-1998 supplier Housing Electrical Wires And Cables Black Green Yellow Blue JB8734.1~5-1998 supplier

Large Image :  Housing Electrical Wires And Cables Black Green Yellow Blue JB8734.1~5-1998

Product Details:

Place of Origin: CHINA
Brand Name: BAO WO
Certification: ISO/CE/UL/CSA
Model Number: 300v-750v housing electrical cable with PVC/XLPE Insulation

Payment & Shipping Terms:

Minimum Order Quantity: 3000 Meters
Price: USD1-10 per meter
Packaging Details: As per customer request
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 100000 meters per day
Detailed Product Description
Service Conditions: Not More Than 105℃ Surface: PVC Or XLPE Insulation
Color: Red,white,black,green,yellow,blue Model Number: BV/BVR/BVVB/RV/RVV/RVVB
Standard: ISO9001 JB8734.1~5-1998 Jacket: PE PVC/XLPE
Type: Copper Wire,building Wire,aluminum Wire Voltage: 300v—750v
High Light:

electrical power cable

,

cables and wires

PVC/XLPE insulated 300v-750v housing electrical cable for power transmission





Specifications:



Section of conductor(mm ²):

1.5—70

INSULATION THICKNESS(mm) :

1.0—2.79

sheath:

PE.PVC/XLPE

Payment Terms:

L/C,D/A,D/P,T/T, Western Union

Voltage :

300v/450v/500v/750v

No. of cores:

1 or more

Conductor

99.5% Pure Oxygen Free Copper or Aluminum alloy

Color:

Black, Green and as customer request

Packing:

100 meters per roll or 500 meters per roll or as per requirement

Application :

These electrical cables are used for general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial applications where not subject to mechanical damage.

Common Model name :

BV          Copper Core PVC Insulation cable

BLV        Aluminum Core PVC Insulation cable

BVR       Copper Core PVC Insulation Flexible cable

BVV       Copper Core PVC Insulation PVC Sheath Round cable

BVVB     Copper Core PVC Insulation PVC Sheath Flat cable

BLVVB   Aluminum Core PVC Insulation PVC Sheath Flat cable

BV-90    Copper Core Heat-resistance 105℃ PVC Insulation



Delivery time:

10—20 days



  Housing Electrical Wires And Cables Black Green Yellow Blue JB8734.1~5-1998 0



3.Properties of pvc/xlpe insulated cable

 1. The highest allowed operating temperature of conductor for long-term working is 105 degrees.

2. In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.

3. The cable is laid without horizontal drop limit. The environment temperature should be no lower than -20 degrees when lay. Otherwise it should be preheated.

4. Excellent electrical performance, resistance to chemical corrosion.

5. Can stand advisable traction when laid.Can stand traction from Outside. Left low smoke halogen-free after burned.Retard the burning of the cable.



  Housing Electrical Wires And Cables Black Green Yellow Blue JB8734.1~5-1998 1



OUR SERVICES

 As you know there are so many cable manufacture, we are one of the biggest manufacture in chinamainland. We will give you a perfect shopping experience . If you need visit our factory , we will meet you at the airport or train station.

 Also we can offer other service Custom Merchandise:we can make cable as your need include the color ,size and so on.we also offer OEM .

 Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it .

 Cable sample : we can offer the sample free.
