Medium Voltage Electrical Power Transmission Poles For Distribution Line

China Medium Voltage Electrical Power Transmission Poles For Distribution Line supplier
Medium Voltage Electrical Power Transmission Poles For Distribution Line supplier Medium Voltage Electrical Power Transmission Poles For Distribution Line supplier Medium Voltage Electrical Power Transmission Poles For Distribution Line supplier Medium Voltage Electrical Power Transmission Poles For Distribution Line supplier

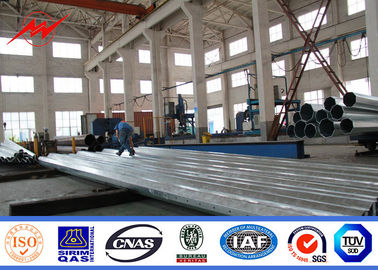

Large Image :  Medium Voltage Electrical Power Transmission Poles For Distribution Line

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: /BV/ISO
Model Number: Medium Voltage Electrical Power Transmission Poles For Distribution Line

Payment & Shipping Terms:

Minimum Order Quantity: one 40 HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Detailed Product Description
Power: 10kv~550kv Type: Straight Pole, Tensile Pole, Turn Pole
Thickness: 1mm To 30mm Wind Speed: 160km/h, 30m/s
Tolerance: +/-2% Design Load In Kg: 300~ 1000 Kg Applicated To 50cm From The To Pole
High Light:

power distribution poles

,

steel power poles

Medium Voltage Electrical Power Transmission Poles For Distribution Line



Company Information



Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.



We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.





Specification



Material:

high quality Q345 hot rolled steel

Mounting Height:

3-30m or according to the requirements of customers

Shape of pole:

Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine



Brackets:

Single or double brackets are in the shape and dimension as per customers requirement

Base plate:

Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement



Groung mounted:

The length buried underground as per customers requirement



Galvanizing:



Hot dip galvanization with thickness of 80-100µm average



Powder coating:

Pure polyester powder painting, color is optional

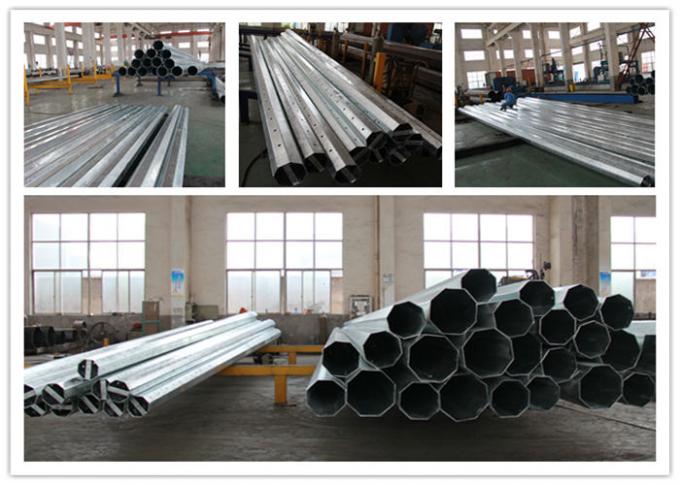

Medium Voltage Electrical Power Transmission Poles For Distribution Line 0



Production Process



Our factory own advance production line, machine including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce good quality steel poles.



The fabrication process as cut plate, bending, forming, automatic welding, drill holes, quality check before galvanized, hot dip galvanized and powder coating, finally quality check according by client’s required.







Features



1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

3. Deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

4. Packing: Plastic bulble , Mat &Straw Bale or following client required

5. Length : within 16meters once forming( single section)

6. Thickness: from 1mm to 25mm

7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

8. 110KV to 220kv

9. Easy install and maintenance.



Medium Voltage Electrical Power Transmission Poles For Distribution Line 1
