Multi Sided 8m 12 KN Steel Power Poles With Hot Dip Galvanization Powder Coating

China Multi Sided 8m 12 KN Steel Power Poles With Hot Dip Galvanization Powder Coating supplier
Multi Sided 8m 12 KN Steel Power Poles With Hot Dip Galvanization Powder Coating supplier Multi Sided 8m 12 KN Steel Power Poles With Hot Dip Galvanization Powder Coating supplier Multi Sided 8m 12 KN Steel Power Poles With Hot Dip Galvanization Powder Coating supplier Multi Sided 8m 12 KN Steel Power Poles With Hot Dip Galvanization Powder Coating supplier

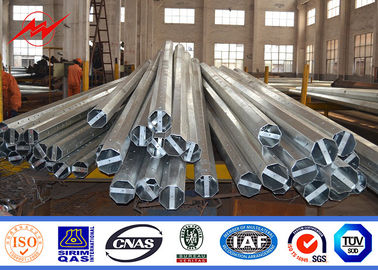

Large Image :  Multi Sided 8m 12 KN Steel Power Poles With Hot Dip Galvanization Powder Coating

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Utility Pole Application: Electrical Power Transmission
Quality Control: ISO 9001 Welding Standard: AWSD 1.1
Surface Treatment: Hot Dip Galvanization Powder Coating Life Time: 50 Years
High Light:

electrical power poles

,

electrical transmission poles

 Multisided 8m 12KN Steel Utility Pole for Electrical Distribition With Bitumen





 Specifications:



Suit for  Electricity distribution
Shape   Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Torlance of the dimenstion   +- 2%
Power 10  KV ~550 KV
Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks  Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required.

Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour .  30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard  ISO 9001
Length of per section Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness   1 mm to 30 mm
Production Process


Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages   Our poles as normal cover by Mat or straw bale at the top and bottom ,

anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data.

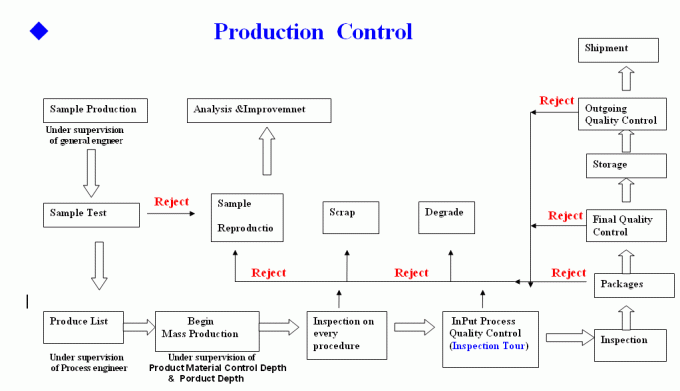

 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

 Multi Sided 8m 12 KN Steel Power Poles With Hot Dip Galvanization Powder Coating 0

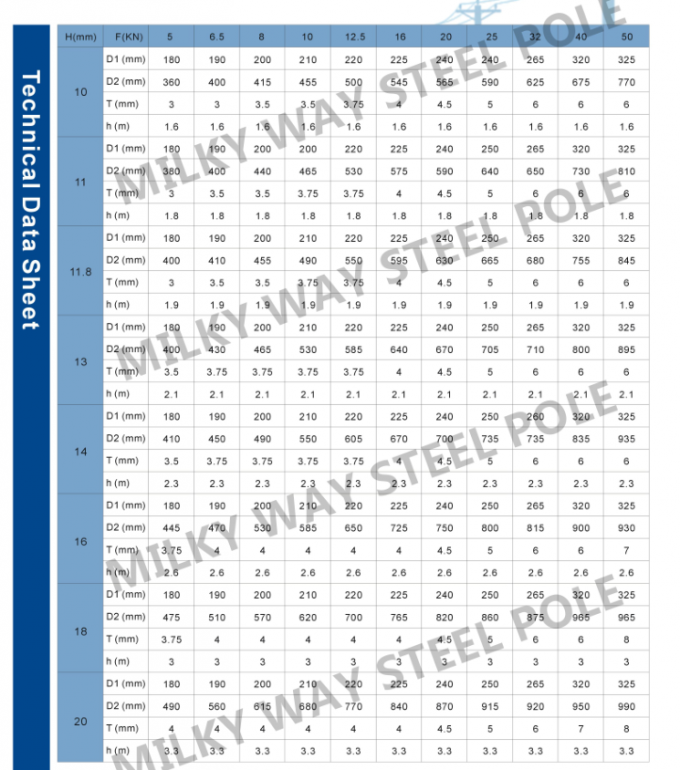

 Technical Data Sheet

 The follow design is based on ASTMA 572 Gr 65 material,with octagonal cross section shape,while the  safety factor is 1.8.If you have other requirement on load,height,material and cross section shape,pls  contac t us.

 Multi Sided 8m 12 KN Steel Power Poles With Hot Dip Galvanization Powder Coating 1

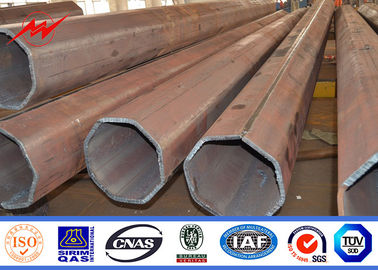

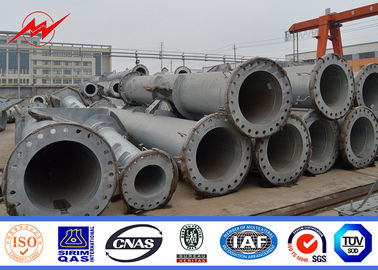

 More Photos:

 Multi Sided 8m 12 KN Steel Power Poles With Hot Dip Galvanization Powder Coating 2

 Company Introduction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province,  Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We  have 20 years experience in design and  production. Our main products are power pole,  communication  towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced  production equipment, perfect quality management system, product quality has reached  international  advanced level.
