NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen

China NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen supplier
NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen supplier NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen supplier NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen supplier NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen supplier

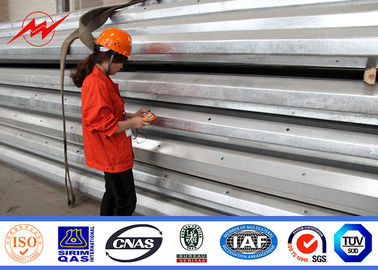

Large Image :  NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Utility Pole Application: Power Transmission
Welding Standard: AWS D 1.1 Galvanization Standard: ASTM A 123
Material: Q345 Galvanization Thickness: Average 70μm

 NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen





 Specifications:





Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Torlance of the dimension

+- 2%

Power

10  KV ~550 KV

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data



 Galvanization:

 The galvanization of the steel pole are under strict control.Galvanization is achieved by immersion in a  molten zinc bath(450d°) after pre-treated(dipping).



 NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen





 Design: We have our standard pole with our design, OEM and ODM is also accpetable
 Packages: Standard seaworthy
 Delivery time: with two weeks after confirm the order.



 NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen



 Steel
 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.



 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages



 NGCP 6MM 30FT Steel Utility Pole for 69KV Power Distribution with Bitumen
