|Name:||Octagonal 69KV Electrical Steel Power Pole||Material:||ASTM 572 Grade 50 With Yieled Strength No Less Than 345mpa|
|Type:||Octagonal 69KV Electrical Steel Power Pole||Shape:||Octagonal|
|Height:||8-35m||Galvanization Standard:||Hot Dip Glavanized Inaccordance With ASTM A123 With Thickness ≥ 86μm|
|Thickness:||3mm||Welding Standard:||AWS D1.1 With Penatration Rate No Less Than 80%-100%|
|Warranty Period:||50 Years||Joint Of Poles:||Overlap / Flange/ Direct Burial|

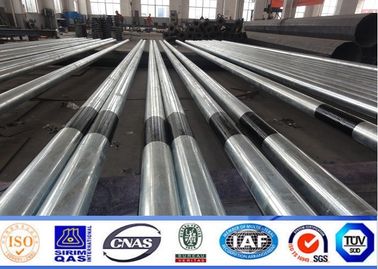

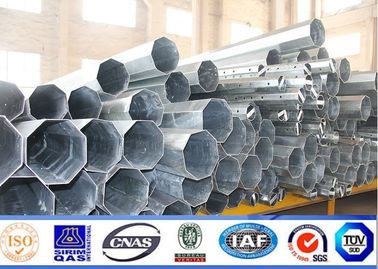

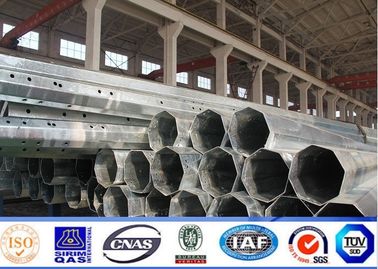

Octagonal 69KV electrical steel power pole for high woltage transmission line project
|Specification||Octagonal 69KV electrical steel power pole|
|Type||Octagonal 69KV electrical steel power pole|
|Material||ASTM 572 grade 50 with yield strength not less than 345mpa|
|Torlance of dimenstion||-0.02|
|Design Load in Kg||300~ 1000 Kg appliced to 50cm from the to pole|
Hot dip glavanized inaccordance with ASTM A123 with thickness ≥ 86μm
|Standard||Octagonal Conical tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123
|Length of per section||Within 15m once forming without slip joint.|
|Option of steel power pole||Height from 8m to 35m

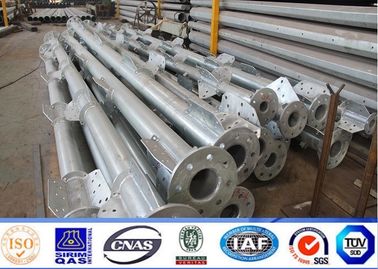

Flange mounted or planted type
|Production Process of high mast pole||
Raw material test → Cutting →Molding or bending
→Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration →Deburr→Galvanization or powder
coating ,painting →Recalibration→Thread →Packages
The products made by us is high resisitivity against heat ,humidity ,moisture,water etc. Owning to use the rare earth special craft during the productionprocess, to ensure its high precise, good quality and competitive advantage.Meanwhile, we can accept the product type damage test to ensure the highsafe factor of our products. Because of good quality and competitive pricecaused by innovation and management reform, experienced service infabrication ,design, installment, consultancy, we have built long-term relationship with many countries, such as America ,Morocco,Sir Lanka ,Russia, Jordan,Guyana,Nigeria, Australia, Spain, Indonesia, Singapore, the Philippines, Kenya,Areb etc.
|COUNTRY||UTILITY||VOLTAGE LEVEL||TYPE||YEARS OF SUPPLY|
|PHILIPPINES||NEA,NGCP||69KV||25FT-100FT,AS PER CUSTOMS’ REQUIREMENT||EVERY YEAR|
|GHANA||GHANA ELERCITY COMPANG||10m,11m||2015|
|SAUDI ARABIC||SAUDI ELECTRICITY COMPANY||10M ELECTRIC POLE||2011|
|MORE PROJECT ,PLEASE VISIT OUR WEBSITE OR CONTACT WITH SALES.
|Estabilshed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi ,East of China ,near one of the largest sea port of China ,Shanghai ,Port .Our Products have been widely used in the power transmission ,signal transmission and lighting for street ,road ,square ,palaestra . and so on. We have plenty of export experience . Since our first overseas order from Pakistan in 1991 of 132 KV transmission poles ,our products have been deliveried to more than 70 countries and areas ,including America ,Australia ,Russia ,Genmery ,Span, Philippines ,Malaysia and so on.As an BV ,ISO ,SGS approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .|
Packing & Delivery
Package: Plastic paper or according to clients requirement.
for 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.
1. Price Term: EXW, FOB, CFR or CIF.
The price includes pole shaft, base plate, cross arm and anchor part.
Shipping seaport: Shanghai Seaport. For FOB, CFR or CIF price, please specify which exact model you need, and tell us your order quantity so that we can calculate the local transport charges and sea freight.
2. MOQ: 1 sets.
3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic paper or according to clients requirement.
5. Delivery: for 30 sets, goods can be ready for shipment within 10 workdays after receiving deposit.
6. Parts Design Service Period: 20 years.
