Octagonal Round Power Transmission Poles Electrical Galvanized Steel Electric Pole

China Octagonal Round Power Transmission Poles Electrical Galvanized Steel Electric Pole supplier
Octagonal Round Power Transmission Poles Electrical Galvanized Steel Electric Pole supplier Octagonal Round Power Transmission Poles Electrical Galvanized Steel Electric Pole supplier Octagonal Round Power Transmission Poles Electrical Galvanized Steel Electric Pole supplier Octagonal Round Power Transmission Poles Electrical Galvanized Steel Electric Pole supplier Octagonal Round Power Transmission Poles Electrical Galvanized Steel Electric Pole supplier

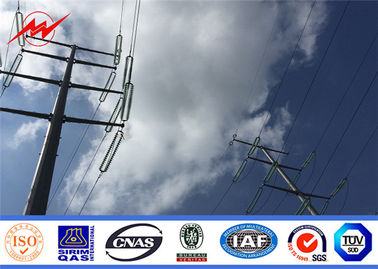

Large Image :  Octagonal Round Power Transmission Poles Electrical Galvanized Steel Electric Pole

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Transmission Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Galvanized Steel Pole Shape: Octagonal Round
Package: Nude Torlance Of Dimenstion: +-2%
Thickness: 1 Mm To 36mm Standard Of Galvanization: ASTM A 123

Power Transmission Electrical galvanized steel electric polein philippines

 Steel

 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

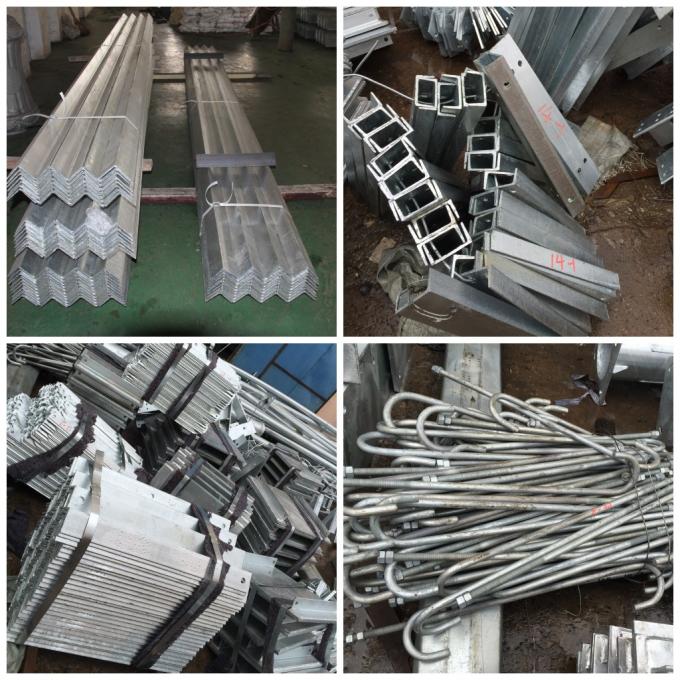

 Standard Accessory
 -Top plate
 -Base plate
 -Bottom strip
 -Standard hole
 -Climbing rung
 -Anchor bolt
 -Bitumen protection
 -Painted marking
 -Removable ladder
 These are the standard accessories of the electric pole.

 Octagonal Round Power Transmission Poles Electrical Galvanized Steel Electric Pole







 Specifications:

Electric Pole Specification In Congo
Height Load(KN) Top Diameter(mm) Bottom Diameter(mm) Wall Thickness(mm) Pole Shape Load Height(mm) Material
8M 2.5 100 210 2.75 8 6.2 Gr65
8M 5 120 290 2.75 8 6.2 Gr65
8M 6.5 130 330 2.75 8 6.2 Gr65
8M 8 170 360 2.75 8 6.2 Gr65
8M 10 180 405 2.75 8 6.2 Gr65
10M 11 145 334 3 12 8 Gr65
11M 6 120 246 3 12 8.9 Gr65

Electric Pole Specification In Congo
11.8M 5 150 355 3 8 9.4 Gr65
11.8M 6.5 180 400 3 8 9.4 Gr65
11.8M 8 190 440 3 8 9.4 Gr65
11.8M 10 190 450 3.5 8 9.4 Gr65
11.8M 12.5 220 500 3.5 8 9.4 Gr65
11.8M 16 230 560 3.5 8 9.4 Gr65
11.8M 20 240 585 4 8 9.4 Gr65
11.8M 25 260 655 4 8 9.4 Gr65
11.8M 32 260 660 5 8 9.4 Gr65







 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

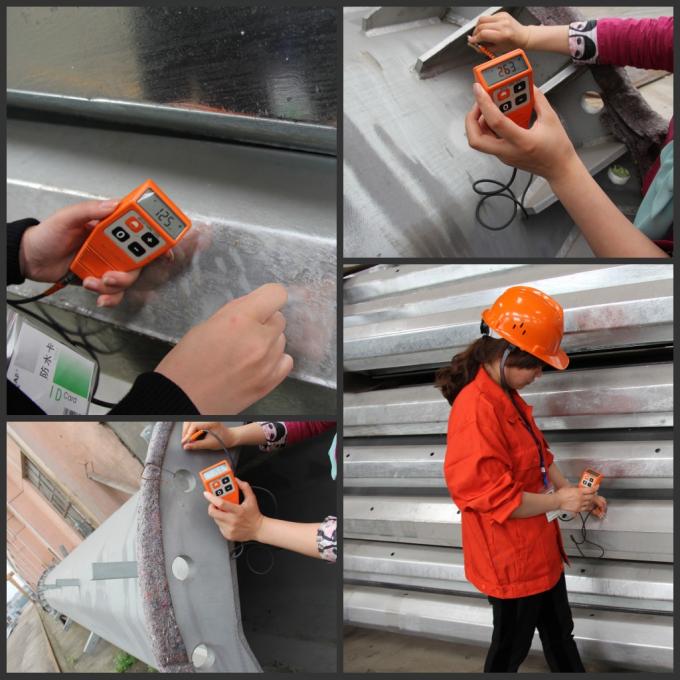

 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

 Octagonal Round Power Transmission Poles Electrical Galvanized Steel Electric Pole





 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm



 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.

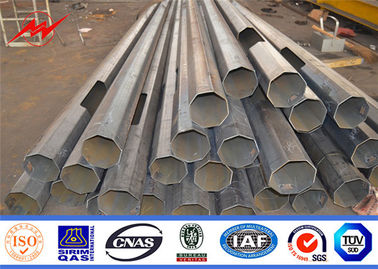

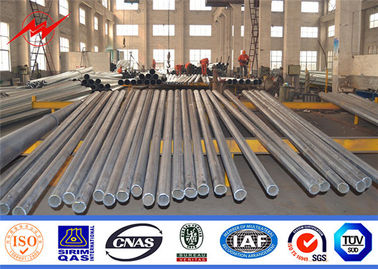

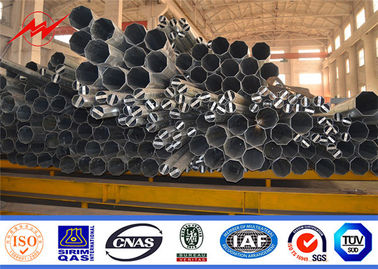

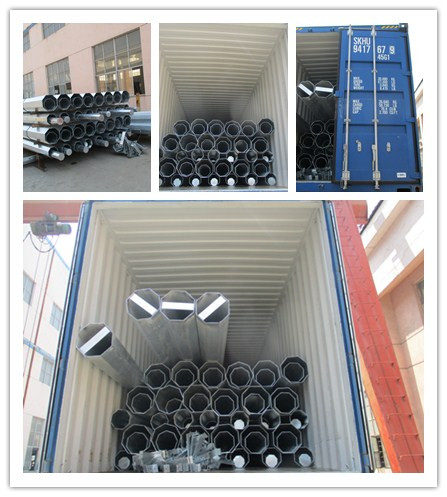

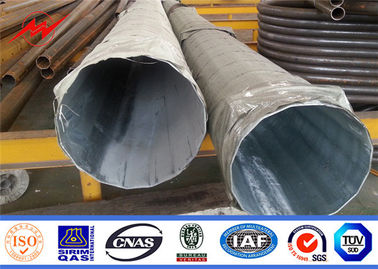

 More Photo
