OEM Communication Steel Tubular Pole Artifical Antenna Tower Cell Camouflaged Pole

China OEM Communication Steel Tubular Pole Artifical Antenna Tower Cell Camouflaged Pole supplier
OEM Communication Steel Tubular Pole Artifical Antenna Tower Cell Camouflaged Pole supplier OEM Communication Steel Tubular Pole Artifical Antenna Tower Cell Camouflaged Pole supplier OEM Communication Steel Tubular Pole Artifical Antenna Tower Cell Camouflaged Pole supplier OEM Communication Steel Tubular Pole Artifical Antenna Tower Cell Camouflaged Pole supplier OEM Communication Steel Tubular Pole Artifical Antenna Tower Cell Camouflaged Pole supplier

Large Image :  OEM Communication Steel Tubular Pole Artifical Antenna Tower Cell Camouflaged Pole

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Tubular Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Tubular Pole Welding Standard: AWSD 1.1
Minimum Ultimate Tensile Strength: 490 Mpa Minimum Yield Strength: 355 Mpa
Wall Thickness: 3mm Warranty: 15 Years

OEM communication steel tubular artifical antenna tower cell camouflaged pole





 Descripition of material:

 Usually?Q345B/A572,minimum yield strength>=345n/mm2
 Q235B/A36,minimum yield strength>=235n/mm2
 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-



 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm





 Specification:



Suit for Electricity distribution
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-
Torlance of the dimenstion +- 2%
Power 10 KV ~550 KV
Safety Factor Safety factor for conducting wine : 8
Safety factor for grounding wine : 8
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required
Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 160 Km/Hour . 30 m /s
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Max ultimate tensile strength 620 mpa
Standard ISO 9001
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 1 mm to 30 mm
Production Process Rew material test → Cuttingj →Molding or bending →
Welidng (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

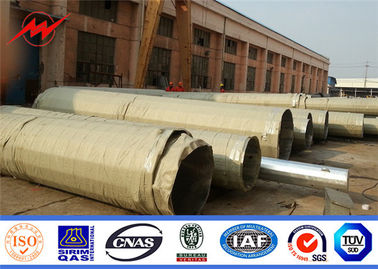

Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Welding
 We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
 Welding Standard :AWS ( American Welding Society ) D 1.1

OEM Communication Steel Tubular Pole Artifical Antenna Tower Cell Camouflaged Pole

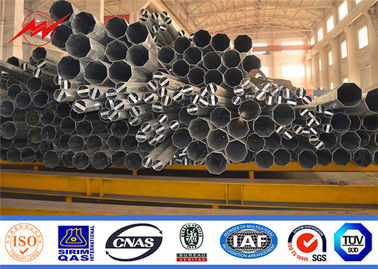

 Surface Treatment
 Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.





 Company Instruction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.
