OEM Outdoor Conical 6m Parking Lot Lighting Pole With Single Bracket

China OEM Outdoor Conical 6m Parking Lot Lighting Pole With Single Bracket supplier
OEM Outdoor Conical 6m Parking Lot Lighting Pole With Single Bracket supplier OEM Outdoor Conical 6m Parking Lot Lighting Pole With Single Bracket supplier OEM Outdoor Conical 6m Parking Lot Lighting Pole With Single Bracket supplier OEM Outdoor Conical 6m Parking Lot Lighting Pole With Single Bracket supplier

Large Image :  OEM Outdoor Conical 6m Parking Lot Lighting Pole With Single Bracket

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO9001
Model Number: Parking Lot Light Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: Naked Package or customerized
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Contact Now
Detailed Product Description
Height: 6m Painting Color: Black Color Or Customer Design
Light Type: LED Light Shape: Square Type
Surface Treatment: Galvanization And Powder Coating Pole Shape: Round,octagonal
Average Gavanzation Thickness: According To The Pole Thickness
High Light:

street lamp pole

,

galvanized street light pole

Outdoor Conical 8m tapered Parking Lot Light Pole with single bracket for area lighting

Quick Information

1) Higher quality and lower cost to win the competitive price
2) 3 production lines to ensure fast delivery
3) Skilled manufacture, quality control and technical team
4) Warranty of quality: more than 20 years
5) OEM, ODM service

Quick Details for Parking Lot Light Pole



 Yield strength of Material

Minimum yield strength >= 235 n/mm2 for Q235, S235 and SS400
Minimum yield strength >= 345 n/mm2 for Q345, S355 and Gr 50

Length of one part

Within 16m once forming without slip joint

Arm diameter

Diameter as 42mm, 48mm, 60mm, 76mm etc., fit any diameter lamp.

Galvanization

Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, ISO: 2626-1985.

Wall thickness tolerance

+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm. +- 0.5mm from 22mm to 30mm

Surface treatment 1

Black pole, Rough pole

Surface treatment 2

Hot dip galvanizing antirust

Surface treatment 3

Hot dip galvanizing with powder coating

Temperature range

-35 °C ~ +45 °C

Wind speed

Aganist wind pressure of 120Km/h to 180Km/h, according to client’s design.

Base plate mounted

Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.

Ground mounted

The length buried underground as per customer’s requirement

Quality control

According to ISO9001-2008 requirements


Prodcut Process

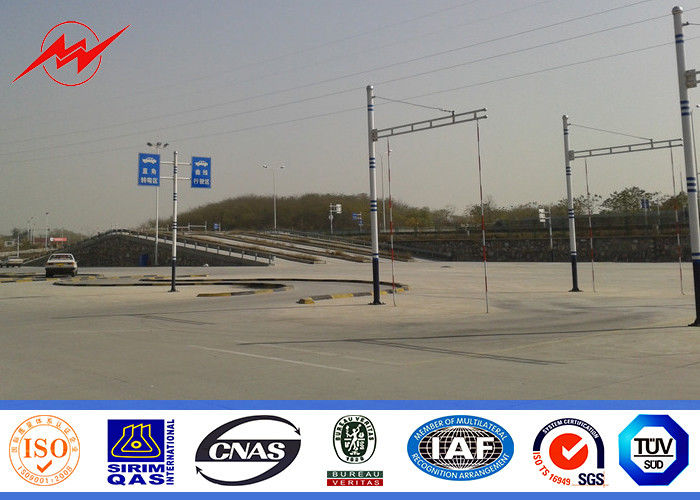

OEM Outdoor Conical 6m Parking Lot Lighting Pole With Single Bracket 0

MATERIAL

Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.
Main Material is Q235,Q345,Gr65 or as specified in the customer specification.

FINISHING

Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.

No welding, cutting or drilling is done after galvanizing.

The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.

Application:



OEM Outdoor Conical 6m Parking Lot Lighting Pole With Single Bracket 1



SHAPE

1. Height:The street lighting Poles of heights from 4m up to 20m covering almost all of the outdoor street lighting requirements, are usually made out of tapered steel shafts with octagonal or conical shape, with dimensions complying with the design structural analysis, international standards requirements, and as per customer requirements.

2. Pole Sections: Only poles with heights up to 12 meters are made from one shaft segment. Poles up to 20m in height are made from two segments with minimum overlap length of 1.5 times the diameter of bottom of the upper segment.

3. Shafts: Shafts are made from steel sheet folded to the required shape and welded longitudinally by automatic arc welding machine.

4. Base Plate: Base plate is square in shape with slotted holes suitable for anchor bolts. Base plate is welded to the bottom of the shaft by double fillet weld, according to International standards.

5. Brackets: The brackets to carry the light fittings are in shape and dimensions complying with the customer requirements and the specifications of the light fittings. Shaft top is equipped with nuts welded to the shaft  as shown on our drawings.

6. Anchor Bolt: Anchor bolts to fix the base plate to the concrete foundation are supplied with the required nuts and washers as per the structural analysis.

7: Service Door: Door opening size and location is as per the customer requirements and its complying with the dimensions of the cut-out. Door opening is reinforced to maintain shaft strength.

8. Lamp:LED light is available or specified in the customer requirement.

OEM Outdoor Conical 6m Parking Lot Lighting Pole With Single Bracket 2

Company:

Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
