Outdoor 80M Galvanized Painting High Mast Pole with Lifting System

China Outdoor 80M Galvanized Painting High Mast Pole with Lifting System supplier
Outdoor 80M Galvanized Painting High Mast Pole with Lifting System supplier Outdoor 80M Galvanized Painting High Mast Pole with Lifting System supplier Outdoor 80M Galvanized Painting High Mast Pole with Lifting System supplier Outdoor 80M Galvanized Painting High Mast Pole with Lifting System supplier

Large Image :  Outdoor 80M Galvanized Painting High Mast Pole with Lifting System

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: High Mast Pole Application: Airport Lighting
Thickness: 1 Mm To 30 Mm Standard: ISO
Gavanization Standard: ASTM A 123 Welding Standard: AWS D 1.1
High Light:

Park Light pole

,

Sports Light Poles

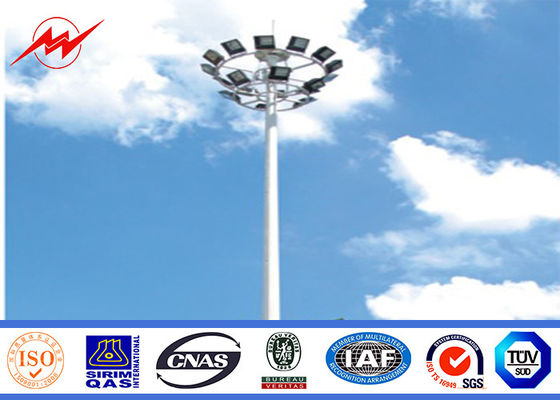

 Outdoor 80M Galvanized Painting High Mast Pole with Lifting System



 Specifications:
 1.Height: 20 m ~ 80 m.
 2.Max length per section: 14 m
 3.Thickness: 2.5mm ~ 30 mm
 4.Shape: Conical or polygongal tapered
 5.Material: Q235B/A283 M Gr.C / SS400/S235 JR / St 37-2 / Fe 360
 Q345B/A572 M Gr. 50/S355 JR / ST 52-3/Fe 510
 6.Lamp Power: 250W ~ 2000W (HPSL / MH)
 7.Lifting system:Lifter fixed in the inner of the pole with lifting speed of 3 ~ 5 meter per minute
 Euqiped with ectromagnetism brake and break-proof device, manual opeation applied under power cut.
 8.Head frame: Our headframe can be designed as per customer requirment to carry camera or industrial  antenna.
 9.Finish: hot dipgalvanization, blasting, powder coating, painting.
 10.Galvanization standard: ASTMA 123 / EN ISO 1461
 11.Welding: AWS D 1.1 / BS EN 1011-1, BS EN 1011-2
 Design: We have our standard pole with our design, OEM and ODM is also accpetable
 Packages: Standard seaworthy
 Delivery time: with two weeks after confirm the order.





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 70μm.





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal )→Di  mension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages



Outdoor 80M Galvanized Painting High Mast Pole with Lifting System 0





 More Photos:

Outdoor 80M Galvanized Painting High Mast Pole with Lifting System 1



Outdoor 80M Galvanized Painting High Mast Pole with Lifting System 2
