Outside Electrical Line Steel Power Pole With Minium Yield Strength 500Mpa

Certification
Good quality Electrical Power Pole for sales
Good quality Electrical Power Pole for sales
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

Outside Electrical Line Steel Power Pole With Minium Yield Strength 500Mpa

China Outside Electrical Line Steel Power Pole With Minium Yield Strength 500Mpa supplier
Outside Electrical Line Steel Power Pole With Minium Yield Strength 500Mpa supplier Outside Electrical Line Steel Power Pole With Minium Yield Strength 500Mpa supplier Outside Electrical Line Steel Power Pole With Minium Yield Strength 500Mpa supplier Outside Electrical Line Steel Power Pole With Minium Yield Strength 500Mpa supplier

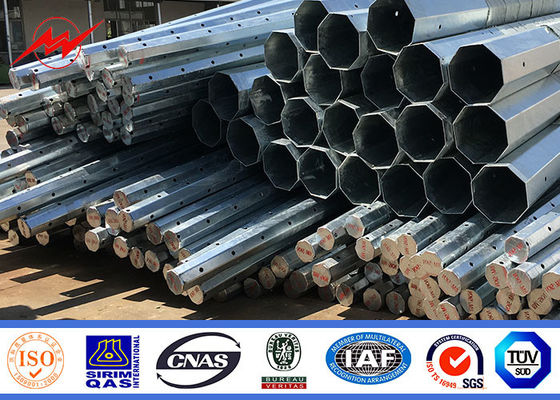

Large Image :  Outside Electrical Line Steel Power Pole With Minium Yield Strength 500Mpa

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO/SGS/BV
Model Number: Steel Power Pole With Minium Yield Strength 500Mpa For Outside Electrical Line

Payment & Shipping Terms:

Minimum Order Quantity: one 40HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Contact Now
Detailed Product Description
Type: Straight Pole, Tensile Pole,turn Pole Thickness: 1mm To 30mm
Power: 10kv~550kv Design Of Pole: Against Earthquake Of 8 Grade
Wind Speed: 160km/h, 30m/s Welding Standard: AWS D 1.1



Steel Power Pole With Minium Yield Strength 500Mpa For Outside Electrical Line



Company Information



Established in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.



We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia , Dominica, Congo, Togo and Guniea so on.



Packaging
Size
40HQ
Weight
26 T
Packaging Details
Our poles as normal cover by sea/road-worthy wooden packing material, anyway also can following by client required, each 40HQ or OT can loading how many pcs will calculation base on the client actually specification and date.



Mechanical Property



The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied

 at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is

 larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when

 breaking is around 2 times of design load.





Galvanization



Standard: NFA91121

Average thickness of the galvanization: Not less than 70



Outside Electrical Line Steel Power Pole With Minium Yield Strength 500Mpa



Maintenance



The hot dip galvanization treatment can increase the service life of the steel pole without the environmental

pollution and no need for other daily maintenance. The following described types are specially designed

for Africa Market which can meet the regulated height and load standard of France electricity power

company.





Production



Our steel pole is bent to form to the polygonal (conical) section firstly. Then it is welded by the automatic

submerged-arc. Then it is welded by the automatic submerged-arc welding machine.



Thirdly the top cap, strip and base plate will be welded to the pole. And finally other accessories (support

brackets, ladder support, etc.) will be welded to the pole shaft.





Manufacturer Tolerance



- Component Length: -25mm to 75mm

- Straightness: 2mm/m

- Twisting degree: 1̊ per 3 meters length

- Ovalisation : Maximum is 3%

- The average diameter : +/-0.5%

-Slip length: +/-150mm





Mechanical Property



The metal supports are designed to withstand the nominal force F and the pressure of the wind V applied

at 0.25m from the top. Under these loads, the safety factor with respect to the elastic limit of the steel is

larger than 1.8. The post also resists a torque equal to (F+V) ×1m. Tests shows the load intervened when

breaking is around 2 times of design load.



Outside Electrical Line Steel Power Pole With Minium Yield Strength 500Mpa
