Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole

China Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole supplier
Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole supplier Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole supplier Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole supplier Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole supplier Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole supplier

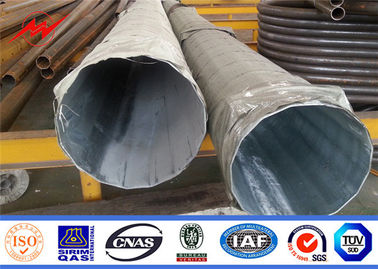

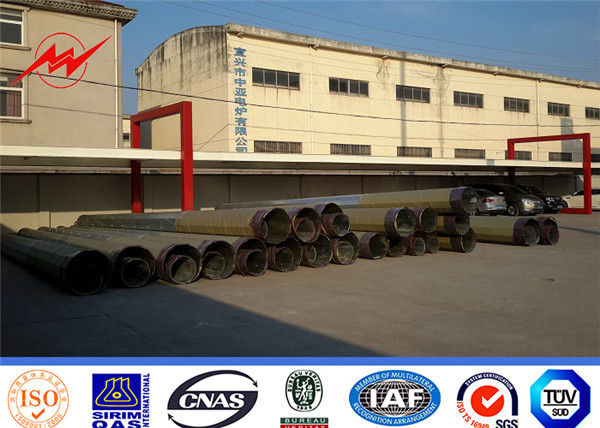

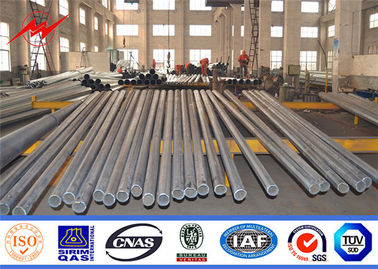

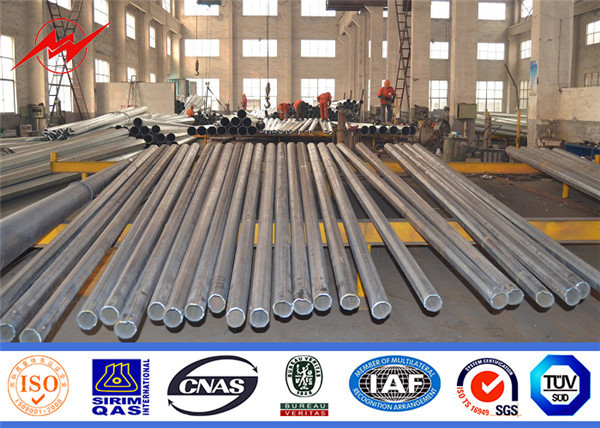

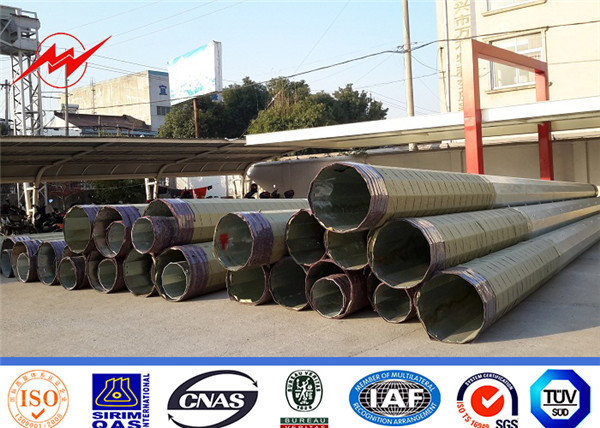

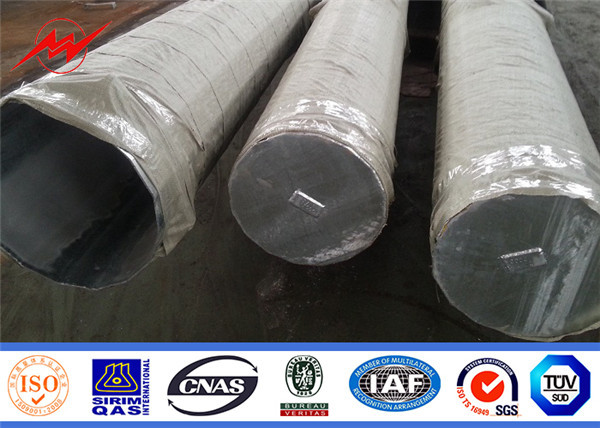

Large Image :  Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: Galvanized Electrical Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: Galvanized Electrical Power Pole Application: Electrical Power Distribution
Welding Standard: AWS D 1.1 Wall Thickness: 1-36mm
Waranty Time: 15 Years Material: Q345
High Light:

steel power pole

,

transmission line poles



Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole



 Specifications:



 Height

From 9 meter to 100 meter

Suit for

Electric Power Transmission and Distribution

Shape

Polygonal or Conical

Material

Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

                  Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Power Capacity

10kV to 220kV

Tolerance of the dimension

According to client’s requirement.

Surface treatment

Hot dip galvanized Following ASTM A 123, or any other standard

by client required.

Joint of Poles

Slip joint, flanged connected

Standard

ISO 9001:2008

Length of per section

Within 14 meter once forming

Welding Standard

AWS (American Welding Society ) D 1.1

Thickness

1 mm to 36mm

Production Process

Raw material test → Cutting →bending →Welding (longitudinal )

→Dimension verify →Flange welding →Hole drilling →sample

assemble → surface clean→ Galvanization or powder coating ,

painting →Recalibration →Packages

Packages

Packing with plastic paper or according to client’s request.





 Steel

 Descripition of material:The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

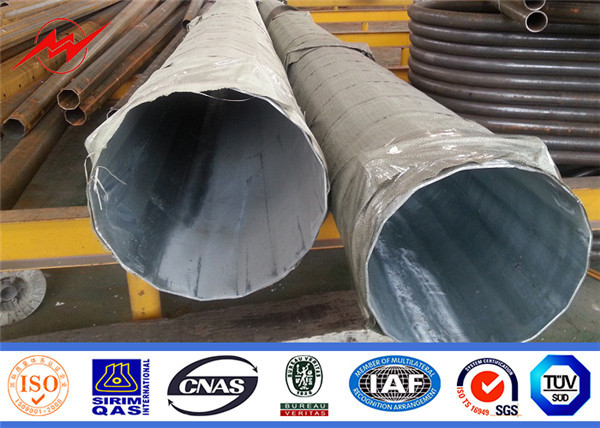

 Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole 0



 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

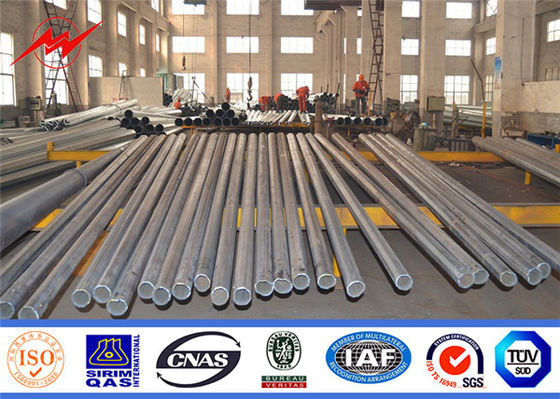

 Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole 1





 Installation
 -Remove all the equipment on the pole during Assembly.
 -Circle a sling around th epole shaft of each section.
 -Fix the sling on top section to one pulley block.
 -The sling on the bottom section is tightly fixed and fixed at the center of gravity.
 -Make the steel pole vertical by tighten the sling of the top section.
 -Fix the steel pole.
 -Remove the sling.

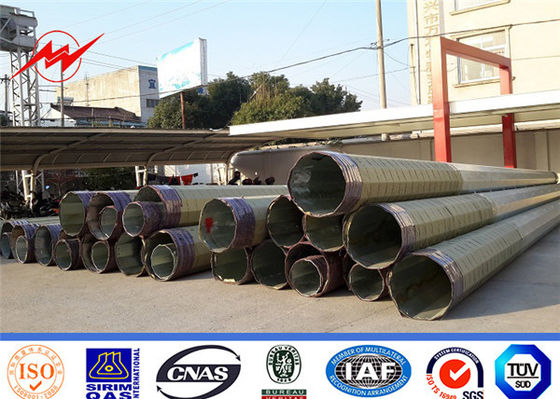

 Philippines Telescopic Electrical Power Pole , Galvanized Steel Tubular Pole 2



 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
