Plaza 12 Lamps Circle 30M High Mast Light Pole , 14 m Square Light Poles

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

Plaza 12 Lamps Circle 30M High Mast Light Pole , 14 m Square Light Poles

China Plaza 12 Lamps Circle 30M High Mast Light Pole , 14 m Square Light Poles supplier
Plaza 12 Lamps Circle 30M High Mast Light Pole , 14 m Square Light Poles supplier Plaza 12 Lamps Circle 30M High Mast Light Pole , 14 m Square Light Poles supplier Plaza 12 Lamps Circle 30M High Mast Light Pole , 14 m Square Light Poles supplier Plaza 12 Lamps Circle 30M High Mast Light Pole , 14 m Square Light Poles supplier

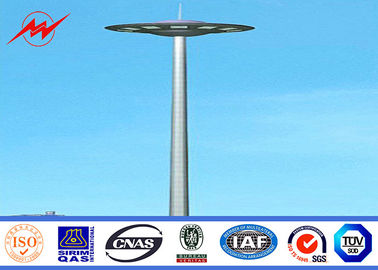

Large Image :  Plaza 12 Lamps Circle 30M High Mast Light Pole , 14 m Square Light Poles

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: High Mast Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: High Mast Pole Application: Park Lighting
Wind Speed: 33m/s Galvanization Thickness: Average 86μm
Thickness: 1 Mm To 30 Mm Flood Light: 500W
High Light:

Park Light pole

,

Sports Light Poles

 Circle 30M HDG High Mast Pole with 12 Lamps for Plaza Lighting





 Specifications:



Height

20m-80m

Max length per section

14 m

Thickness

2.5mm~30 mm

Shape

Conical or polygongal tapered

Material

Q235B/A36/A283 M Gr.C /SS400/S235 JR/St 37-2 /Fe 360

Lamp Power

9 W~800 W  (HPS/MH)

Electroshock resistant protective grade

Grade  Ⅰ

Finish

hot dipgalvanization ,blasting,powder coating ,painting

Galvanization standard

ASTMA 123 / EN ISO 1461

Welding

AWS D 1.1 /BS EN 1011-1,BS EN 1011-2

Joint of Poles

Insert mode,innerflange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Lifting system

Lifter fixed in the inner of the pole with lifting speed of

3 ~ 5 meter per minute

Euqiped with ectromagnetism brake and break-proof device, manual

 opeation applied under power cut.

Head frame

Our headframe can be designed as per customer requirment

to carry camera or industrial antenna.





 Descripition of material:


 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped  vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel



 Feature:


 Special designed for stadium to provide high-power, large-area lighting for facilities; Lighthouse is  devided into fixed or lift, fixed poles set up an escalator inside for installation and maintenance purposes
 Light source :400w-1000w sodium light

 Plaza 12 Lamps Circle 30M High Mast Light Pole , 14 m Square Light Poles 0





 Applications:



Plaza High Mast Lighting pole

Airport High Mast Lighting pole

Highway High Mast Lighting pole

Storage-yard High Mast Lighting pole

Industrial-plant High Mast Lighting pole

Park High Mast Lighting tower

Dock High Mast Lighting tower

Stadiums High Mast Lighting tower

Overpass High Mast Lighting tower

Toll-station High Mast Lighting tower

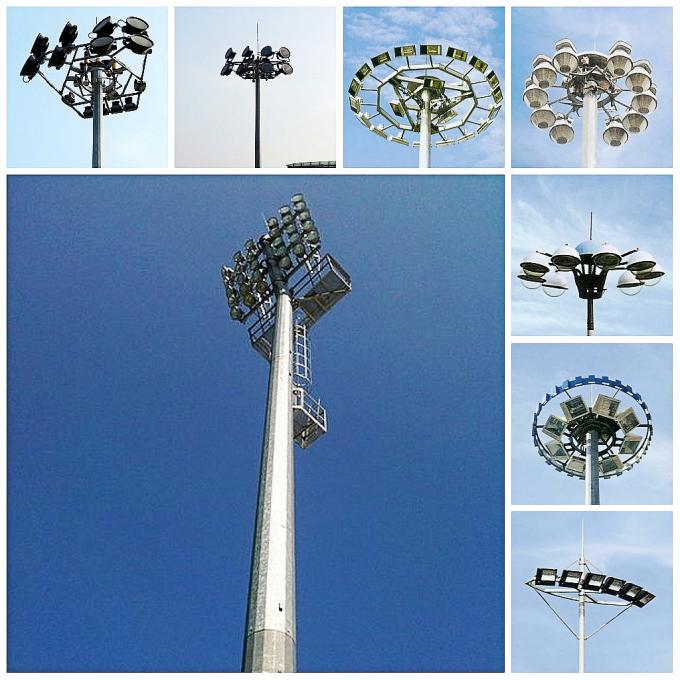

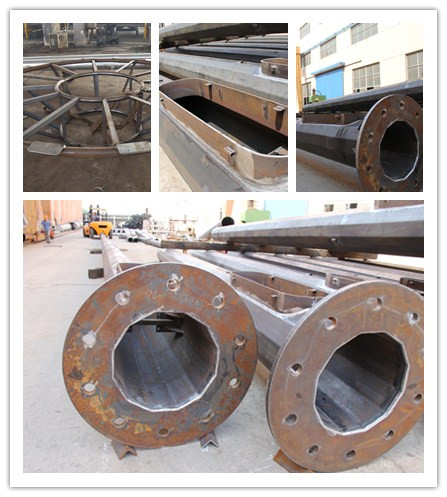

 More Pictures:

 Plaza 12 Lamps Circle 30M High Mast Light Pole , 14 m Square Light Poles 1
