polygonal or conicla high voltage Electrical Power Pole for transmission line

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

polygonal or conicla high voltage Electrical Power Pole for transmission line

China polygonal or conicla high voltage Electrical Power Pole for transmission line supplier
polygonal or conicla high voltage Electrical Power Pole for transmission line supplier polygonal or conicla high voltage Electrical Power Pole for transmission line supplier polygonal or conicla high voltage Electrical Power Pole for transmission line supplier polygonal or conicla high voltage Electrical Power Pole for transmission line supplier

Large Image :  polygonal or conicla high voltage Electrical Power Pole for transmission line

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: CE/BV/
Model Number: polygonal or conicla high voltage Electrical Power Pole for transmission line

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: as per customers' request
Delivery Time: 20 days after paying the deposit
Payment Terms: T/T, L/C
Supply Ability: 300 per week
Detailed Product Description
Type: Polygonal Or Conicla High Voltage Electrical Power Pole For Transmission Line Welding: AWS D1.1
Galvanization Standard: ASTM A123 Color: Any
Certificate: ISO 9001 Life Time: 50 Years
Warrenty: 15 Years Tolerance: +/-2%
Material: Steel
High Light:

metal power poles

,

steel utility poles

polygonal or conicla high voltage Electrical Power Pole for transmission line


Specifications:


Type

Straight Pole ,Tensile Pole ,Turn Pole

Suit for

Electricity distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
                Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
 SS490, to ST52-

Lamp power

20 W- 400 W  (HPS/MH)
220V (+-10%) /50Hz

Torlance of the dimenstion

+- 2%

Power

10  KV ~550 KV

Safety Factor

Safety factor for conducting wine : 8
Safety factor for grounding wine : 8

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Marks

Nane palte through rivert or glue ,engrave ,emboss as per customer
requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,color polyester power or any
other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour

Minimum yield strength

355 mpa

Minimum ultimate tensile
strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes the
welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Rew material test → Cuttingj →Molding or bending
→Welidng (longitudinal )
→Dimension verify →Flange welding →Hole drilling →Calibration
→ Deburr→Galvanization or powder coating ,painting →Recalibration
 →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required ,
 each 40HC or OT can loading how many pcs will calculation base on the
client actually specification and data.

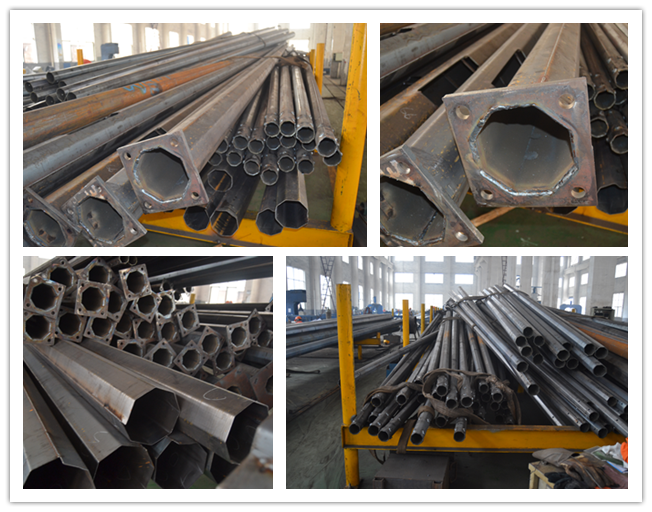

polygonal or conicla high voltage Electrical Power Pole for transmission line 0

Description:

Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.

 We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on

Packaging & shipping:

Our poles as normal cover by Mat or straw bale at the top and bottom  and wood between the poles to avoide the damage on the galvanization of the pole  ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.
Production Process:
As an BV ,ISO , approved supplier in China ,we have more than 20 years produce and export steel pole ,and we can assure the pole we offered is of sound quality which made from qualified material with our professional workers and advance equipment .

polygonal or conicla high voltage Electrical Power Pole for transmission line 1
Material:

All of our material are purchased from famous mill factory to assure the quality.

1.A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .

2.Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.

Inspection:

To assure our products qualified ,we take steps as follows :
1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .
2.Introducing ISO management ,We are awared ISO 9001:2008 certificate.
3.QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment.

polygonal or conicla high voltage Electrical Power Pole for transmission line 2

Design and Detail :

Lofting and design software :We have transmisson power pole design software which can help us design all kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the drawing accuratly.
