Polygonal Round Outdoor Galvanized Steel Pole 66kV With AWS D 1.1 Welding Standard

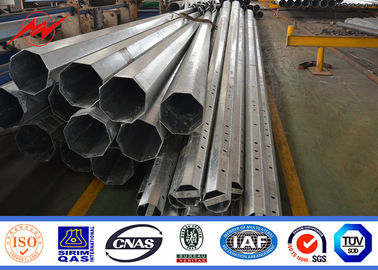

Large Image : Polygonal Round Outdoor Galvanized Steel Pole 66kV With AWS D 1.1 Welding Standard

Product Details:

Place of Origin:	China
Brand Name:	MilkyWay
Certification:	ISO9001/BV/
Model Number:	Transmission Steel Power Pole

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	As customer request
Delivery Time:	20 working days after received your payment
Payment Terms:	T/T, L/C at sight
Supply Ability:	300pcs per day

Contact Now

Detailed Product Description

Product Name:	Galvanized Steel Pole	Shape:	Polygonal Round
Power Capacity:	10kV - 220kV	Welding Standard:	AWS D 1.1
Thickness:	1 Mm To 36mm	Warranty Time:	15 Years
High Light:	galvanized light pole , power distribution poles

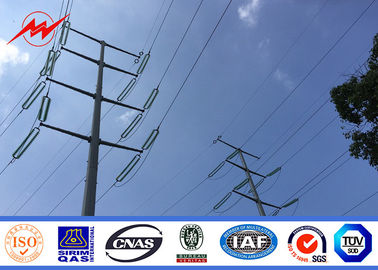

Outdoor 66kV Galvanized Steel Power Pole Electric Pole With Cross Arm

Steel

1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-shaped vertical steel barwith hot galvanized anti-corrosion treatment
2. Light plate frame is made by high-quality stainless steel
3. Fastened bolts and nuts of stainless steel

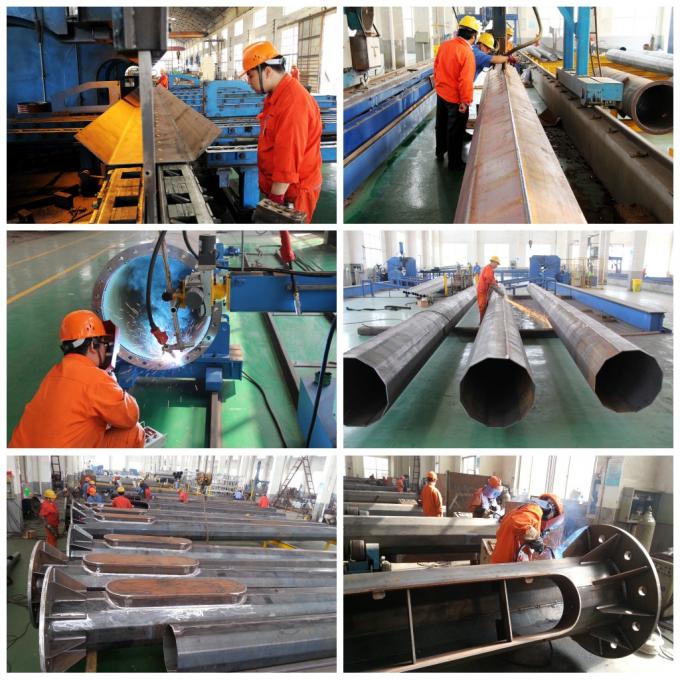

Welding
We have past flaw testing. Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Polygonal Round Outdoor Galvanized Steel Pole 66kV With AWS D 1.1 Welding Standard 0

Surface Treatment
Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Specifications:

Distribution Range
Product Code	Length	ULS	Pole Dimension
Product Code	Length	ULS	Top	Base
11M 13.5KN	11M	13.5kN	160	328
12.5M 12KN	12.5M	12KN	160	340
12.5M 16KN	12.5M	16KN	180	380
12.5M 24KN	12.5M	24KN	200	420
14M 16KN	14M	16KN	190	402
14M 24KN	14M	24KN	210	465
15.5M 12KN	15.5M	12KN	160	405
15.5M 24KN	15.5M	24KN	210	500
Note:Tapered 12-sided, direct buried Pole deflection less than 5% of pole height at 50% ULS

Sub Transmission Range
Product Code	Length	ULS	Pole Dimension
Product Code	Length	ULS	Top	Base
18.5M 24KN	18.5M	24KN	210	660
18.5M 40KN	18.5M	40KN	260	730
21M 40KN	21M	30KN	220	697
21M 40KN	21M	40KN	260	795
24M 30KN	24M	30KN	220	755
24M 40KN	24M	40KN	300	760
Note:Tapered 12-sided, direct buried

Installation
-Remove all the equipment on the pole during Assembly.
-Circle a sling around th epole shaft of each section.
-Fix the sling on top section to one pulley block.
-The sling on the bottom section is tightly fixed and fixed at the center of gravity.
-Make the steel pole vertical by tighten the sling of the top section.
-Fix the steel pole.
-Remove the sling.

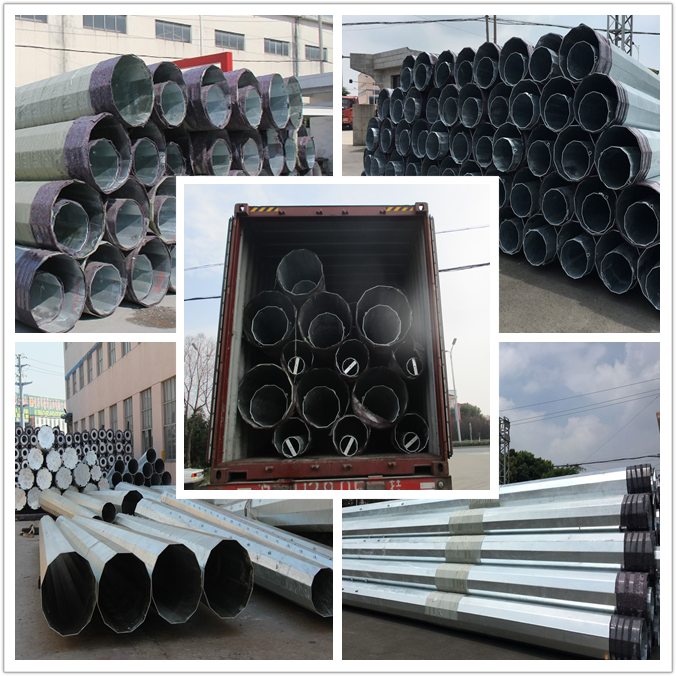

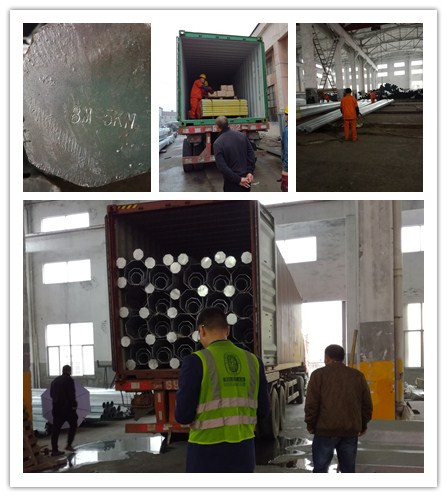

Loading:

Overseas Project For Electric Pole

Overseas Project For Electric Pole
Country	Utility Name	Voltage Level	Type	Year of supply
Philippines	NEA,NGCP	69KV	25FT-100FT,According to customer requirement	Every Month
Costa Rica	Electric Pole		10M,11M	Every Month
Congo	Electric Pole		8M,10M	Every Month
Ghana	Ghana Elercity Company		11m,12m	2016
Ghana	Ghana Elercity Company		10m,11m	2015
Pakistan	Wapda	132kv	SPA,SPD,SPG	2013
Saudi Arabic	Saudi Electricity Company		10m electric pole	2011
Ecuador	Celec	138kv	PP-B40	2009
More project,please visit our website or contact with our sales to get more information.

Quality Control
We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production to ensure the product compliance to the specification/standards. Careful inspections are carried out by highly trained inspection engineers during every procedure from raw material stage to finished product and delivery.

Polygonal Round Outdoor Galvanized Steel Pole 66kV With AWS D 1.1 Welding Standard 2
