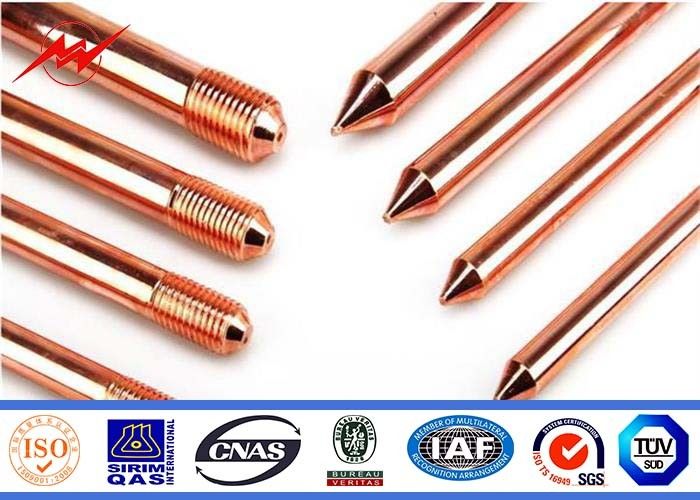

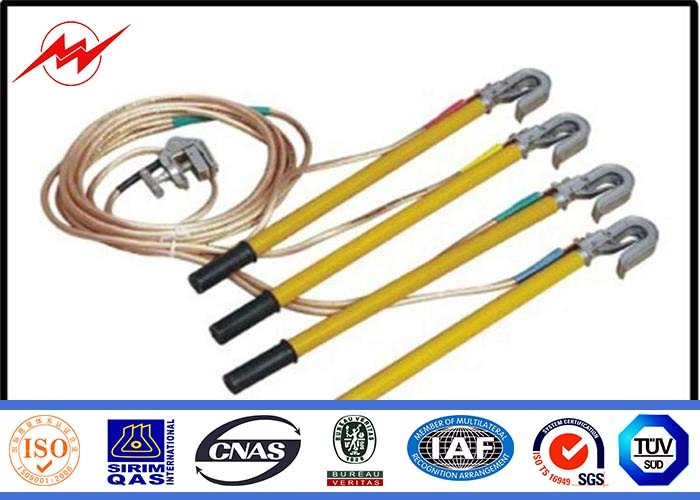

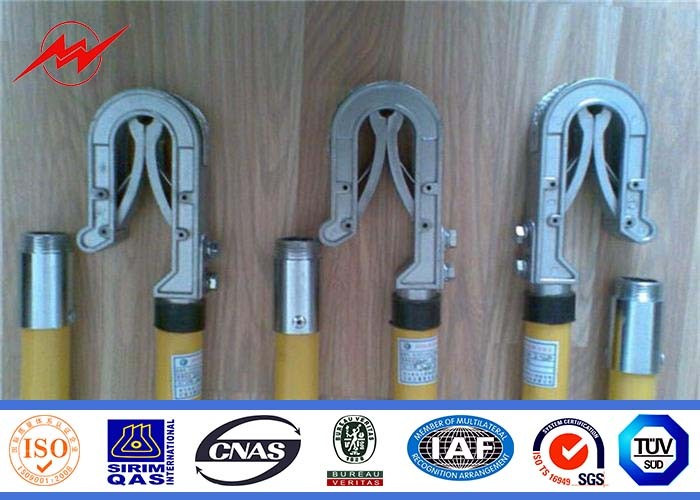

Customized copper clad steel ground rod with all kinds of clamps
Specifications:
| Ground Rod Size List |
| Small Size |
| Model |
Diameter |
Copper Thickness |
Length |
N.W. |
Packing |
| inch |
mm |
Mil |
mm |
Feet |
mm |
kgs/pc |
pc/bundles |
| YH-8 |
|
8 |
10 |
0.254 |
3 |
900 |
0.45 |
20 |
| YH-8 |
|
8 |
10 |
0.254 |
4 |
1200 |
0.45 |
20 |
| YH-8 |
|
8 |
10 |
0.254 |
5 |
1500 |
0.45 |
20 |
| YH-9 |
|
9 |
10 |
0.254 |
3 |
900 |
0.57 |
20 |
| YH-9 |
|
9 |
10 |
0.254 |
4 |
1200 |
0.57 |
20 |
| YH-9 |
|
9 |
10 |
0.254 |
5 |
1500 |
0.57 |
20 |
| YH-10 |
|
10 |
10 |
0.254 |
3 |
900 |
0.7 |
20 |
| YH-10 |
|
10 |
10 |
0.254 |
4 |
1200 |
0.7 |
20 |
| YH-10 |
|
10 |
10 |
0.254 |
5 |
1500 |
0.7 |
20 |
| YH-11 |
|
11 |
10 |
0.254 |
3 |
900 |
0.85 |
20 |
| YH-11 |
|
11 |
10 |
0.254 |
4 |
1200 |
0.85 |
20 |
| YH-11 |
|
11 |
10 |
0.254 |
5 |
1500 |
0.85 |
20 |
| YH-12 |
|
12 |
10 |
0.254 |
3 |
900 |
1.01 |
20 |
| YH-12 |
|
12 |
10 |
0.254 |
4 |
1200 |
1.01 |
20 |
| YH-12 |
|
12 |
10 |
0.254 |
5 |
1500 |
1.01 |
20 |
| YH-13 |
|
13 |
10 |
0.254 |
3 |
900 |
1.18 |
20 |
| YH-13 |
|
13 |
10 |
0.254 |
4 |
1200 |
1.18 |
20 |
| YH-13 |
|
13 |
10 |
0.254 |
5 |
1500 |
1.18 |
20 |
| YH-13 |
|
13 |
10 |
0.254 |
6 |
1800 |
1.18 |
20 |
| YH-14 |
5/8 |
14..2 |
10 |
0.254 |
4 |
1200 |
1.54 |
20 |
| YH-14 |
5/8 |
14.2 |
10 |
0.254 |
6 |
1800 |
2.3 |
10 |
| YH-14 |
5/8 |
14.2 |
10 |
0.254 |
8 |
2400 |
3.07 |
10 |
| YH-14 |
5/8 |
14.2 |
10 |
0.254 |
10 |
3000 |
3.84 |
10 |
| YH-14 |
5/8 |
14.2 |
10 |
0.254 |
20 |
6000 |
7.68 |
5 |
| YH-16 |
|
14.2 |
10 |
0.254 |
4 |
1200 |
1.95 |
10 |
| YH-16 |
|
16 |
10 |
0.254 |
6 |
1800 |
2.93 |
10 |
| YH-16 |
|
16 |
10 |
0.254 |
8 |
2400 |
3.9 |
10 |
| YH-16 |
|
16 |
10 |
0.254 |
10 |
3000 |
4.88 |
10 |
| YH-16 |
|
16 |
10 |
0.254 |
20 |
6000 |
9.75 |
5 |
| YH-17 |
3/4 |
17.2 |
10 |
0.254 |
4 |
1200 |
2.25 |
10 |
| YH-17 |
3/4 |
17.2 |
10 |
0.254 |
6 |
1800 |
3.38 |
10 |
| YH-17 |
3/4 |
17.2 |
10 |
0.254 |
8 |
2400 |
4.51 |
10 |
| YH-17 |
3/4 |
17.2 |
10 |
0.254 |
10 |
3000 |
5.64 |
7 |
| YH-17 |
3/4 |
17.2 |
10 |
0.254 |
20 |
6000 |
11.27 |
5 |
| YH-18 |
|
18 |
10 |
0.254 |
4 |
1200 |
2.47 |
10 |
| YH-18 |
|
18 |
10 |
0.254 |
10 |
3000 |
6.17 |
7 |
| YH-18 |
|
18 |
10 |
0.254 |
20 |
6000 |
12.34 |
5 |
| YH-20 |
|
20 |
10 |
0.254 |
6 |
1800 |
4.57 |
10 |
| YH-20 |
|
20 |
10 |
0.254 |
8 |
2400 |
6.1 |
10 |
| YH-20 |
|
20 |
10 |
0.254 |
10 |
3000 |
7.62 |
7 |
| YH-20 |
|
20 |
10 |
0.254 |
20 |
6000 |
15.24 |
5 |
| YH-20 |
|
20 |
10 |
0.254 |
8 |
2400 |
6.1 |
10 |
| YH-22 |
|
22 |
10 |
0.254 |
10 |
3000 |
9.22 |
7 |
| YH-22 |
|
22 |
10 |
0.254 |
6 |
1800 |
5.53 |
10 |
| YH-25 |
|
25 |
10 |
0.254 |
8 |
2400 |
9.53 |
10 |
| YH-25 |
|
25 |
10 |
0.254 |
10 |
3000 |
11.91 |
7 |
| YH-25 |
|
25 |
10 |
0.254 |
20 |
6000 |
23.81 |
5 |
| Also supply copper layer thickness 0.33mm,0.5mm and 1.0mm |
| Also supply any length shorter than 6000mm |
Description:
Copper bonded ground rod is mainly used in the grounding device. Due to its good conductivity, corrosion resistance, tensile strength, low prices, etc.,
Copper bonded ground rod can be widely used, and have been recognized by the United States Institute of Electrical and Electronics Engineering (IEEE) standard, BS standard and International Electrotechnical Commission (IEC) standards.
In China, have been recognized in China Sinopec, China National Petroleum, the national electricity company, and gradually be widely used.

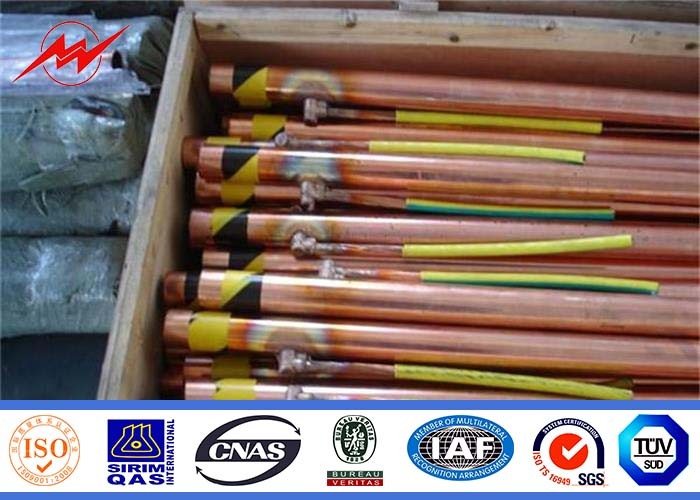

Packaging & Shipping:
Strong packing is available and free of charge ,which is suitable for loading, storage in most popular
condition .Custom packing will be charged reasonably to favor customer’s requirement .
Company introduction:
Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on.
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on.
