Professional Galvanized Mono Pole Tower Conical Shape With Anchor Bolt

China Professional Galvanized Mono Pole Tower Conical Shape With Anchor Bolt supplier
Professional Galvanized Mono Pole Tower Conical Shape With Anchor Bolt supplier Professional Galvanized Mono Pole Tower Conical Shape With Anchor Bolt supplier Professional Galvanized Mono Pole Tower Conical Shape With Anchor Bolt supplier Professional Galvanized Mono Pole Tower Conical Shape With Anchor Bolt supplier

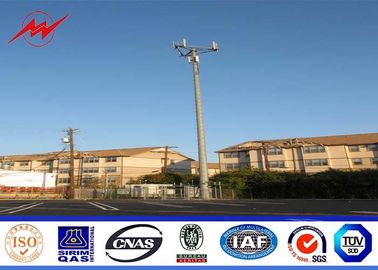

Large Image :  Professional Galvanized Mono Pole Tower Conical Shape With Anchor Bolt

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Mono Pole Tower

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Galvanized Steel 90FT Mono Pole Tower Application: Communication Distrubution
Design: Customized Dimension Torlance: +- 2%
Welding Standard: AWS D 1.1 /BS EN 1011-1,BS EN 1011-2 Galvanization Standard: ASTM A 123
High Light:

monopole transmission tower

,

monopole cell tower

Professional Galvanized Mono Pole Tower Conical Shape With Anchor Bolt





 Description:



 Steel monopole consists of tower body and platform. There is an opening on the bottom level of tower  body and another opening up to the same level with platform. The ladder is fixed to the handrail of  platform. Monopole is characterized by the ladder and feeders which are installed inside the tower body.  Protected from the wind and rain and other natural environmental destructive factors, it is convenient for  maintenance and long-life use.





 Specifications:



Suit for

Communication distribution

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,
SS490, to ST52-

Marks

Name plate through rivert or glue ,engrave ,emboss

as per customer requirement

Surface treatment

Hot dip galvanized Following ASTM A 123,
color polyester power or any other standard by client required

Joint of Poles

Insert mode,inner flange mode,face to face joint mode

Design of pole

Against earthquake of 8 grade

Wind Speed

160 Km/Hour .  30 m /s

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max ultimate tensile strength

620 mpa

Standard

ISO 9001

Length of per section

Within 14m once forming without slip joint

Welding

We has past flaw testing.Internal and external double welding makes
the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1 mm to 30 mm

Production Process

Row material test → Cutting →Molding or bending →
Welding (longitudinal )→Dimension verify →Flange welding
→Hole drilling →Calibration → Deburr→Galvanization or
powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,
anyway also can following by client required , each 40HC or OT can
loading how many pcs will calculation base on the client actually
specification and data





 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

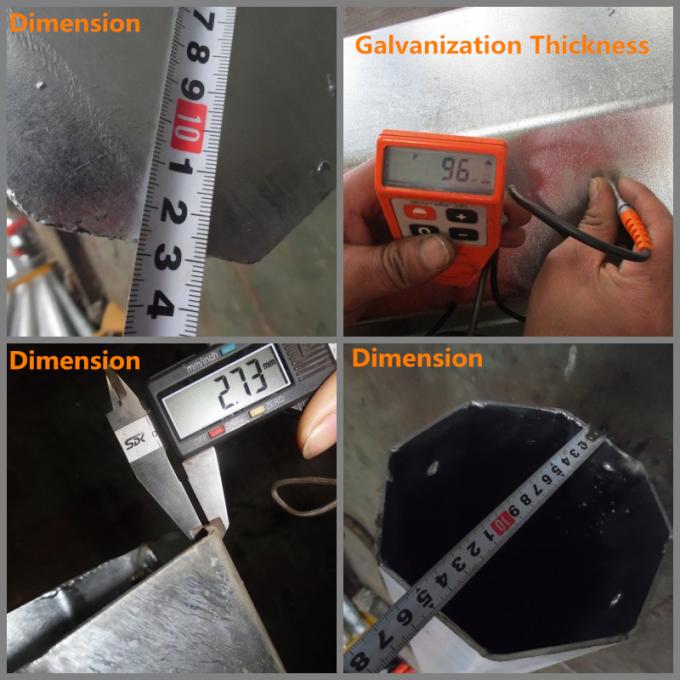

 Professional Galvanized Mono Pole Tower Conical Shape With Anchor Bolt 0





 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

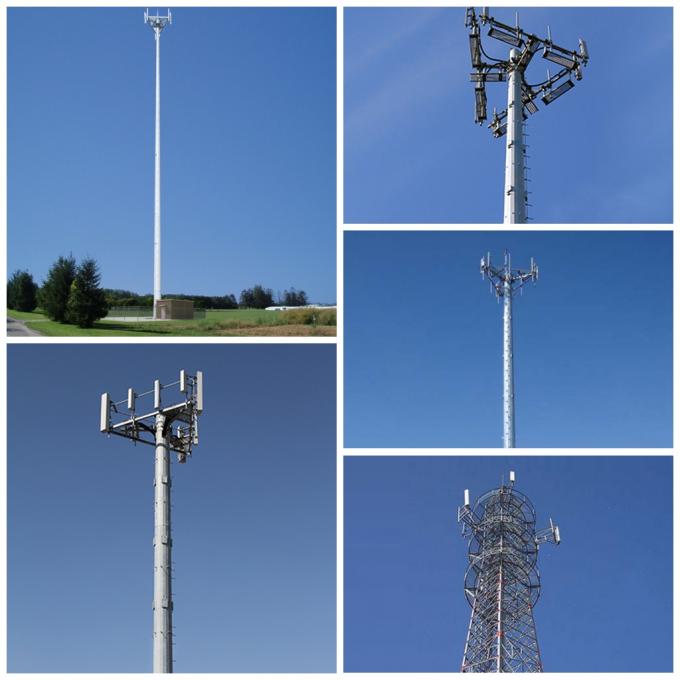

 Professional Galvanized Mono Pole Tower Conical Shape With Anchor Bolt 1



 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm
