Q235 12m electrical Steel Utility Pole for power transmission

China Q235 12m electrical Steel Utility Pole for power transmission supplier
Q235 12m electrical Steel Utility Pole for power transmission supplier Q235 12m electrical Steel Utility Pole for power transmission supplier Q235 12m electrical Steel Utility Pole for power transmission supplier Q235 12m electrical Steel Utility Pole for power transmission supplier

Large Image :  Q235 12m electrical Steel Utility Pole for power transmission

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO, BV,
Model Number: Q235 12m electrical Steel Utility Pole for power transmission

Payment & Shipping Terms:

Minimum Order Quantity: one 40 HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Detailed Product Description
Type: Straight Pole, Tensile Pole, Turn Pole Standard: ASTM A 123
Power: 10kv~550kv Design Of Pole: Against Earthquake Of 8 Grade
Torelance Of Dimenstion: +- 2% Wind Speed: 160km/h, 30m/s
High Light:

electrical power poles

,

high voltage pole

Specification



Available height

5-80m

Electric pressure

10kv--550kv

Material

Q345B/A572,minimum yield   strength>=345MPA,
  Q235B/A36,minimum yield strength>=235MPA

Galvanized

Hot dip galvanization,thickness   is>=12um

Delivery lead time

30 days after receiving 30% deposit

Lifetime

Minimum 25 years

Structure

Overlap connection/Flange connection

Galvanizing standard

EN ISO 146,ASTM/A123

Manufacturing and workmanship

BS449 or AISC

Welding standard

BSEN287,BSEN288 or equivalent

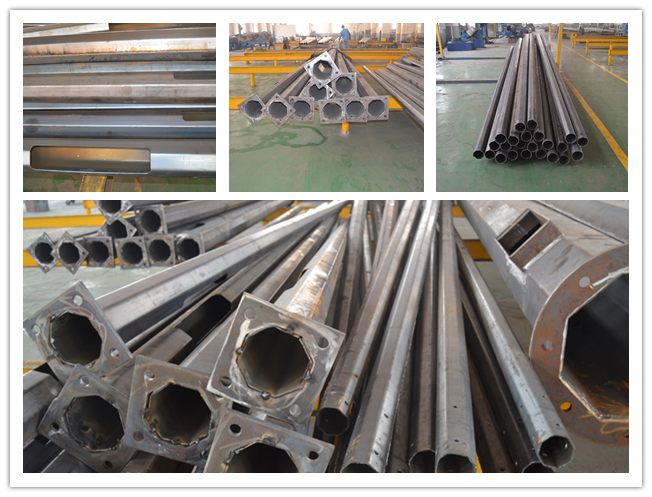

Q235 12m electrical Steel Utility Pole for power transmission 0



Packaging & Shipping


Our poles as normal cover by Mat or straw bale at the top and bottom  and wood between the poles to avoide the damage on the galvanization of the pole  ,anyway also can following by client required , The loading capacity of 40HC or OT an be calulated calculation base on the client actually specification and data.

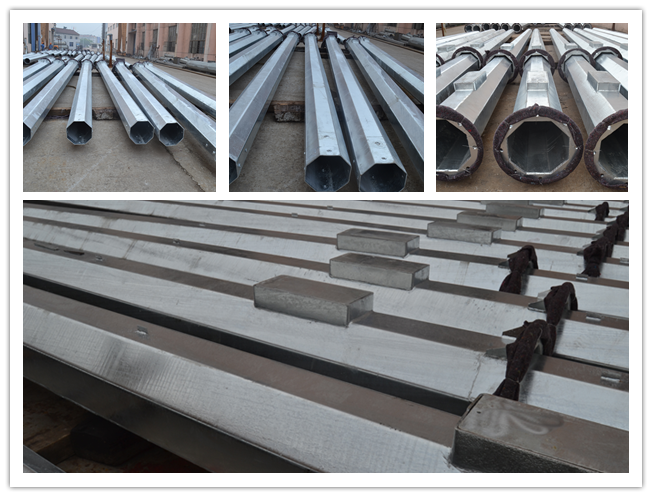

Q235 12m electrical Steel Utility Pole for power transmission 1



Material



All of our material are purchased from famous mill factory to assure the quality

  1. A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
  2. Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.

Q235 12m electrical Steel Utility Pole for power transmission 2
