Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road

Certification
Good quality Electrical Power Pole for sales
Good quality Electrical Power Pole for sales
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road

China Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road supplier
Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road supplier Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road supplier Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road supplier Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road supplier

Large Image :  Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Galvanized Steel Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Galvanized Steel Pole Power Supply: Solar/AC
Welding Standard: AWS D 1.1 Material: Q345
Anchor Bolts: Customization Available Dimenstion Torlance: +- 2%
Finish: Black Steel

 Galvanized Round Road High Mast Galvanized Street Light Pole





 Specifications:



  Material:

Hot rolled steel, Q235,Q345,S235,S355,SS400,Gr 50

Yield strength of Material:

Minimum yield strength>=235n/mm2 for Q235, S235  and SS400

Minimum yield strength>=345n/mm2 for Q345 S355  and Gr 50

Pole’s height:

3m –15m

Length of one part

Within 16m once forming without slip joint

Wall thickness:

2.3mm-30mm

Pole's Shape Can be made:

Round, Polygonal, Taper Octagonal, Taper round, Round conical,

Taper Square, Square.

Arm type can be made:

Single arm, Double arm, Tri-arm, Four-arm

Arm Diameter:

Diameter as 42mm, 48mm, 60mm, 76mm and etc, can fit to any

diameter’s lamps.

Power:

250W to 400W

Welding

Advanced submerge-arc welding and CNC welding equipment.

It has past flaw testing, internal and external double welding

makes the welding beautiful in shape. It confirms with the

international welding standard of CWB and AWS D 1.1

Galvanization:

Hot dip galvanization with thickness of 80-100µm average

in accordance with Chinese standardGB/T 13912-2002 or

American standard ASTM A123, ISO: 2626-1985.

Manufactury Capacity Per Day:

250

Wall thickness Tolerance:



+- 0.1mm from 2.3mm to 4mm. +- 0.2mm from 5mm to 20mm.

+- 0.5mm from 22mm to 30mm

Painting color:

(RAL)Color card  or Refer to client’s requirement

Surface treatment 1:

Black pole, Rough pole

Surface treatment 2:

Hot dip Galvanizing antirust.

Surface treatment 3:

Hot dip galvanizing with powder coating

Temperature range

-35 °C~+45 °C

Wind Speed:

Aganist wind pressure of 120Km/h to 180Km/h, it according

to client’s design.

Base plate mounted

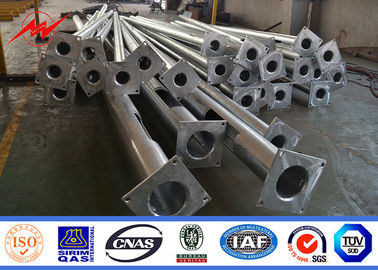

Base plate is square, octagonal or round in shape with

slotted holes for anchor bolt and dimension as per customer’s

requirement.

Ground mounted:

The length buried underground as per customer’s requirement.

Quality Control

According to ISO9001-2008 requirements.

Certificates

ISO9001-2008, SGS  Audited Supplier, The AAA grade certificate of goodwill

Other

Less land occupation & easy maintenance.



Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road





 Description of Material:
 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.

 Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road



 The information to inquiry or purchase
 -Steel pole height
 -Dimension of the flange
 -Position and dimension of the service door
 -Cross arm type and length,the position to install in the steel pole
 -The method to fix the cross arm(use bolt to connect or use one or two template to weld in the steel pole  to install the cross arm)
 -Wind speed
 -Destination port
 -Other.





 Applications:

 Highway Seamless Steel Pipe                                Park Seamless Steel Pipe
 Main Roads Seamless Steel Pipe                         Dock Seamless Steel Pipe
 Secondary Roads Seamless Steel Pipe              Stadium Seamless Steel Pipe
 Storage-yar Seamless Steel Pipe                         Overpass Seamless Steel Pipe
 Industrial-Plant Seamless Steel                            Toll-Station Seamless Steel Pipe

 Q235 Galvanized Round High Mast Street Light Pole , Outdoor Lighting Pole For Road
