Q235 Galvanized Steel Power Pole , Electrical Transmission Line Poles

China Q235 Galvanized Steel Power Pole , Electrical Transmission Line Poles supplier
Q235 Galvanized Steel Power Pole , Electrical Transmission Line Poles supplier Q235 Galvanized Steel Power Pole , Electrical Transmission Line Poles supplier Q235 Galvanized Steel Power Pole , Electrical Transmission Line Poles supplier Q235 Galvanized Steel Power Pole , Electrical Transmission Line Poles supplier

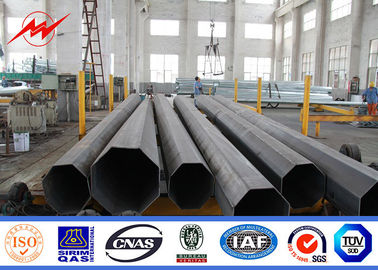

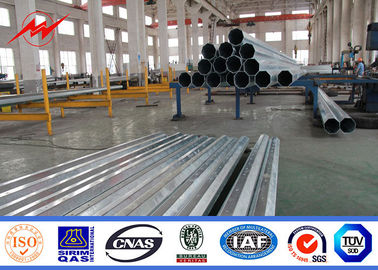

Large Image :  Q235 Galvanized Steel Power Pole , Electrical Transmission Line Poles

Product Details:

Place of Origin: China
Brand Name: Milky Way
Certification: ISO//BV
Model Number: Galvanized Steel Power Pole For Electrical Distribution Line Project

Payment & Shipping Terms:

Minimum Order Quantity: one 40HQ
Price: negotiation
Packaging Details: as per customer request
Delivery Time: usually 2 weeks after confirming
Payment Terms: T/T
Supply Ability: 300 pieces pole per day
Detailed Product Description
Material: Q345, Q235 Style: Galvanization
Design Load In Kg: 300~ 1000 Kg Appliced To 50cm From The To Pole Torlance Of Dimenstion: +- 2%
Suit For: Electricity Distribution Welding Standard: AWS D 1.1
High Light:

electric utility poles

,

steel utility poles

Galvanized Steel Power Pole For Electrical Distribution Line Project





Key Specifiction:



1. Material: Q235, Q345 or SS400 high quality Hot rolled steel or any special request is available.

2. Mounting Height:  3-20M Optional Mounting Height

3. Shape: Round conical; Octagonal conical; Straight Square; Polygonal; Tapered round

Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine

4. Brackets: Single or double brackets are in the shape and dimension as per customers requirement

5. Base plate: Base plate is square or round and size as customers' requirement

6. Base plate mounted: Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement

7. Ground mounted: The length buried underground as per customers requirement

8. Anticorrosion methods: Hot dip galvanized steel or hot dip galvanized with Plastic Powder Coating.

9. Galvanizing: Hot dip galvanization with thickness of 80-100µm average

10. Powder coating: Pure polyester powder painting, color is optional

11. Other features: Short construction cycle, less land occupation, low overall cost and easy maintenance

12. Welding: Welding confirms with international welding standard of CWB

13. Certificate:  ISO9001-2000

14. We don't have standard products, so we need customer's drawings and request.

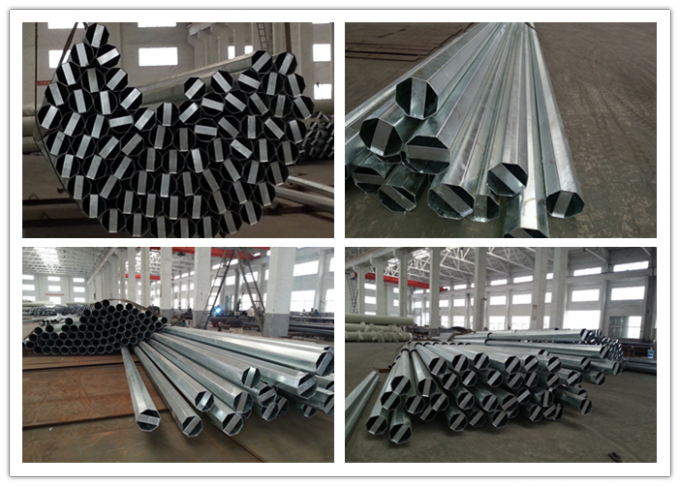

Q235 Galvanized Steel Power Pole , Electrical Transmission Line Poles 0



Our Company:



Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on









Manufacture Procedure



When purchasing the raw material (steel plate), on sheet of mill certificate from mill factory must be enclosed. When the raw material arrives at the warehouse, the quality department must take the elongation test and the chemical composition analysis to make sure the raw material have meet all the standard that the needed before production.



Cuting the raw material that have meet all the standard required into different length and width. CNC laser cutting is used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC or G-code of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas, leaving an edge with a high-quality surface finish.



Forming the cutted steel plate into the shape (circular or polygonal or other shape ) that as per specified in the drawing. This invention relates to forming devices and more particularly to devices or machines for bending longitudinally rolled sections or strips of metal stock to desired curvilinear shapes.



After molding, weld the steel plate together. Usually it is longitudinal welds. It adopts A.C.inverter control, with functions of stable running and fast traveling speed; The seam-tracking arc-guide mechanism is three-spindle system to guarantee the alignment without aberrancy; The main frame and welding machine are intergrated control, with flux auto-recovering system and it is easy to operate with high efficiency.

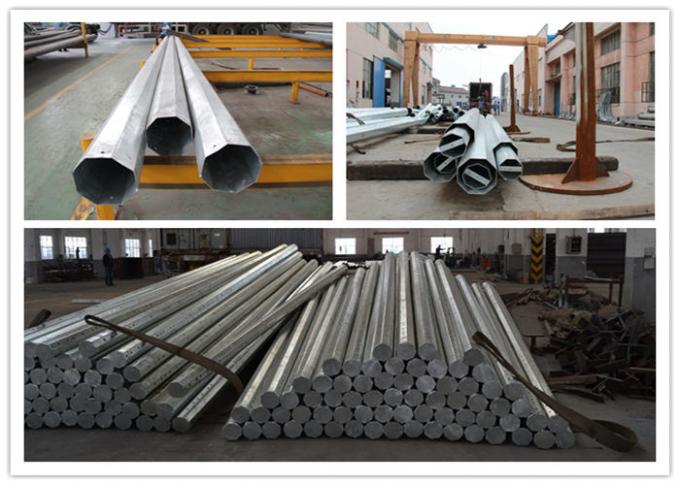

Q235 Galvanized Steel Power Pole , Electrical Transmission Line Poles 1
