Payment & Shipping Terms:
|Power:||10kv~550kv||Wind Speed:||160km/h, 30m/s|
|Thickness:||1mm To 30mm||Welding Standard:||AWS D1.1|
|Tolerance:||+/-2%||Design Load In Kg:||300~ 1000 Kg Applicated To 50cm From The To Pole|

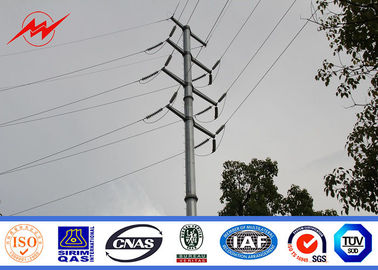

Q235B Q345B steel electric transmission power pole With Cross Arm
|Material:||high quality Q345 hot rolled steel|
|Mounting Height:||3-30m or according to the requirements of customers|
|Shape of pole:||

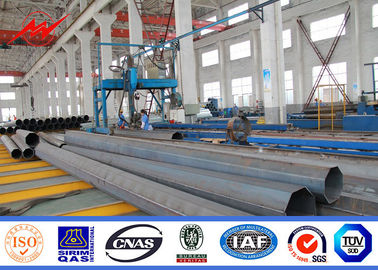

Round,conical,octagonal,square,mid hinged,polygonal shafts are made of steel sheet that folded into required shape and welded longitudinally by automaticarc welding machine
|Brackets:||Single or double brackets are in the shape and dimension as per customers requirement|
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement
The length buried underground as per customers requirement
Hot dip galvanization with thickness of 80-100µm average
|Powder coating:||Pure polyester powder painting, color is optional|
1) Steel materials conform to ASTM A36 with Q235(S235,SS400),Q345(S355JR), Q460,etc
2) Welding: Welding complies with CSA and AWS, AWS D1.1 standard.The welders have got corresponding certificate after testing and inspection.
3) Finish: Hot-dip galvanized in accordance with ASTM A123.
4) Pole Height: All available

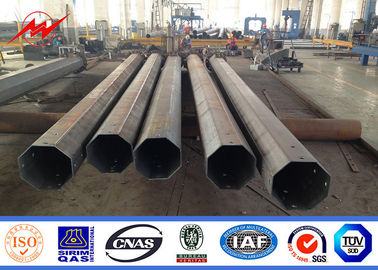

5) Pole shape: Conical, Round, Polygonal---Octagonal, Dodecagonal, Hexadecagonal, etc
6) Type: Straight Pole ,Tensile Pole ,Turn Pole (Double-loop corner pole, Single or double loops/circuit pole, single or double tensile/terminal/straight pole, etc)
7) Surface hot-dip-galvanized & painting
8) Resistant: against earthquake of 8.8 grade. Wind speed as design.
9) Quality Standard: ISO9001:2000,AAA credit rating
10) Easy install and maintenance

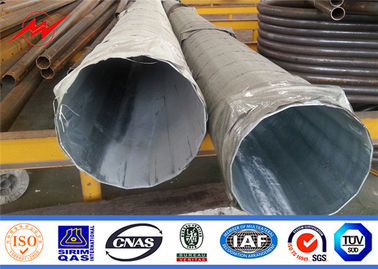

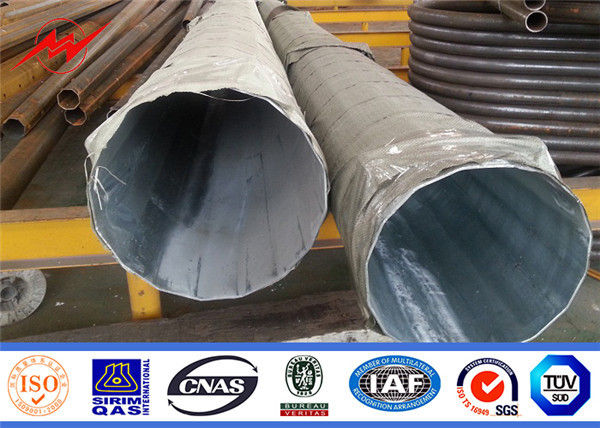

11) Packages: Normally covered by sack or as customer’s requirement.
Features & Advantage
1 High intensity, high resistance of shock or vibration
2 High efficiency up to 85%, 110lm/watt
3 Low illumination attenuation, 3% - 5% degradation/1kh
4 Long lifespan: 50,000hrs, 25 times more than normal energy-saving lamps.
5 Excellent heat dispersion, and low power consumption.
6 Easy installation, free maintanence.
7 High Power Factor: 0.85
8 No UV radiation
9 No mercury or other inorganics
10 Constant current to guarantee long life
1. Quick reply within 24 hours.
2. Convenient and smooth communication.
3. Detailed and professional specifications and guidances of products.
4. Lighting solutions by professional technician.
5. Fast &Cheap Delivery.
6. Free Light study.
7. Various Certificates.
8. Product Update.
9. OEM&ODM available.
Available Foundation Types
Anchor Bolt/Base Plate
Vibratory Steel Caisson
Galvanized per ASTM A123
Paint over galvanized,paint over black steel
12-sided pole shaft
Welded top cap
Mounting holes (to your specification if required)
M12 earth point 250mm above the nominal ground line
M24 nut 250mm above the nominal ground line (to assist lifting)
Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line
Hot dip galvanised finish
