Radio Telecommunication Steel Monopole Antenna High Mast Communication Tower

China Radio Telecommunication Steel Monopole Antenna High Mast Communication Tower supplier
Radio Telecommunication Steel Monopole Antenna High Mast Communication Tower supplier Radio Telecommunication Steel Monopole Antenna High Mast Communication Tower supplier Radio Telecommunication Steel Monopole Antenna High Mast Communication Tower supplier Radio Telecommunication Steel Monopole Antenna High Mast Communication Tower supplier

Large Image :  Radio Telecommunication Steel Monopole Antenna High Mast Communication Tower

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/
Model Number: High Mast tower

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Detailed Product Description
Product Name: High Mast Light Application: Telecommunication
Wind Speed: 160km/h Galvanization Thickness: Average Not Less Than 86μm
Thickness: 6mm,8mm,10mm Lift Time: 50 Years
High Light:

solar power light pole

,

square light poles

radio telecommunication steel monopole antenna high mast communication tower





 Specifications:





Mast’s height



15m to 35m



Shape of mast

Polygon



Shafts are made of steel sheet that folded into required shape and

welded longitudinally by automaticarc welding machine



Head frame

The style according to client's requests and dimension as per customers

requirement



Length



Within 14m once forming without slip joint





Wall thickness



4mm to 20mm



Welding

It has past flaw testing.Internal and external double welding makes the

welding beautiful in shape.

And confirms with international welding standard of CWB



Jointing

Slip Joint

Jointing of pole with insert mode, innerflange mode, face to face joint mode.

Base plate mounted



Base plate is square or round in shape with slotted holes for anchor bolt

and dimension as per customers requirement.

Ground mounted



The length buried underground as per customers requirement.



Galvanizing

Hot dip galvanization with thickness of 80-100µm average in accordance

with Chinese standardGB/T 13912-2002 or American standard ASTM A123,

IS: 2626-1985.





Powder coating



Pure polyester powder painting, color is optional according to

RAL Color stardand.

Wind Resistance



Aganist wind pressure of 160Km/h

Manufacturing



According to GB/T 1591-1994.





Quality Control



We control the quality according to the flow of ISO9001-2008. Quality is

employed at every stage of production to ensure

the product compliance to the specifications/standards. Careful inspections

are carried out by highly trained inspection engineers as per the defined

procedures from raw material stage to finished product and delivery.

Prototype assembly of towers is carried out in

the plant.



Certificates



ISO9001-2008  Audited Supplier




 Material
 Usually?Q345B/A572,minimum yield strength>=345n/mm2
 Q235B/A36,minimum yield strength>=235n/mm2
 As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

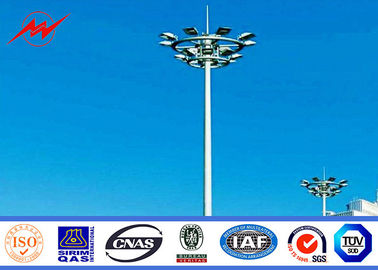

Radio Telecommunication Steel Monopole Antenna High Mast Communication Tower 0





 Feature:

 Special designed for stadium to provide high-power, large-  area lighting for facilities; Lighthouse is devided into fixed or lift, fixed poles set up an escalator inside for i  nstallation and maintenance purposes

 Light source :400w-1000w sodium light

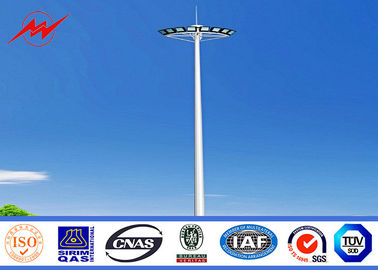

Radio Telecommunication Steel Monopole Antenna High Mast Communication Tower 1



 Installation:
 1. high-pressure sodium lamp with external ballast and Triggers installed in light tray.
 2. when replacing or repairing light and other electrical appliances, you should use special wrench to  open it.
 3. control box installed at the poles or the lower part of the poles

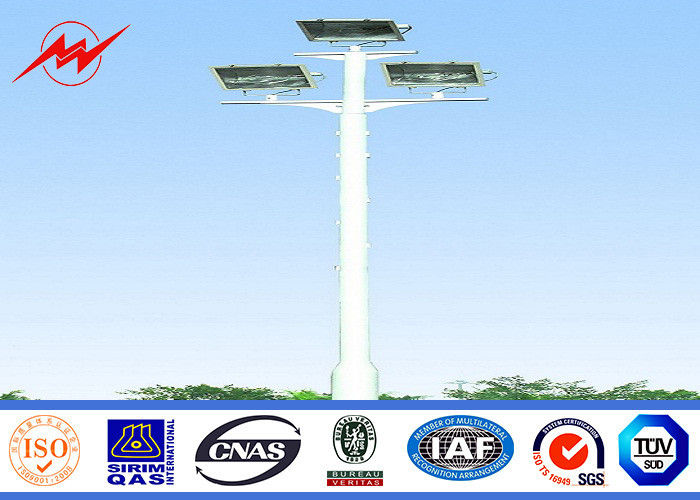

  Radio Telecommunication Steel Monopole Antenna High Mast Communication Tower 2



 Company instruction:

 JiangSu Milky Way Steel Poles Co., Ltd.was established in 1988, is located in Yixing City, Jiangsu  Province, Wan Shi Town, covering an area of 35,000 square meters, annual output value reached 200  million . We have 20 years experience in design and  production. Our main products are power pole,  communication towers, street lighting poles, steel bracket and so on. The company has strong technical  force, advanced production equipment, perfect quality management system, product quality has reached  international advanced level.
