Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission

Certification
Good quality Electrical Power Pole for sales
Good quality Electrical Power Pole for sales
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission

China Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission supplier
Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission supplier Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission supplier Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission supplier Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission supplier

Large Image :  Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Electric Power Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Electric Power Poles Application: Power Distribution
Surface Treatment: Galvanization Powder Coating Welding Standard: AWS D 1.1
Galvanization Standard: ASTM A 123 Lift Time: 50 Years
Warranty: 15 Years

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission





 Specification:



series Outside Diametar Wall Thicness Plain and Tubes
mm Min. mm /SWG Kg./M Mtrs./Ton
15 L 21.3 2 0.947 1058
      M 2.6 1.21 826
      H 3.2 1.44 694
20 L 26.9 2.3 1.38 725
      M 2.6 1.56 641
      H 3.2 1.87 535
25 L 33.7 2.6 1.98 505
      M 3.2 2.41 415
      H 4 2.93 341
32 L 42.4 2.6 2.54 394
      M 3.2 3.1 323
      H 4 3.79 264
40 L 48.3 2.9 3.23 310
      M 3.2 3.56 281
      H 4 4.37 229
50 L 60.3 2.9 4.08 245
      M 3.6 5.03 199
      H 4.5 6.19 162
65 L 76.1 3.2 5.71 175
      M 3.6 6.42 156
      H 4.5 7.93 126
80 L 88.9 3.2 6.72 149
      M 4 8.36 120
      H 4.8 9.9 101
90 L 101.6 3.6 8.7 115
      M 4 9.63 144
      H 4.8 11.5 87
100 L 114.3 3.6 9.75 103
       M 4.5 12.2 82
      H 5.4 14.5 69
110 L 127 4.5 13.6 74
       M 4.8 14.5 69
      H 5.4 16.2 62
125 L 139.7 4.5 15 67
       M 4.8 15.9 63
      H 5.4 17.9 56







 Description:

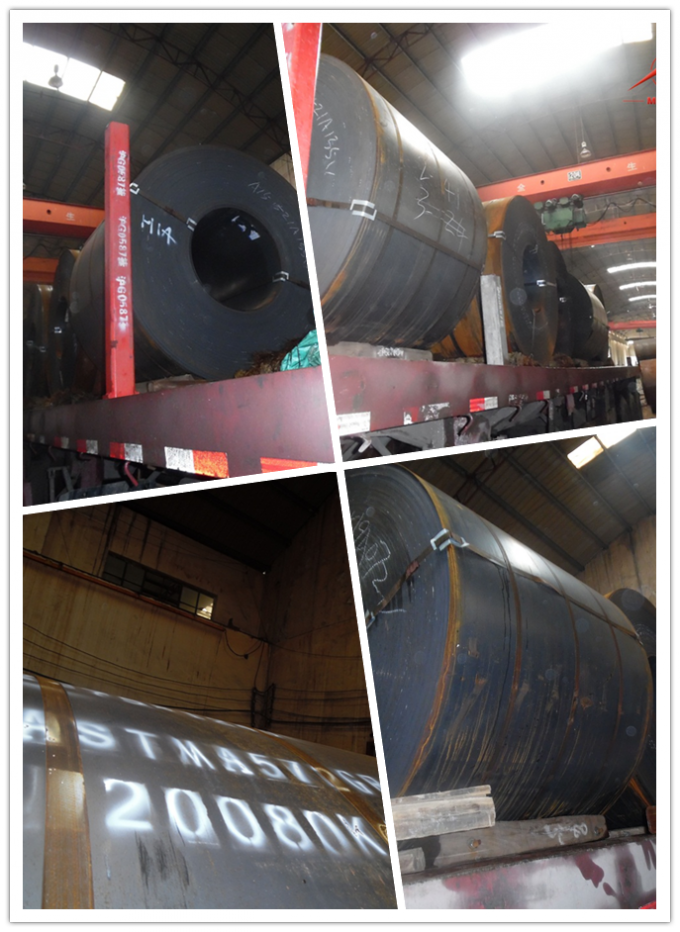

 The material we use is from Baosteel.According to the different strength request,we can use the  Q235,Q345 and GR65.The strength of GR 65 is best and Q235 is lowest.
 For the street light pole,we usually choose Q235 and Q345.
 The good quality of steel material guarantee the good quality of the finished steel pole.

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission

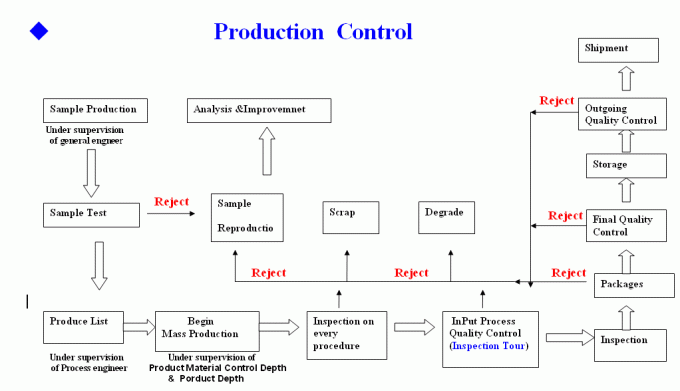

 Production Flow:
 The production process:Row material test → Cutting →Molding or bending →Welding (longitudinal  )→Dimension verify →Flange welding→Hole drilling →Calibration → Deburr→Galvanization or powder  coating ,painting →Recalibration →Thread →Packages

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission





 More Photos:

 Round 15M Galvanized Steel Electric Power Poles 3.5mm for Power Transmission
