Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles

Certification
China Jiangsu milky way steel poles co.,ltd certification
China Jiangsu milky way steel poles co.,ltd certification
Dear Sirs, Hereby we confirm that JiangSu MilkyWay steel poles co., ltd is our partner for several years. Since that time this company has shown itself as reliable supplier of qualitative products.We also would like to note that they provide top level service and all kinds of support.We plan to continue our fruitful cooperation co-operation for many years more.

—— Abacus

We do hereby certify the 69 KV transmmision line steel pole(from 25ft to 90 ft ) manufacuterd by Jiangsu Milky Way Steel Poles Co., Ltd since 2010.We are satisfied with their quality,service and the ways and attention they showed toward our order.

—— National Electricity Company

I'm Online Chat Now

Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles

China Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles supplier
Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles supplier Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles supplier Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles supplier Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles supplier

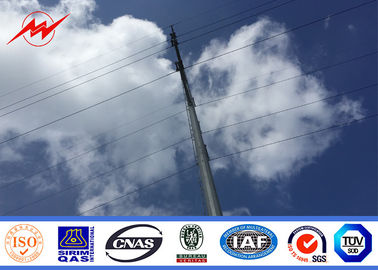

Large Image :  Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Milky Way
Certification: SGS/BV/ISO9001
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Naked Package or customerized
Delivery Time: 10-30 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 30,000 Tons per month
Contact Now
Detailed Product Description
Product Name: Steel Utility Pole Application: Street Way,highway,airport,Stadium
Shape: Round,Conical,Octagonal Height: 4M-30M
Material: Steel,Q235,Q345,Gr65 Thickness: 2.5mm-16mm
Surface Finished: Hot Dip Galvanized Standard: SGS/BV/ISO9001
High Light:

metal utility poles

,

electric telescoping pole

Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles



Product Description:



Part No

Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles

Height

6m to 15m

Suit for

Airport,seaport,plaza,stadium,square,highway,street way

Shape

Conoid,multi-pyramidal,columniform,polygonal,conical

Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400,

SS490, to ST52-

Lamp Power

20W-400W(HPS/MH)    220V(+-10%)/50HZ

Tolerance of the dimension

+-2%

Optical assembly of lighting fixture

IP65

Electroshock resistant

protective grade

Grade I

The casing anti-corrosion performance

Class II

working atmosphone of lighting

 fixture

-35 ℃ to +45 ℃

Surface treatment

hot dip galvanzied following ASTM A123,Color polyester power

or any other standard

Joint of poles

insert mode,innerflange mode,face to face joint mode

Design of pole

against earthquake of 8 grade

Wind speed

160 km/hour

Minimum yield strength

355 mpa

Minimum ultimate tensile strength

490 mpa

Max Ultimate tensile strength

620 mpa

Standard

ISO9001

Length of per section

within 14m once forming without slip joint

Welding

flaw testing,internal and external double welding makes the welding

better

Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness

1mm to 15mm

Production Process

Raw material test - cutting - molding or bending - welding(longitudinal) -

dimension - Packages

Packages

Normal cover by mat or straw bale at the top and bottom,anyway also

according to customer request

Style

Size and styles are variable as per customer request

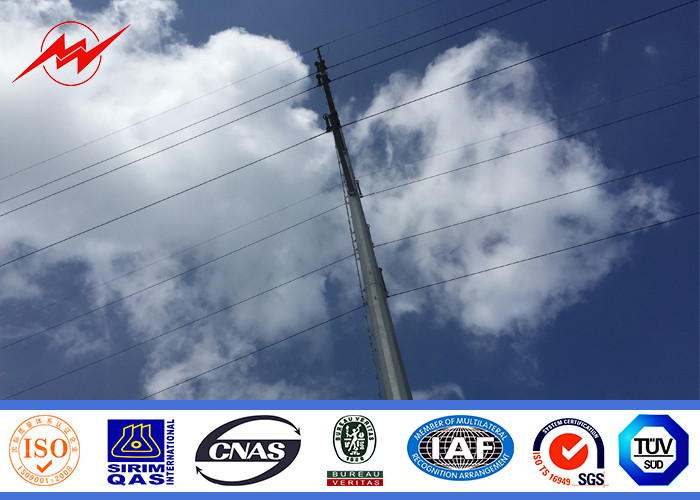

Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles 0



Package

  1. Package
    1. Normal:Cover by Mat or Straw bale at the top and bottom and wood between the poles to avoide the damage on the galvanization of thepole.
    2. Customized Design is available.
    3. Container:40HQ,40GP,20GP

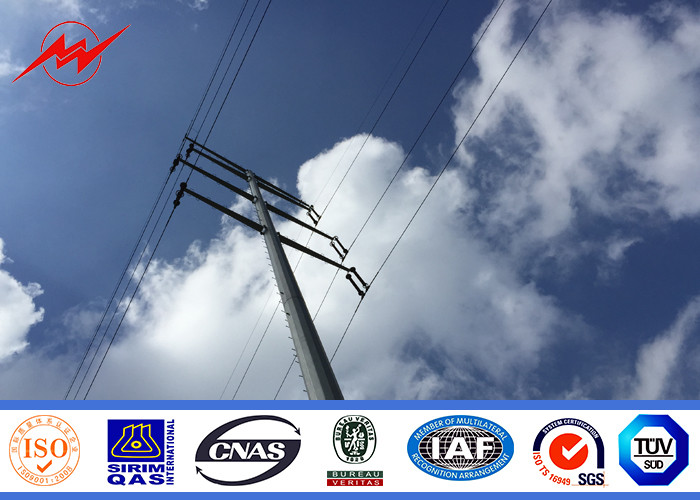

Round Hot Dip Galvanized Steel Utility Pole , 6M - 12M Metal Lighting Poles 1





Product Material:


All of our material are purchased from famous mill factory to assure the quality
1. A mill certificate issued by the mill factory with stamp and signature must be provided before unload the material in our factory ,otherwise we have our reason to refuse the material .
2. Before put into production ,all the material must pass the chemical and physical analysis to make sure that they have meet the requested strength and component.
Inspection


To assure our products qualified ,we take steps as follows :


1. Management team : We have employ the foreign export to take chaege of the overall managemnt ,especailly the technical managemnt and quality management .

2. Introducing ISO management ,We are awared ISO 9001:2008 certificate . .
3. QC Inpection:It is our company policy that all the finish product should be inspected by our specialzed QC in every manufacure steps and beofore every shipment




Company Introduction


Estbilsed in 1991,Jiangsu Milky Way Steel Poles is located in Wuxi,East of China ,near one of the largest sea port of China ,Shanghai,Port .
Our Products have been widely used in the power transmsion ,signal transmission and ligting for street ,road ,square ,palaestra.and so on
We have plenty of export experience . Since our first overseas order from Pakstan in 1991 of 132 KV transmission poels ,our products have been deliveried to more than 70 contries and areas ,including America,Australia ,Russia ,Genmery ,Span,Philippines ,Malaysia and so on-  NEA 220KV 30ft electric lighting poles factory
