Round / Octagonal 8m Hot Dip Galvanized Street Light Poles With 30w LED

China Round / Octagonal 8m Hot Dip Galvanized Street Light Poles With 30w LED supplier
Round / Octagonal 8m Hot Dip Galvanized Street Light Poles With 30w LED supplier Round / Octagonal 8m Hot Dip Galvanized Street Light Poles With 30w LED supplier Round / Octagonal 8m Hot Dip Galvanized Street Light Poles With 30w LED supplier Round / Octagonal 8m Hot Dip Galvanized Street Light Poles With 30w LED supplier

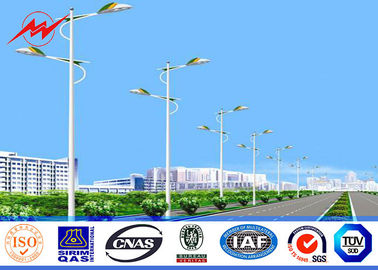

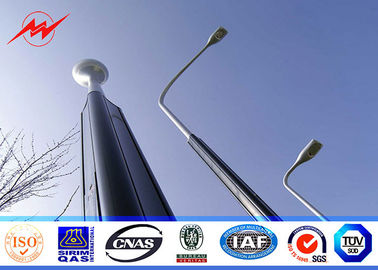

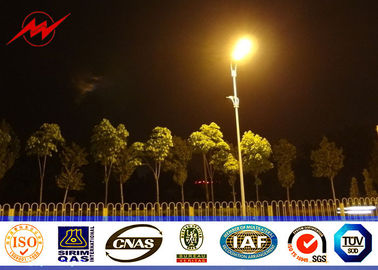

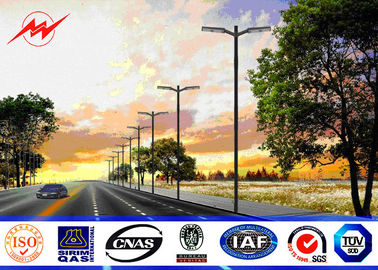

Large Image :  Round / Octagonal 8m Hot Dip Galvanized Street Light Poles With 30w LED

Product Details:

Place of Origin: Yixing,Jiangsu,China
Brand Name: Milky Way
Certification: ISO9001
Model Number: Street Light Poles

Payment & Shipping Terms:

Minimum Order Quantity: 1 Poles
Price: Negotation
Packaging Details: Naked Package or customerized
Delivery Time: 10-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 30,000 Tons per month
Contact Now
Detailed Product Description
Thickness Of Galvanizing: 60-80microns Painting Color: Black And White Color
Light Wattage: 30w To 120w Arm Type: Single Arm And Double Arms
Surface Treatment: Galvanization And Powder Coating Pole Shape: Round,octagonal
Average Gavanzation Thickness: According To The Pole Thickness
High Light:

hot dip galvanized street light pole

,

hot dip galvanized light pole

,

8m galvanized street light pole

8m hot dip galvanized street light poles with 30w LED light for street



Quick Details for Street Lighting Pole



Item No

 8M hot dip galvanized street light poles

Height

 8M

Thickness

According to the customer's design

Shape

Conical,round,octagonal,dodecagon

Material

Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

Q460, minimum yield strength>=460n/mm2

Wind Design

32 m/s

Suit for

street way,Airport,seaport,plaza,stadium,square,highway



Applications
The Avenue range of tapered round and tapered octagonal poles are the standard variety of poles for Street Lighting with both single and double outreaches. The Avenue range is ideally suited for residential subdivisions, commercial developments, recreational pathways and parks.



Prodcut Process



Round / Octagonal 8m Hot Dip Galvanized Street Light Poles With 30w LED 0



MATERIAL



Material used to fabricate the pole components will be in accordance of international standards and as per the project specifications.

Main Material is Q235,Q345,Gr65 or as specified in the customer specification.



FINISHING



Shaft, Base plate, Arm Bracket and other accessories are hot dip galvanized according to BS EN 1461 and its recent revisions, the minimum average coating thickness is according to BS EN 1461, or as per the customer requirements, but not more than 70 microns average.



No welding, cutting or drilling is done after galvanizing.



The anchor bolts including nuts and washers are rough black or hot dip galvanised according to ASTM A 123 as per customized requirement.

Round / Octagonal 8m Hot Dip Galvanized Street Light Poles With 30w LED 1



SHAPE



1.Height:The street lighting Poles of heights from 4m up to 20m covering almost all of the outdoor street lighting requirements, are usually made out of tapered steel shafts with octagonal or conical shape, with dimensions complying with the design structural analysis, international standards requirements, and as per customer requirements.



2.Pole Sections: Only poles with heights up to 12 meters are made from one shaft segment. Poles up to 20m in height are made from two segments with minimum overlap length of 1.5 times the diameter of bottom of the upper segment.



3.Shafts: Shafts are made from steel sheet folded to the required shape and welded longitudinally by automatic arc welding machine.



4.Base Plate: Base plate is square in shape with slotted holes suitable for anchor bolts. Base plate is welded to the bottom of the shaft by double fillet weld, according to International standards.



5.Brackets: The brackets to carry the light fittings are in shape and dimensions complying with the customer requirements and the specifications of the light fittings. Shaft top is equipped with nuts welded to the shaft  as shown on our drawings.



6.Anchor Bolt: Anchor bolts to fix the base plate to the concrete foundation are supplied with the required nuts and washers as per the structural analysis.



7:Service Door: Door opening size and location is as per the customer requirements and its complying with the dimensions of the cut-out. Door opening is reinforced to maintain shaft strength.



8.Lamp:LED light is available or specified in the customer requirement.

Round / Octagonal 8m Hot Dip Galvanized Street Light Poles With 30w LED 2



Company:



Jiangsu Milky Way specialize in offering a wide range of Octagonal Poles that is used in street light poles. These poles are fabricated using high grade raw material like steel Q235 and latest technology as per the international quality standards. Moreover, these are available in customized options to suit the varied requirements of the clients.
