SGS Certification 22m 30KN Gr65 Steel Power Pole With 450mm Flange size

China SGS Certification 22m 30KN Gr65 Steel Power Pole With 450mm Flange size supplier
SGS Certification 22m 30KN Gr65 Steel Power Pole With 450mm Flange size supplier SGS Certification 22m 30KN Gr65 Steel Power Pole With 450mm Flange size supplier SGS Certification 22m 30KN Gr65 Steel Power Pole With 450mm Flange size supplier

Large Image :  SGS Certification 22m 30KN Gr65 Steel Power Pole With 450mm Flange size

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Tubular Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Gr65 Steel Power Pole Certification: ISO9001 / BV / SGS
Torlance Of The Dimenstion: +- 2% Flange Size: 450mm
Wall Thickness: 3mm Warranty: 15 Years
High Light:

floodlight pole

,

commercial light poles

 SGS Certification 22m 30KN Gr65 Steel Power Pole With 4mm Wall Thickness





 Descripition of material:

 The material is in accordance with NF EN 10025
 Standard and NF EN 10149 Standard,it has the following property.
 -Yield Strength=355N/mm2
 -Toughness remains the same under 20 degrees below zero.
 -Galvanization is in accordance with NFA35503 Standard Class 1.

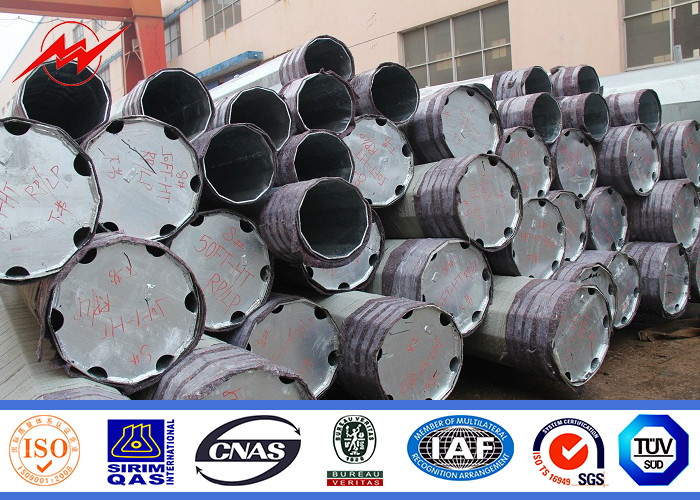

SGS Certification 22m 30KN Gr65 Steel Power Pole With 450mm Flange size 0



 Galvanization
 Standard:NFA91121
 Average thickness of the galvanization:Not less than 86μm.

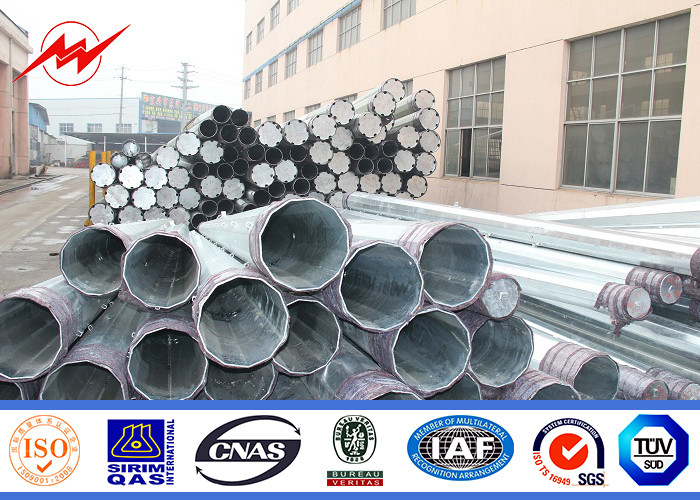

SGS Certification 22m 30KN Gr65 Steel Power Pole With 450mm Flange size 1





 Manufacture Tolerance
 -Component Length:-25mm to 75mm
 -Straightness:2mm/m
 -Twisting degree:1°per 3 meters length
 -Ovalisation:Maximum is 3%
 -The average diameter:+/-0.5%
 -Slip length:+/-150mm





 Specification:



Types

Length

45ft 50ft 55ft 60ft 65ft 70ft
13.75m 15.25m 16.80m 18.30m 19.85m 21.35m
B ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 345 370 395 415 435 455
Thickness (mm) 6 6 6 6 6 6
E ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 545 585 625 660 700 740
Thickness (mm) 6 6 6 6 6 6
C ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 600 645 690 730 770 805
Thickness (mm) 6 6 6 6 6 6
D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 680 730 725 765 755 790
Thickness (mm) 6 6 7 7 8 8
HS ( 0°-2°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 340 360 385 400 420 440
Thickness (mm) 6 6 6 6 6 6
HT ( 2°-15°)
Top diameter (mm) 200 200 200 200 200 200
Butt diameter (mm) 485 520 550 580 615 645
Thickness (mm) 6 6 6 6 6 6
3T ( 15°-30°)
Top diameter (mm) 250 250 250 250 250 250
Butt diameter (mm) 520 540 565 595 615 640
Thickness (mm) 6 6 6 6 6 6
3D ( 30°-90°)
Top diameter (mm) 300 300 300 300 300 300
Butt diameter (mm) 585 620 650 680 715 765
Thickness (mm) 6 6 6 6 6 6





 Quality Control
 We strictly follow the standard of ISO9001-2008. Quality is in the first place at every stage of production  to ensure the product compliance to the specification/standards. Careful inspections are carried out by  highly trained  inspection engineers during every procedure from raw material stage to finished product  and delivery.

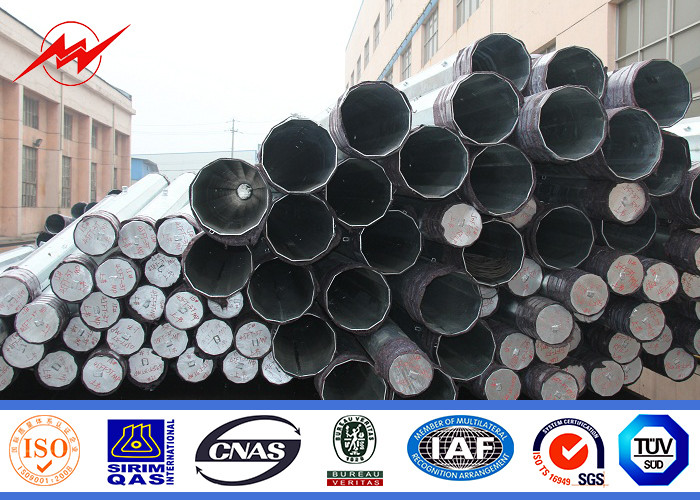

SGS Certification 22m 30KN Gr65 Steel Power Pole With 450mm Flange size 2





 Company Introduction:
 Jiangsu Milky Way Steel Poles which established on 1991 is located in Wuxi,East of China ,near one of  the largest sea port of China ,Shanghai,Port .
 Our Company has 24 years experience on producing the steel poles including the transmission power  pole,street light pole,high mast pole and so on.
 We exported to oversea countries since 1991 and our products have been delivered to more than 70  countries and areas ,including America,Australia ,Russia ,Germany ,Span,Philippines ,Malaysia,Africa  and so on.
 We are the supplier of many big project in many countries,like the street light pole of Dubai Tower.the  high mast pole for Sochi Winter Olympic Game and so on.
