Sided Multi Sided 8m 25 KN Metal Utility Poles For Overhead Electric Power Tower

China Sided Multi Sided 8m 25 KN Metal Utility Poles For Overhead Electric Power Tower supplier
Sided Multi Sided 8m 25 KN Metal Utility Poles For Overhead Electric Power Tower supplier Sided Multi Sided 8m 25 KN Metal Utility Poles For Overhead Electric Power Tower supplier Sided Multi Sided 8m 25 KN Metal Utility Poles For Overhead Electric Power Tower supplier Sided Multi Sided 8m 25 KN Metal Utility Poles For Overhead Electric Power Tower supplier

Large Image :  Sided Multi Sided 8m 25 KN Metal Utility Poles For Overhead Electric Power Tower

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Steel Utility Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Steel Utility Pole Application: Overhead Electric Power Tower
Pole Shape: 16 Sides Welding Standard: AWS D 1.1
Surface Treatment: Galvanization Dimenstion Torlance: +- 2%
High Light:

metal utility poles

,

electrical utility poles

16sides multisides 8m 25KN Steel Utility Pole for overhead electric power tower with single steel cross arm

Specifications:



Sub Transmission  Range
Product Code Length ULS Pole Dimension
Top Base
18.5M 24KN 18.5M 24KN 210 660
18.5M 40KN 18.5M 40KN 260 730
21M 40KN 21M 30KN 220 697
21M 40KN 21M 40KN 260 795
24M 30KN 24M 30KN 220 755
24M 40KN 24M 40KN 300 760
Note:Tapered 12-sided, direct buried


Production Control
 Sided Multi Sided 8m 25 KN Metal Utility Poles For Overhead Electric Power Tower 0


Features:



Enhances both electrical and mechanical performance

Well suited for terminal connections on high voltage side of a transformer

Accurate dimension and resistivity to adverse conditions

High tensile strength with optimum tolerance capacity



Sided Multi Sided 8m 25 KN Metal Utility Poles For Overhead Electric Power Tower 1



Key Benefits



Lightest poles across the full range of length and tip loads

Impervious to insects and rot

Non-combustible with proven bush fire performance

Tapered design enables self-cleaning during rainfall

Fully recyclable

Self-bonding

PLS Pole data available

 Design:



Sided Multi Sided 8m 25 KN Metal Utility Poles For Overhead Electric Power Tower 2

Standard Accessory
-Top plate
-Base plate
-Bottom strip
-Standard hole
-Climbing rung
-Anchor bolt
-Bitumen protection
-Painted marking
-Removable ladder

Available Foundation Types
Direct Embedment
Anchor Bolt/Base Plate
Vibratory Steel Caisson

Available Finishes
Galvanized per ASTM A123
Paint over galvanized,paint over black steel
Powder Coating

Standard Features

In-Ground Mounted:
12-sided pole shaft
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the nominal ground line
M24 nut 250mm above the nominal ground line (to assist lifting)
Additional in-ground corrosion protection 200mm above to 400mm below the nominal ground line
Anti-sink straps
Hot dip galvanised finish

Base Plate Mounted:
12-sided pole shaft (40kN to 80kN)
16-sided pole shaft (100kN & 120kN)
Welded top cap
Mounting holes (to your specification if required)
Identification plate
M12 earth point 250mm above the pole base
Two lifting gussets on the base plate
Anchor bolts, templates, nuts & washers
Hot dip galvanised finish

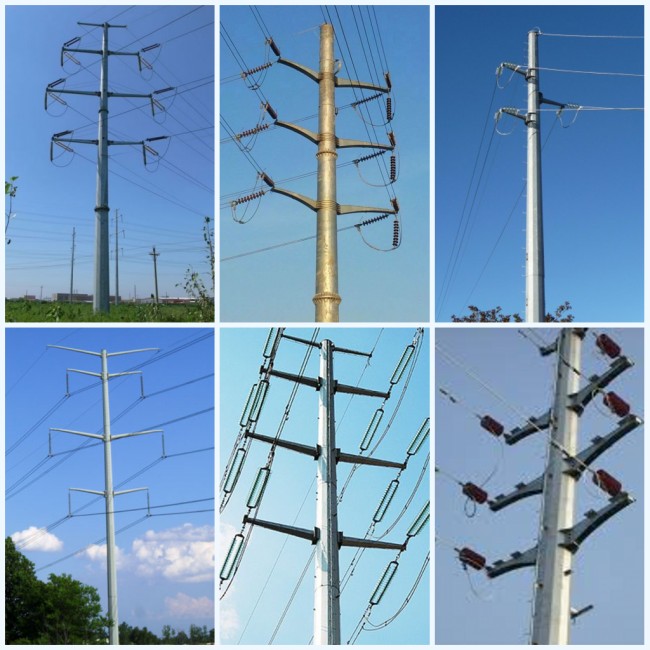

Transmission Structures



Steel Tapered Poles for Transmission Structures

H-frames Power Pole DesignsVariety of Finishes for and Utility Pole Structures

Smaller Diameter Light Steel Structures (Sidewalks and Tight Right-of-Ways)

Custom Design Matching to Wood Pole Classifications

Custom Pole Designs

Wood equivalent Steel Power Pole Configuration for Short Lead Times or Repair Jobs

Antenna Tower Structures

Patented Splice Joints for Steel Structures

Traditional Flange Splices for Steel Structures

Cell Tower Structures

Lattice Design Structures

I-Beam Structures

Pre-Drilled Power Pole Apparatus Using Plasma Burning Process

Self-Conducting Stainless Steel Utility Poles for Grounding Purposes

Hardware for Light Poles

Pre-drilled Holes for Safety Steps and Equipment

No Extra Welding is Needed for Conductor Hookups to Attach Transmission Lines

Single Circuit Line Hookup for Utility Pole Structures

Double Circuit Line Hookup for Utility Pole Structures

Shield Wire Guards to Protect Against Lightning

Substation Structures



Tapered Tubular Substation Structures

Steel Substation Structures

Custom Substation Designs

Closed Section Tubes

I-Beam Structures

Lattice Structures

Steel Structures with Higher Translational Stiffness

Low Profile Aesthetically Pleasing Structures

Higher Terminal-Stop/Take Off Angles

Higher Tension Wires Due to Design

Substation Structures Exceed Wood Pole Standards
