Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole

China Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole supplier
Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole supplier Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole supplier Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole supplier Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole supplier

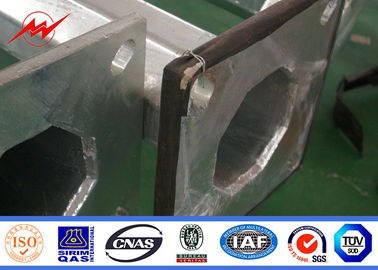

Large Image :  Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole

Product Details:

Place of Origin: China
Brand Name: MilkyWay
Certification: ISO9001/BV/SGS
Model Number: Galvanized Steel Pole

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: As customer request
Delivery Time: 20 working days after received your payment
Payment Terms: T/T, L/C at sight
Supply Ability: 300pcs per day
Contact Now
Detailed Product Description
Product Name: Galvanized Steel Poles Welding Standard: AWS D 1.1
Material: Q345 Lift Time: 15 Years
Corrosion: Anti-corrosion Pole Color: Silver

 Single Arm 3mm Galvanized Steel Poles One Section for Highway Lighting

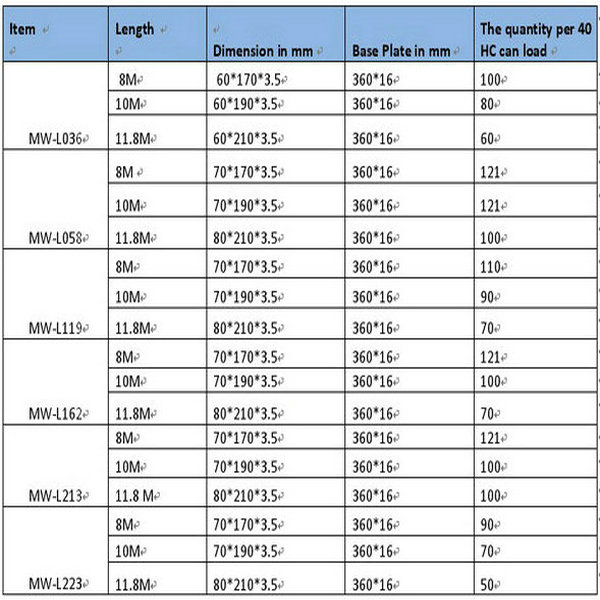

 Specifications:





Type

Street Lamp pole, lamp post . Lamp column

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power

or any other standard by client required.

Standard

Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

Suit for

Highway
Roadway
Residential subdivisions
Commercial development

Option

Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.

Production Process

Raw material test → Cutting →Molding or bending →Welidng (longitudinal )

→Dimension verify →Flange welding →Hole drilling →Calibration →Deburr

→Galvanization or powder coating ,painting →Recalibration →Thread→Packages

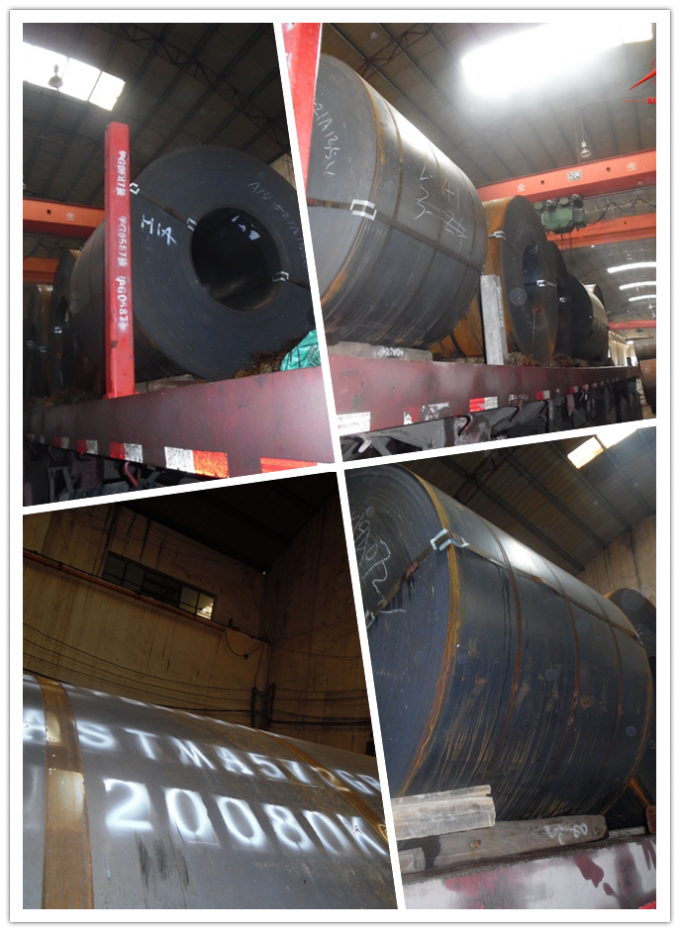

 Descripition of material:


 1. Poles are made by the high-quality metal plants,which were molded into the multi-row cone-  shaped vertical steel barwith hot galvanized anti-corrosion treatment
 2. Light plate frame is made by high-quality stainless steel
 3. Fastened bolts and nuts of stainless steel

 Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole





 Design and Detail
 Lofting and design software :We have Seamless Steel Pipe design software which can help us design all  kinds of steel pole ,at the same time ,the TMA and LMA are adopted by us to provide the design the  drawing accurately.

 Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole

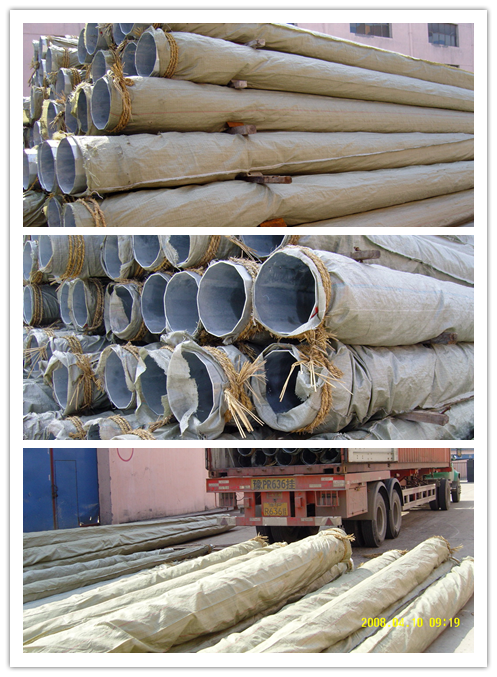

 Package:

 Single Arm 3mm Galvanized Steel Poles , Anti - Corrosion Outdoor Light Pole
